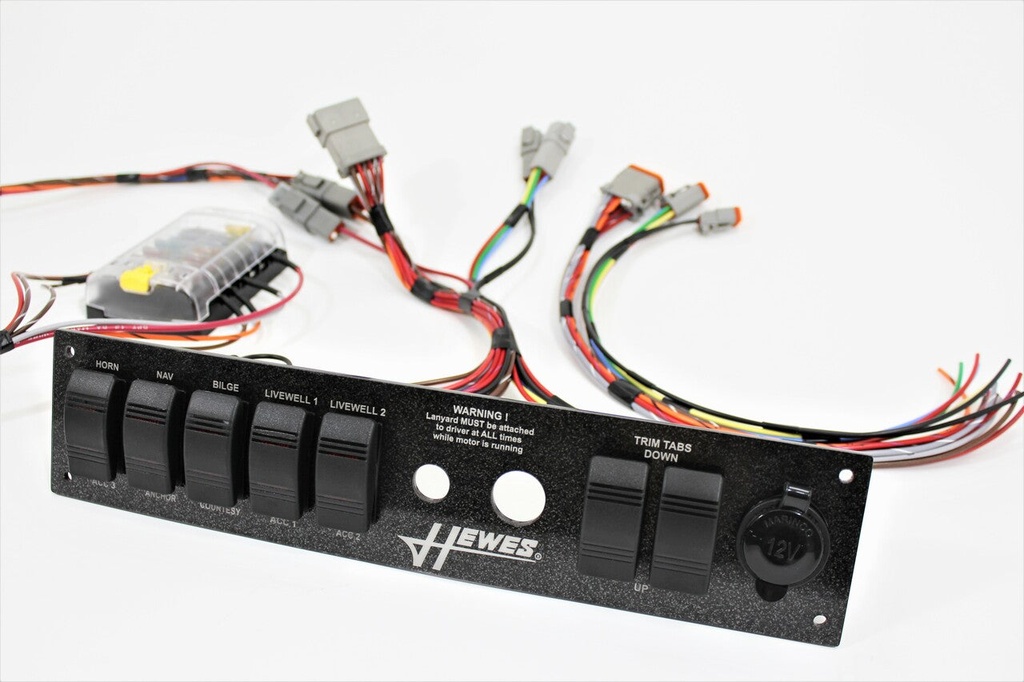

Fully wired Replacement Switch/Instrument Panel - Hewes RF18
SUR-000009-1791788
Please click here see our Library/Tech Center for videos, articles, and FAQ's
- Boat Manufacturer: Hewes
- OEM Part#*: -
- Fits Models*: - 18 Redfisher* and others with 14" x 3" panel
- Construction: Acrylic 3/16"
- Accessory Panels Available:
- Switch Kit Available: Included
* May fit other models/years, Part# for search/reference only
SPECIFICATIONS:
HISTORY: The original switch panels were offered with 6, 7, or 8 switch positions. There were many configurations and a few different size panels for the Hewes boats. Some had a switch position for "Choke" which is now obsolete or can be handled through a keyswitch. The newer models have a switch position for "Horn" to more closely follow ABYC and NMMA recommendations.

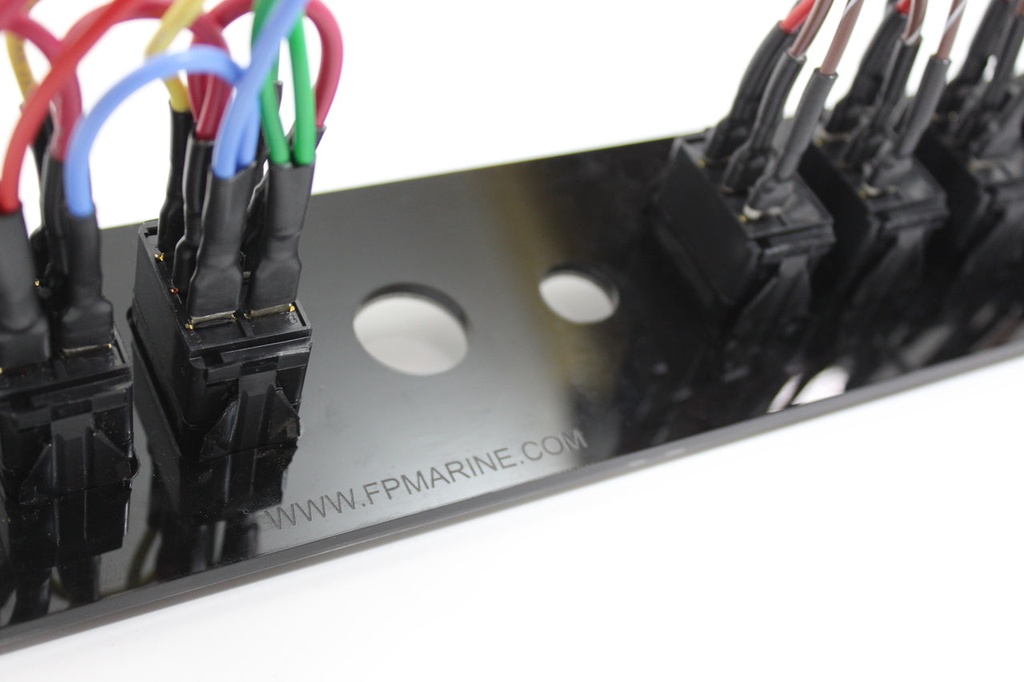

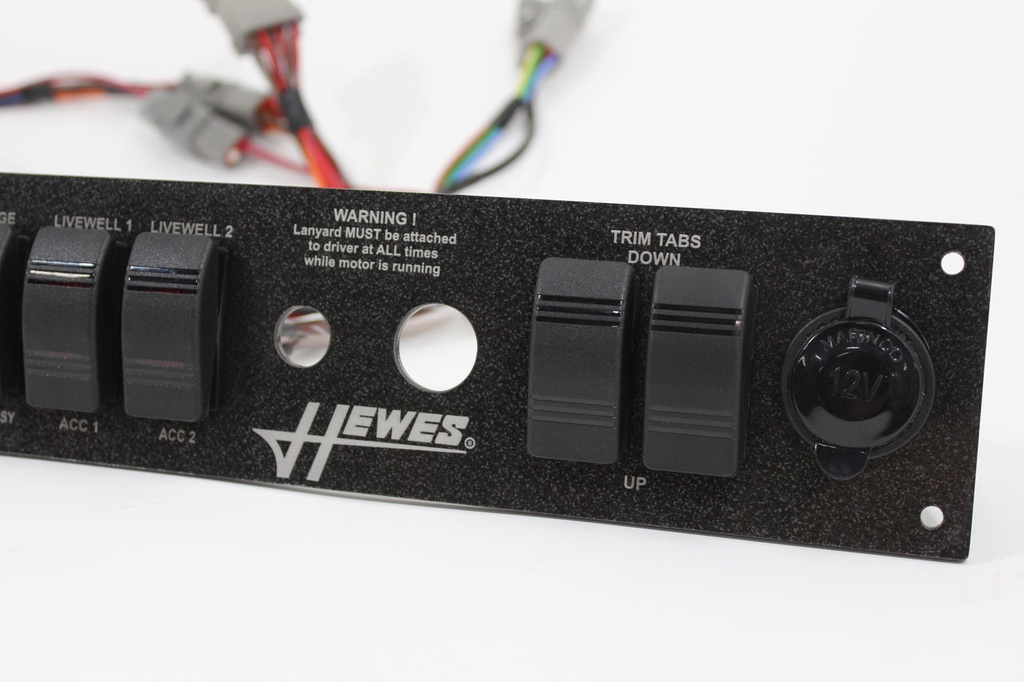

This upgraded 7 position switch panel is designed to replace any one of the factory original panels that measure approximately 14" x 3"and give increased quality and functionality!

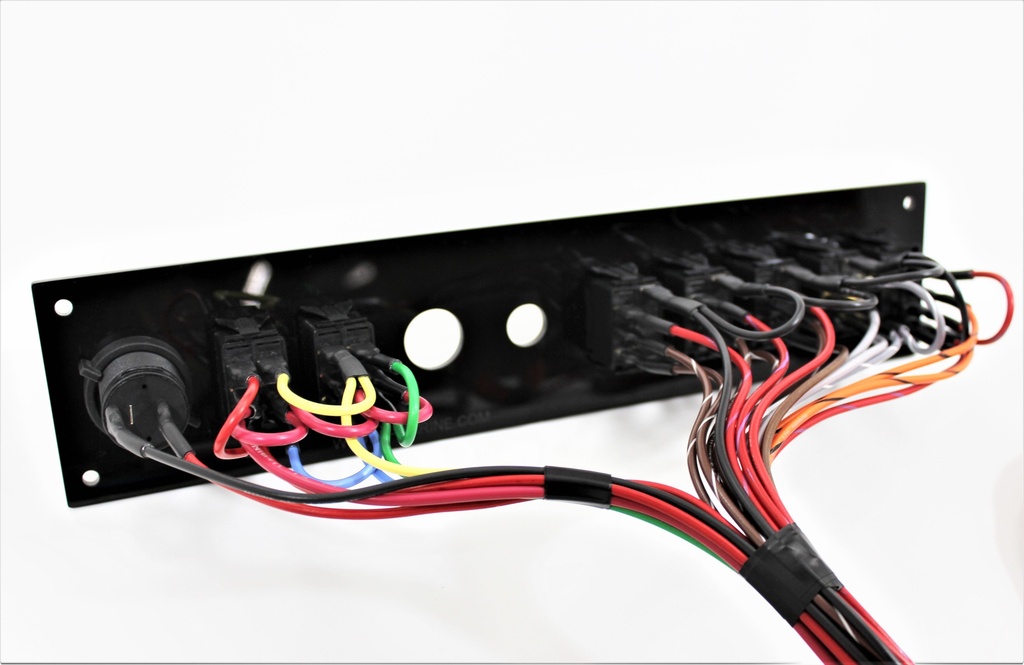

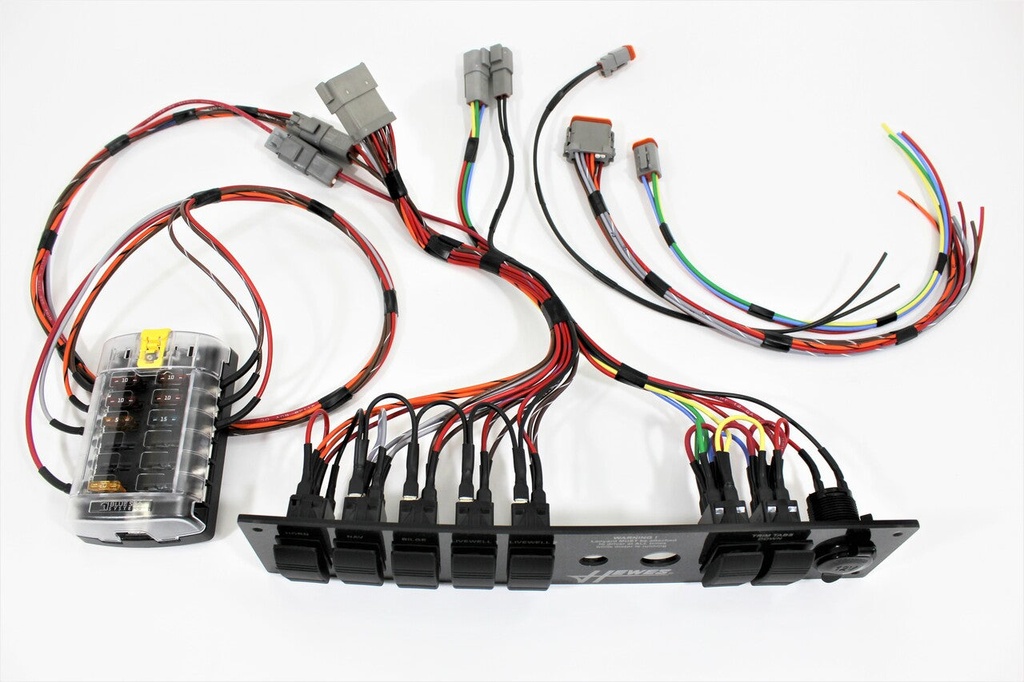

This is a complete replacement system. You provide the power feed from your batteries and main circuit breaker. Our fuse block is fully harnessed to supply the switch panel with power. The harness leaving the switch panel is labeled and you simply splice to the wires that lead to each accessory. High quality Deutsch connectors make removal a breeze.
FEATURES:
- Complete system.
- Marine grade tinned copper 14ga. wire and heat shrink connections.

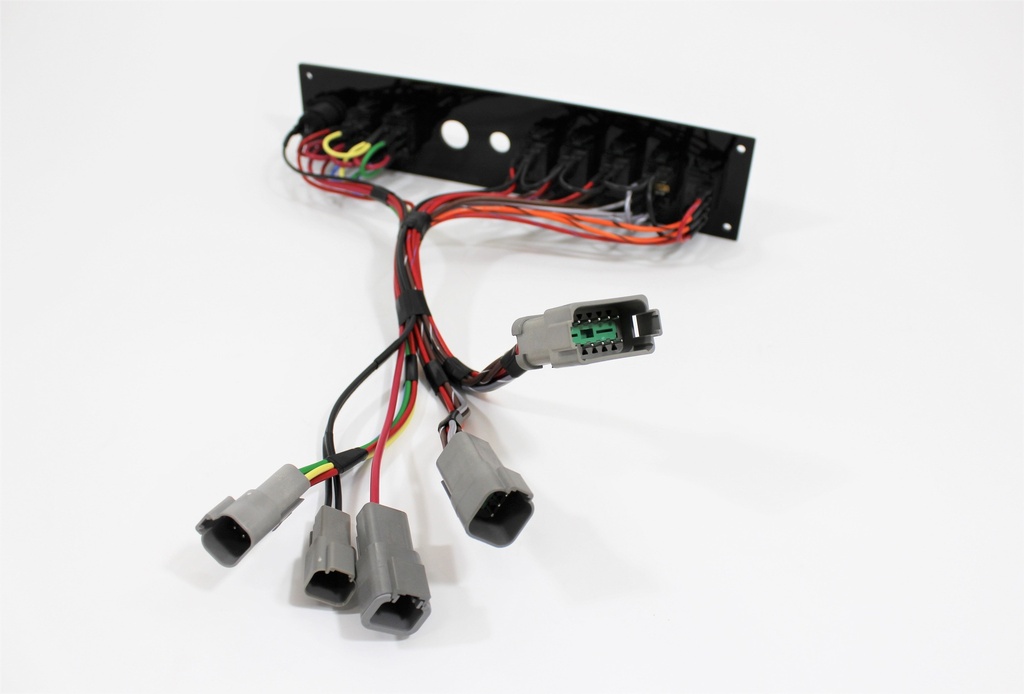

- Genuine Deutsch connectors for convenient quick disconnect points.
- Genuine Carling Switches.
- Genuine Molex terminal connections.

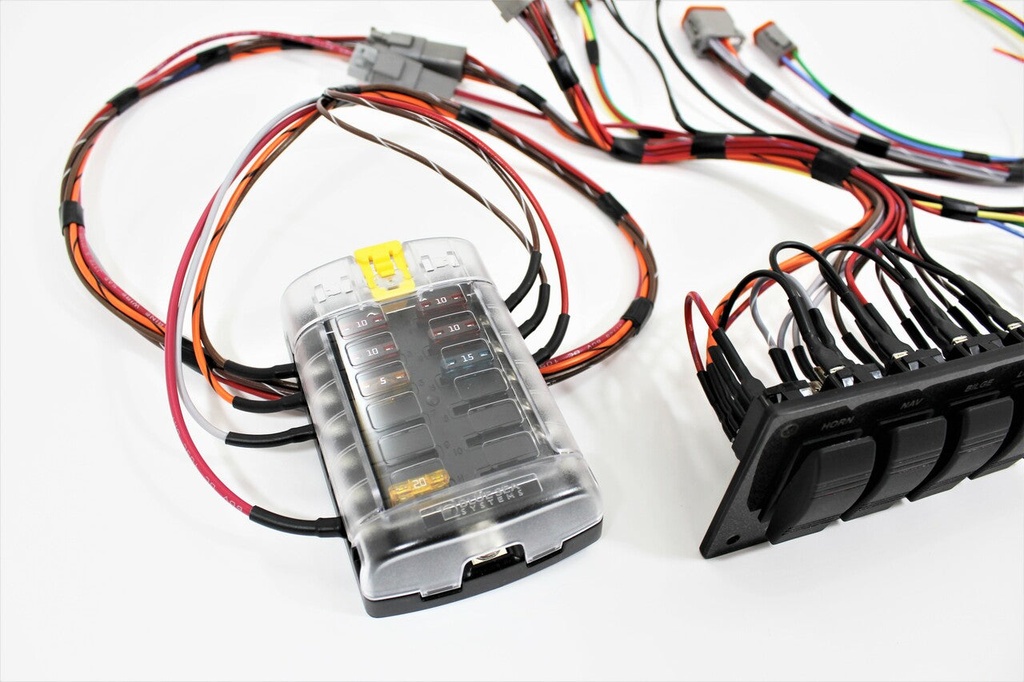

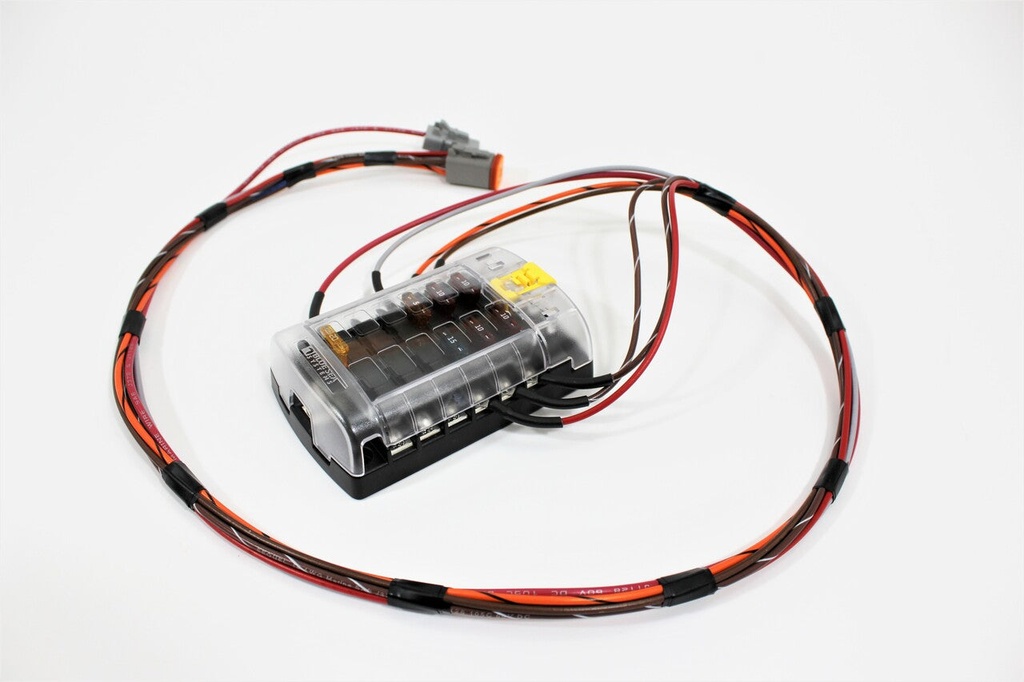

- Blue Seas heavy duty 12 port fuse block.

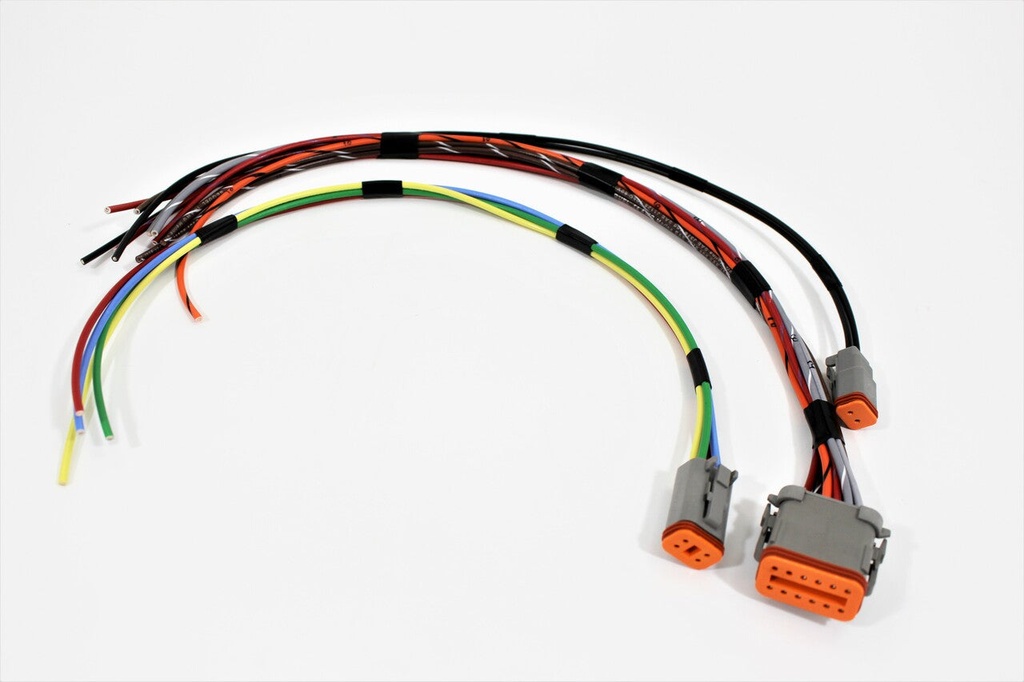

- Color coded and labeled pigtail wires to connect to your existing boat harness.
- Includes genuine Molex Permaseal heat shrink butt connectors for your splices to your existing harness.

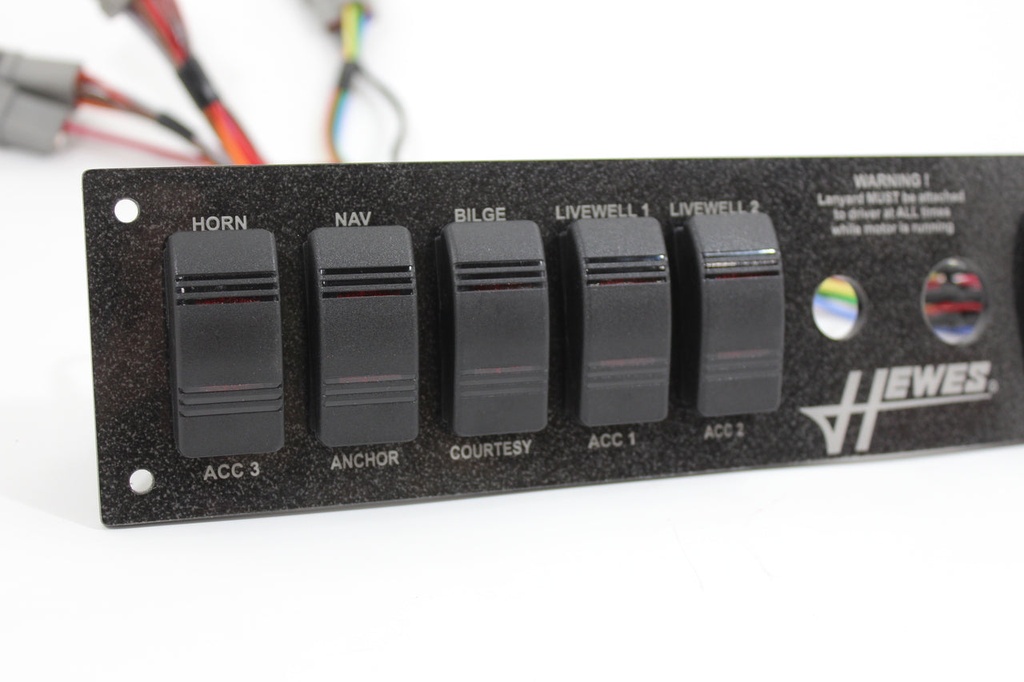

- 7 switch positions handle all stock functions.
- Exceeds current OEM quality.
OPTIONS:
-

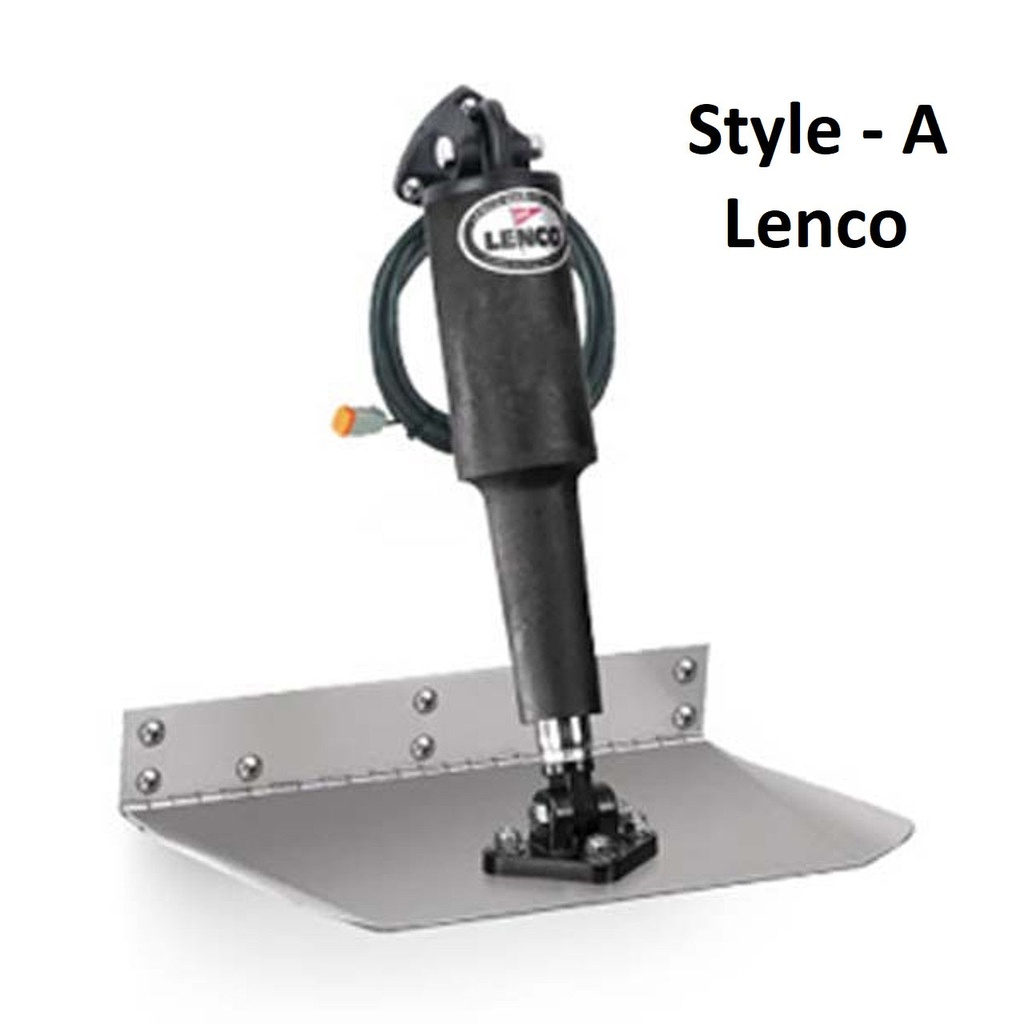

STYLE A - Wired for Lenco electric trim tabs

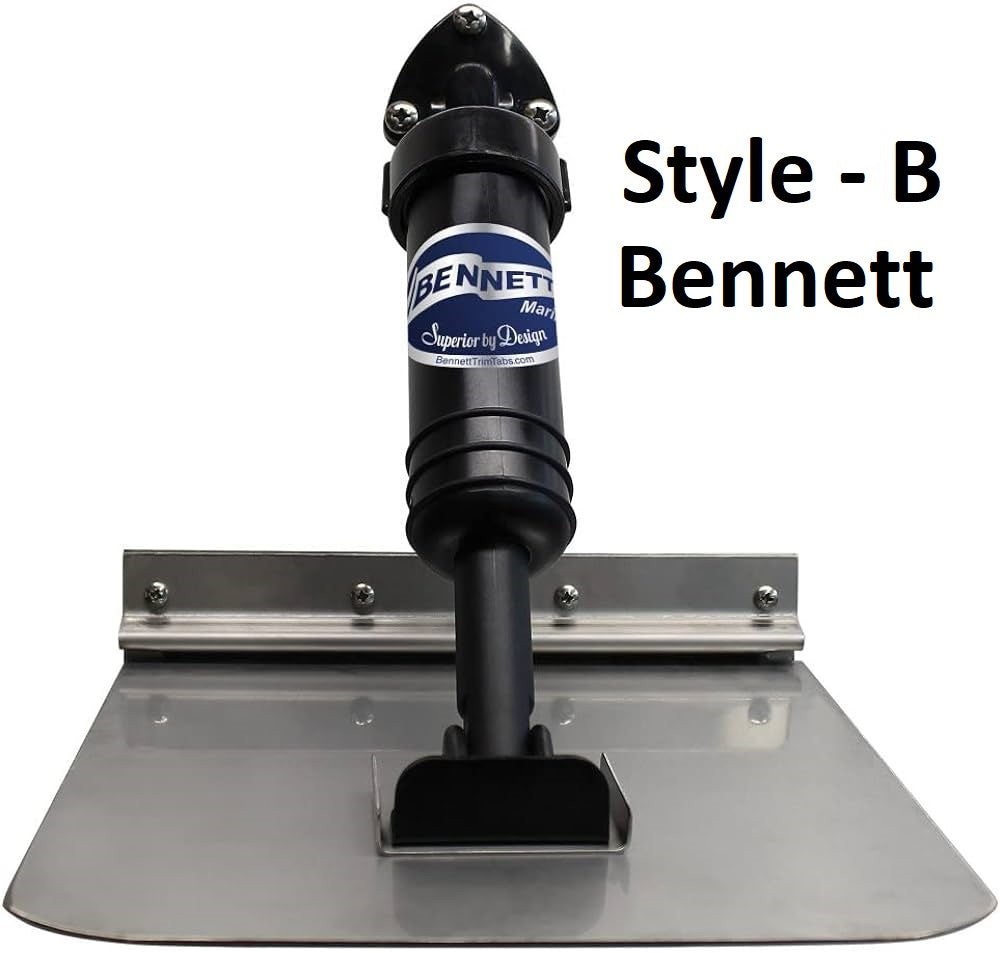

- STYLE B - Wired for Bennett hydraulic trim tabs
Custom Switch label engraving is available for a nominal $35 charge.
(Custom labeling for the switches includes simple text changes to the "ACC" functions. Changing switch configurations would require harness changes which are not available for this product.) Choosing this option will typically add approximately a 5-7 day lead time.
Panel Dimensions: 14.1" x 3.1"
Internal Reference:
FWPA-HEWESRF18
