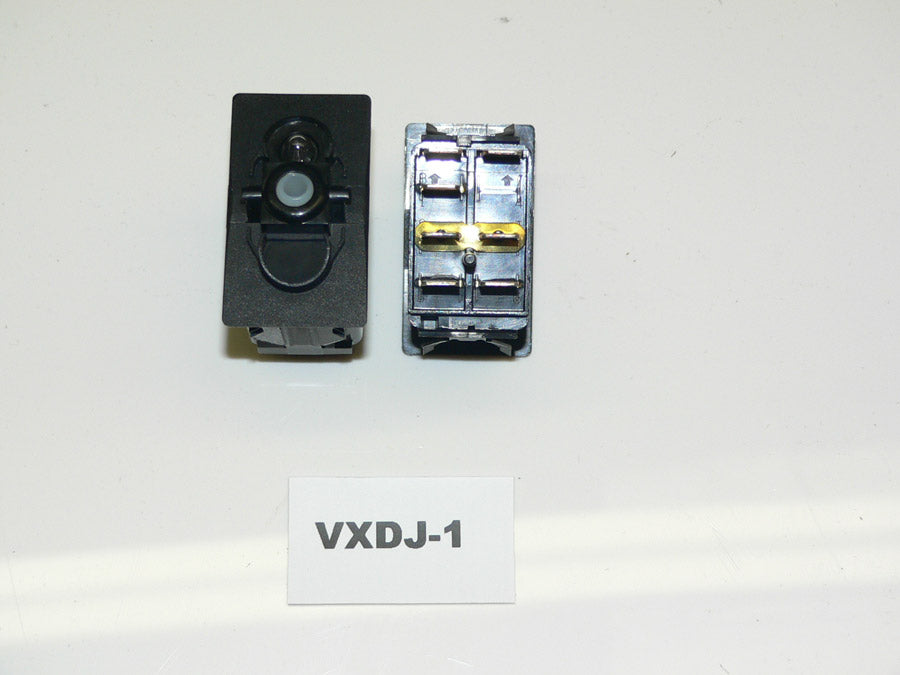

VXDJ-1 Carling ON/ON/ON Double Pole Rocker Switch, Independent Single Lamp w/Jumper for Nav Lights, Wipers

Electrical Switch for Sea Ray and Other Boats

OEM-quality marine electrical switch engineered for reliable boat system control. For Sea Ray, Boston Whaler, Grady White, and other cruisers.

Product Specifications

Type: Electrical Switch

Configuration: Double Pole - Standard

Application: boat electrical switching and control

SKU: ELC-009100

Details: Carlingswitch ON/ON/ON double pole V series Contura rocker switch body. This is a Switch Body Only. Actuators are sold separately. ON/ON/ON Special configuration for Sea Ray Navigation lights, wipers and other. Double pole switch. Most often used to operate two separate lights or accessories. Sea Ray uses this switch for navigation lights in some model boats. Also used for multi speed wiper motors. 310 Sundancer, 380 Sundancer and others. 12V clear independent lamp in the top position. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position. 7 terminal; Top two terminals (7&8) are for the lamp, the upper right (7) is the ground and the upper left (8) is the power. You can jump the power to the lamp from another terminal on the switch so it illuminates always, or when either or both of the accessories are activated..your choice. The middle two terminals are power in and there is an external jumper already installed so you do not have to add a jumper wire. The other terminals are power "out", The second terminal from the top on the left side (1) is hot with the bottom of the actuator depressed (park function on wiper motor). That same terminal and the lower right terminal (6) are hot with the actuator in the middle position (speed 1 on wiper motor). The two bottom terminals (3 & 6) are hot when the top of the actuator is depressed (speed 2 on wiper motor). So ON/ON/ON = 1/1&6/3&6 Common for Marine, RV, automotive, and other 12V DC applications. Part# VXDJ-1 Sea Ray part # 679340 or 0679340 Also replaces the old gray body switch SR part# 711804 Choose from a variety of actuators with different lenses. Actuator part numbers begin with VV

Why OEM Electrical Switches Matter

OEM electrical switches are engineered for your boat's voltage and amperage specifications. They deliver reliable operation, proper electrical protection, and long-term durability in marine environments. Using correct switches prevents electrical system failures, fires, and equipment damage.

Quality electrical components ensure system safety and reliability. Always use OEM switches rated for your boat's electrical system specifications.
