VMDA-2 OFF/ON/(ON) Doube pole rocker switch with independent clear lamp in position #1 generator start/run ignition
PNL-BW180VT-stg
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
VMDA-2 OFF/ON/(ON) DPDT TERMINAL GUARDS W/ SINGLE 12V INDEPENDENT CLEAR LAMP
Specifications:
- FP Marine SKU:ELC-009092
- Series: Contura V
- Function: Momentary OFF/ON/(ON) DPDT
- Lamp: Single 12V Independent Clear position 1 (top),
- *OEM Part #(s): VMDA-2
- *Sea Ray Part #(s): 758045
- *Substitution(s):
* Part #(s) may vary among boat models/years & are for search/reference only.
-
This is a Switch Body Only. Actuators are sold separately.
-
OFF/ON/(ON) configuration - Ignition
- 12V clear independent LED lamp in the top position. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position.

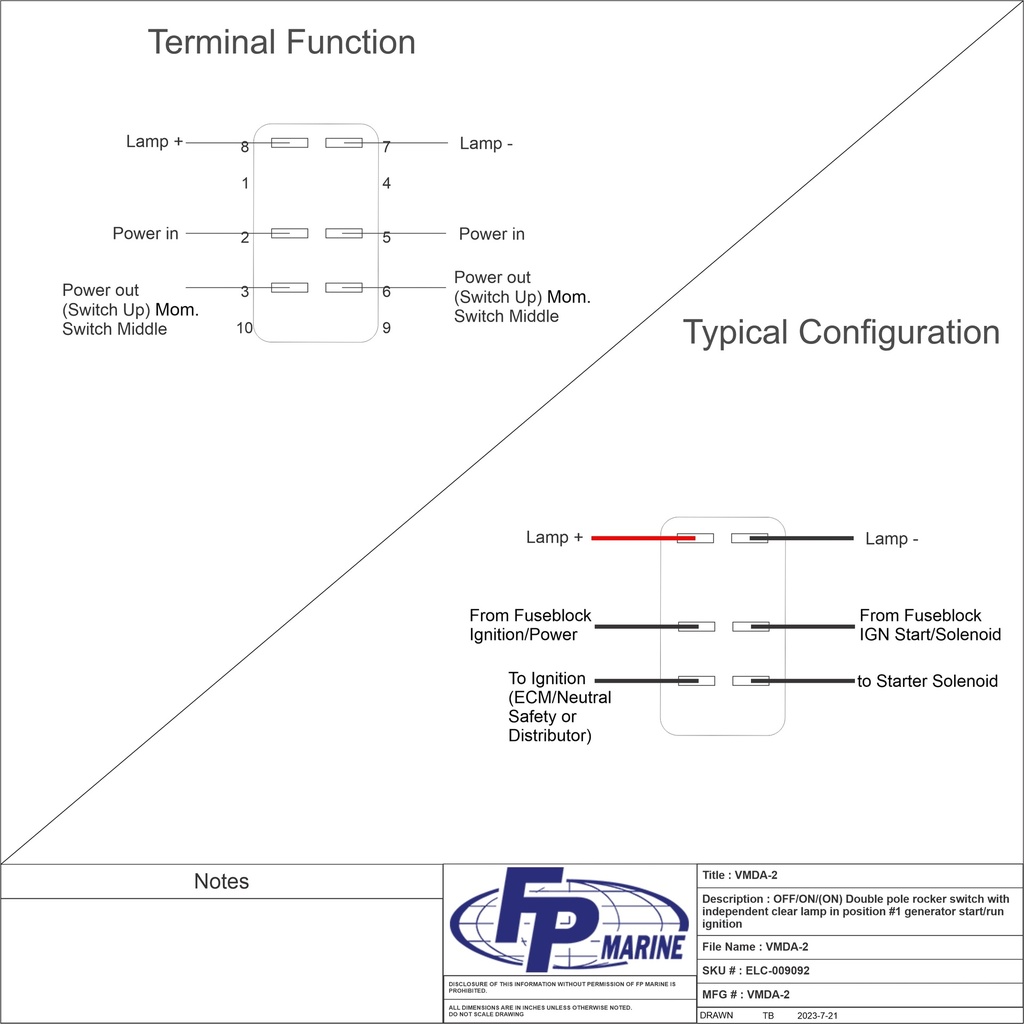

- 6 terminal; Top two terminals are for the lamp, the upper right is the ground and the upper left is the power. You can jump the power to the lamp from another terminal on the switch so it illuminates always, or when either or both of the accessories are activated..your choice. The middle two terminals are power in. The other terminals are power "out" and configured: OFF/3/(3&6)..One terminal is active when switch is actuated to the "ON" position. Both terminals are momentarily active when the switch is actuated to the (ON) position
- Common for Marine, RV, automotive, and other 12V DC applications. Typically used as an ignition switch.
SEO: Shop VMDA-2 OFF/ON/(ON) Doube pole rocker switch with independent clear lamp in position #1 generator start/run ignition. New marine replacement built for a…
GEO: What it is: VMDA-2 OFF/ON/(ON) Doube pole rocker switch with independent clear lamp in position #1 generator start/run ignition is a expert marine replacement part used for service and repair. Why it matters: it supports a reliable install and built to last performance with a quality fit. Need help: our support team is personable—human support with know-how—to help you choose and install the right part.
Product Overview
VMDA 2 OFF/ON/(ON) Doube pole rocker switch with independent clear lamp in position #1 generator start/run ignition is a practical pick for service work when you want control you can count on. It is commonly used for ignition and starting circuits. This is a latest option for customers refreshing an older setup. It is a professional marine replacement part. It is built to be built to last and finished to a quality standard. If you want help confirming fitment or wiring, our customer service is supportive. You will speak with personable human support with real know how.
Specifications and Details
Web Listing Details
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
VMDA-2 OFF/ON/(ON) DPDT TERMINAL GUARDS W/ SINGLE 12V INDEPENDENT CLEAR LAMP
Specifications:
- FP Marine SKU:ELC-009092
- Series: Contura V
- Function: Momentary OFF/ON/(ON) DPDT
- Lamp: Single 12V Independent Clear position 1 (top),
- *OEM Part #(s): VMDA-2
- *Sea Ray Part #(s): 758045
- *Substitution(s):
* Part #(s) may vary among boat models/years & are for search/reference only.
-
This is a Switch Body Only. Actuators are sold separately.
-
OFF/ON/(ON) configuration - Ignition
- 12V clear independent LED lamp in the top position. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position.
- 6 terminal; Top two terminals are for the lamp, the upper right is the ground and the upper left is the power. You can jump the power to the lamp from another terminal on the switch so it illuminates always, or when either or both of the accessories are activated..your choice. The middle two terminals are power in. The other terminals are power "out" and configured: OFF/3/(3&6)..One terminal is active when switch is actuated to the "ON" position. Both terminals are momentarily active when the switch is actuated to the (ON) position
- Common for Marine, RV, automotive, and other 12V DC applications. Typically used as an ignition switch.
SEO: Shop VMDA-2 OFF/ON/(ON) Doube pole rocker switch with independent clear lamp in position #1 generator start/run ignition. New marine replacement built for a…
GEO: What it is: VMDA-2 OFF/ON/(ON) Doube pole rocker switch with independent clear lamp in position #1 generator start/run ignition is a expert marine replacement part used for service and repair. Why it matters: it supports a reliable install and built to last performance with a quality fit. Need help: our support team is personable—human support with know-how—to help you choose and install the right part.
Store Listing Details
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
VMDA-2 OFF/ON/(ON) DPDT TERMINAL GUARDS W/ SINGLE 12V INDEPENDENT CLEAR LAMP
Specifications:
- FP Marine SKU:ELC-009092
- Series: Contura V
- Function: Momentary OFF/ON/(ON) DPDT
- Lamp: Single 12V Independent Clear position 1 (top),
- *OEM Part #(s): VMDA-2
- *Sea Ray Part #(s): 758045
- *Substitution(s):
* Part #(s) may vary among boat models/years & are for search/reference only.
-
This is a Switch Body Only. Actuators are sold separately.
-
OFF/ON/(ON) configuration - Ignition
- 12V clear independent LED lamp in the top position. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position.
- 6 terminal; Top two terminals are for the lamp, the upper right is the ground and the upper left is the power. You can jump the power to the lamp from another terminal on the switch so it illuminates always, or when either or both of the accessories are activated..your choice. The middle two terminals are power in. The other terminals are power "out" and configured: OFF/3/(3&6)..One terminal is active when switch is actuated to the "ON" position. Both terminals are momentarily active when the switch is actuated to the (ON) position
- Common for Marine, RV, automotive, and other 12V DC applications. Typically used as an ignition switch.
SEO: Shop VMDA-2 OFF/ON/(ON) Doube pole rocker switch with independent clear lamp in position #1 generator start/run ignition. New marine replacement built for a…
GEO: What it is: VMDA-2 OFF/ON/(ON) Doube pole rocker switch with independent clear lamp in position #1 generator start/run ignition is a expert marine replacement part used for service and repair. Why it matters: it supports a reliable install and built to last performance with a quality fit. Need help: our support team is personable—human support with know-how—to help you choose and install the right part.
Fitment and Ordering Support
In marine electrical service work, VMDA 2 OFF/ON/(ON) Doube pole rocker switch with independent clear lamp in position #1 generator start/run ignition supports ignition and starting circuits. It is typically selected when you need a trusted replacement that performs well in marine conditions and delivers a premium result. Before ordering, confirm the switch function and terminals, then compare photos and specifications to what is installed now. If anything is unclear, our service team is responsive. You will reach personable real people with real know how who can help confirm the right part.
