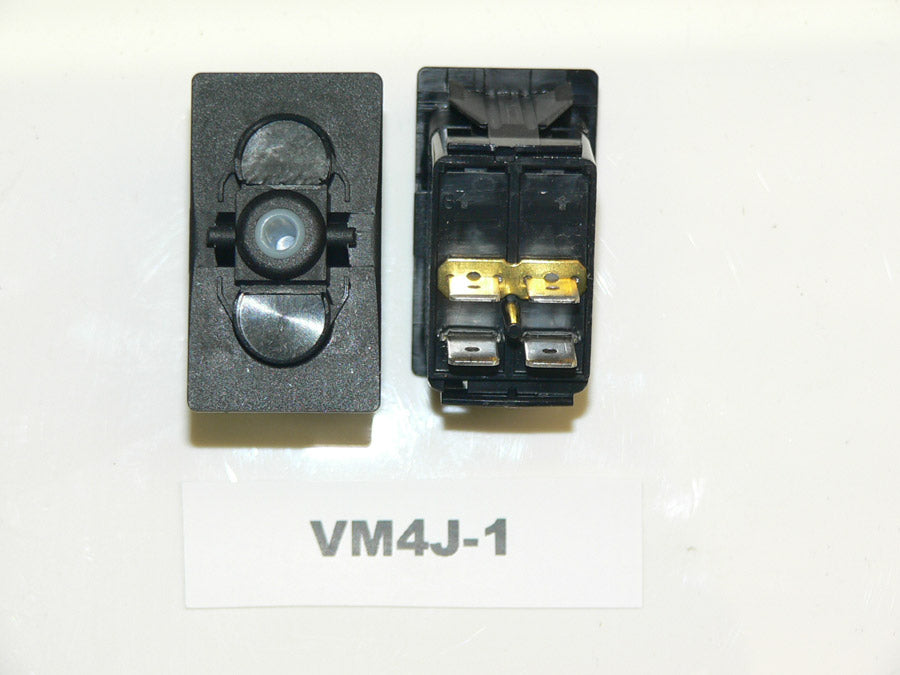

VM4J-1 Carling OFF/ON/(ON) double pole rocker switch w/jumper no lamps - Ignition switch
PNL-BW180VT-stg
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
VM4J-1 OFF/ON/(ON) DPDT W/ NO LAMP
Specifications:
- FP Marine SKU:ELC-009090
- Series: Contura V
- Function:Latching OFF/ON/(ON) DPDT
- Lamp: N/A
- *OEM Part #(s): VM4J-1
- *Sea Ray Part #(s): # 670521
- *Substitution(s):
* Part #(s) may vary among boat models/years & are for search/reference only.
- This is a Switch Body only. Actuators are Sold Separately.
-
OFF/ON/(ON) configuration - Ignition
- no lamps
- 4 terminal, double pole. The top two terminals (2 and 5) are power "in" and the bottom two are power "out". The bottom left terminal (3) is activated when switch is actuated to the "ON" position. Both bottom terminals (3 and 6) are activated when the switch is actuated to the (ON) momentary position. Typically terminal 3 feeds the ignition circuit/accessories/fuel pump relay and terminal 6 feeds the starter circuit/solenoid relay.
- There is an external jumper connecting the two "power in" terminals so you do not have to make a jumper wire to get power to both sides (poles) of the switch
- Common for Marine, RV, automotive, and other 12V DC applications. Typically used as an ignition switch.
Product Overview
VM4J 1 Carling OFF/ON/(ON) double pole rocker switch w/jumper no lamps Ignition switch is a practical pick for service work when you want control you can count on. It is commonly used for ignition and starting circuits. It is a professional marine replacement part. It is built to be built to last and finished to a quality standard. If you want help confirming fitment or wiring, our customer service is responsive. You will speak with easy to work with real people with real know how.
