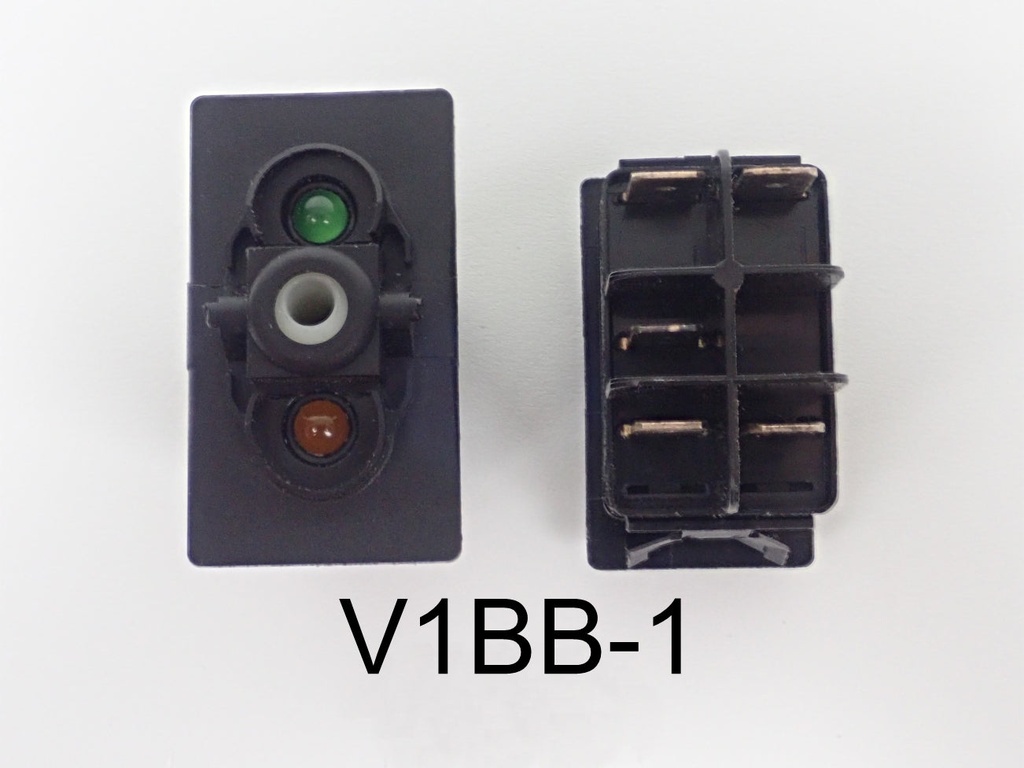

V1BB-1 Carling ON/OFF single pole V-series rocker switch w/24V green and amber lamps
PNL-BW180VT-stg
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
V1BB-1 ON/OFF SPST TERMINAL GUARDS W/ 24V GREEN AND AMBER LAMP
Specifications:
- FP Marine SKU: ELC-009005
- Series: V-Series
- Function:Latching ON/OFF SPST
- Lamp: Double 24V Green, position 1 (top), Amber, position 2 (bottom)
- *OEM Part #(s): V1BB-1
- *Sea Ray Part #(s): #1767257
- *Substitution(s):
-
This is a Switch Body Only. Actuators are sold separately.
-
ON/OFF configuration
- 24V LED Green lamp in the top position. Lamp illuminates when the switch is actuated to the ON position. (Terminal 3+, 8-)
- 24V LED Amber lamp is independent. (Terminal 6+, 7-)
- Typically uses an actuator with clear lenses.
- 5 terminal with divider guards; Terminal #8 is the ground for the dependent green lamp. Terminal #7 is the ground for the independent amber lamp. Terminal #2 is power in. Terminal #3 is power out when the switch is actuated. The bottom right Terminal #6 is the positive feed for the independent amber lamp. (typically tied in with navigation lights or dash lights.
- Common for Marine, RV, automotive, and other 24V DC applications.
Product Overview
V1BB 1 Carling ON/OFF single pole V series rocker switch w/24V green and amber lamps is a practical pick for service work when you want control you can count on. It is commonly used for indicator and control circuits. This is a updated option for customers refreshing an older setup. It is a pro grade marine replacement part. It is built to be durable and finished to a quality standard. If you want help confirming fitment or wiring, our customer service is supportive. You will speak with friendly people first support with real know how.
Specifications and Details
Web Listing Details
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
V1BB-1 ON/OFF SPST TERMINAL GUARDS W/ 24V GREEN AND AMBER LAMP
Specifications:
- FP Marine SKU: ELC-009005
- Series: V-Series
- Function:Latching ON/OFF SPST
- Lamp: Double 24V Green, position 1 (top), Amber, position 2 (bottom)
- *OEM Part #(s): V1BB-1
- *Sea Ray Part #(s): #1767257
- *Substitution(s):
-
This is a Switch Body Only. Actuators are sold separately.
-
ON/OFF configuration
- 24V LED Green lamp in the top position. Lamp illuminates when the switch is actuated to the ON position. (Terminal 3+, 8-)
- 24V LED Amber lamp is independent. (Terminal 6+, 7-)
- Typically uses an actuator with clear lenses.
- 5 terminal with divider guards; Terminal #8 is the ground for the dependent green lamp. Terminal #7 is the ground for the independent amber lamp. Terminal #2 is power in. Terminal #3 is power out when the switch is actuated. The bottom right Terminal #6 is the positive feed for the independent amber lamp. (typically tied in with navigation lights or dash lights.
- Common for Marine, RV, automotive, and other 24V DC applications.
Fitment and Ordering Support
Customers use V1BB 1 Carling ON/OFF single pole V series rocker switch w/24V green and amber lamps for indicator and control circuits in many marine setups. It is typically selected when you need a trusted replacement that performs well in marine conditions and delivers a premium result. Before ordering, confirm the switch function and terminals, then compare photos and specifications to what is installed now. If anything is unclear, our support team is responsive. You will reach friendly real people with real know how who can help confirm the right part.
Internal Reference:
ELC-009005
