Roller Truck Sliding Door Track Set - Single Door
ELC-009090
Specifications
| Top Track Length (Inches) | 10" or 11" or 12" or 13" or 14" or 15" or 16" or 17" or 18" or 19" or 20" or 21" or 22" or 23" or 24" or 25" or 26" or 27" or 28" or 29" or 30" or 31" or 32" or 33" or 34" or 35" or 36" or 37" or 38" or 39" or 40" or 41" or 42" or 43" or 44" or 45" or 46" or 47" or 47-1/2" |
| Bottom Track Length (Inches) | 10" or 11" or 12" or 13" or 14" or 15" or 16" or 17" or 18" or 19" or 20" or 21" or 22" or 23" or 24" or 25" or 26" or 27" or 28" or 29" or 30" or 31" or 32" or 33" or 34" or 35" or 36" or 37" or 38" or 39" or 40" or 41" or 42" or 43" or 44" or 45" or 46" or 47" or 47-1/2" |
| Center Channel Train Length (Inches) | 10" or 11" or 12" or 13" or 14" or 15" or 16" or 17" or 18" or 19" or 20" or 21" or 22" or 23" or 24" or 25" or 26" or 27" or 28" or 29" or 30" or 31" or 32" or 33" or 34" or 35" or 36" or 37" or 38" or 39" or 40" or 41" or 42" |
| Please Enter Boat Year / Make / Size / Model | Example: 2003 Sea Ray 320 Sundancer |
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.

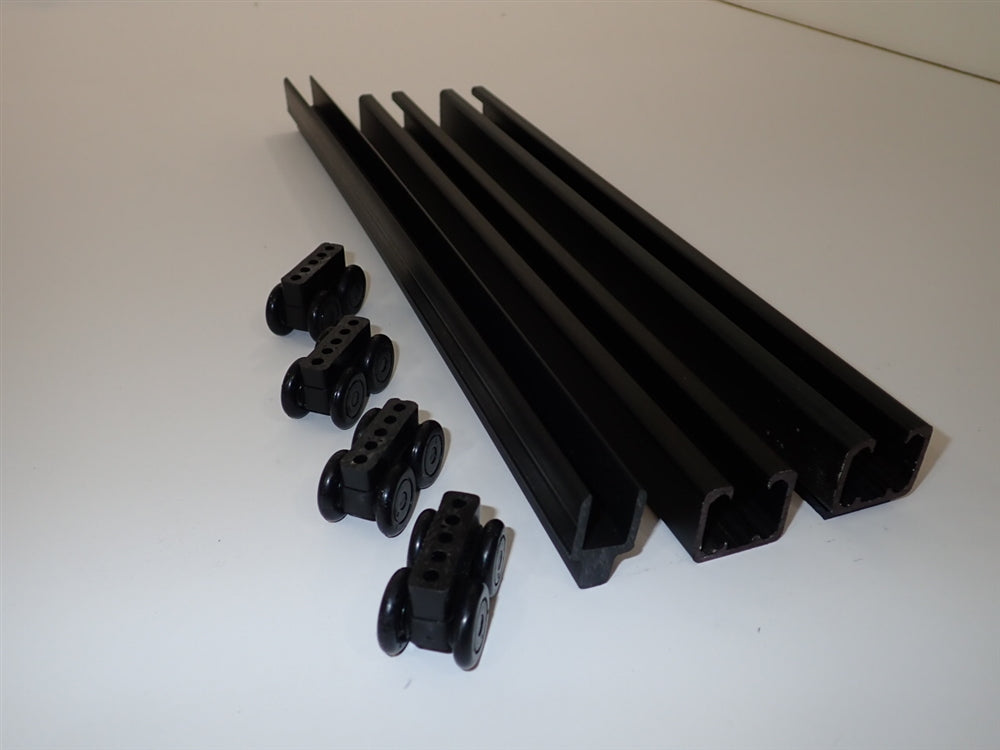

Sliding Door Track Set
- Complete door track set for most boats with SINGLE sliding cabin entry door from the mid 1990's and newer.
- Includes:
BOTTOM TRACK - 1 piece - please specify length. We use aluminum track for durability. This is the same as the top track but includes a 1/8" plastic shim to elevate it from the deck surface.
TOP TRACK - 1 piece - please specify length. We use aluminum track for durability
DOOR TRAIN - (this is the piece that attaches to the bottom of the slider door) Kit includes 1 piece, please specify length.
TRUCKS - 4 pieces, usually 2 -23mm (A) trucks for the bottom track and 2-25mm (B) trucks for the top track. (This can vary) The truck measurement is overall height.
HARDWARE:
4 #10-24 x 1" screws for the 2 top roller trucks
4 #10-24 x 1" screws for the 2 bottom roller trucks
3 #10-24 x 1/2" screws for the lower train piece (some doors will only need 2 of this screw)
3 #10-24 x 3/8" Barrel nuts for the lower train piece (Silver in color but they can be painted if you wanted to paint them - some doors will only need 2 of this part)
THIS KIT DOES NOT INCLUDE THE SCREWS NEEDED TO MOUNT THE TRACK TO THE DECK OF THE BOAT.
- This is used on Tiara Yachts, Regal boats, Carver, Cobalt, Bayliner, US Marine, Baja, Wellcraft, Chris Craft, Sea Ray and many others.
- LIMITATIONS: Please note the maximum size for shipping on this product is 47-1/2". If you order a 48" section, the actual measurement will be 47-1/2". If you need a true 48" or longer piece, please call for a custom shipping quote.
Internal Reference:
TSM-000020
