Roller Truck Sliding Door Track Set - Double Door
ELC-009090
Specifications
| Port Side Top Track Length (Inches) | 10" or 11" or 12" or 13" or 14" or 15" or 16" or 17" or 18" or 19" or 20" or 21" or 22" or 23" or 24" or 25" or 26" or 27" or 28" or 29" or 30" or 31" or 32" or 33" or 34" or 35" or 36" or 37" or 38" or 39" or 40" or 41" or 42" or 43" or 44" |
| Port Side Bottom Length (Inches) | 10" or 11" or 12" or 13" or 14" or 15" or 16" or 17" or 18" or 19" or 20" or 21" or 22" or 23" or 24" or 25" or 26" or 27" or 28" or 29" or 30" or 31" or 32" or 33" or 34" or 35" or 36" or 37" or 38" or 39" or 40" or 41" or 42" |
| Port Side Train Style | Center or Offset |
| Port Side Train Length (Inches) | 10" or 11" or 12" or 13" or 14" or 15" or 16" or 17" or 18" or 19" or 20" or 21" or 22" or 23" or 24" or 25" or 26" or 27" or 28" or 29" or 30" or 31" or 32" or 33" or 34" or 35" or 36" |
| Starboard Side Top Track Length (Inches) | 10" or 11" or 12" or 13" or 14" or 15" or 16" or 17" or 18" or 19" or 20" or 21" or 22" or 23" or 24" or 25" or 26" or 27" or 28" or 29" or 30" or 31" or 32" or 33" or 34" or 35" or 36" or 37" or 38" or 39" or 40" or 41" or 42" |
| Starboard Side Bottom Track Length (Inches) | 10" or 11" or 12" or 13" or 14" or 15" or 16" or 17" or 18" or 19" or 20" or 21" or 22" or 23" or 24" or 25" or 26" or 27" or 28" or 29" or 30" or 31" or 32" or 33" or 34" or 35" or 36" or 37" or 38" or 39" or 40" or 41" or 42" |
| Starboard Side Train Style | Center or Offset |
| Starboard Train Length (Inches) | 10" or 11" or 12" or 13" or 14" or 15" or 16" or 17" or 18" or 19" or 20" or 21" or 22" or 23" or 24" or 25" or 26" or 27" or 28" or 29" or 30" or 31" or 32" or 33" or 34" or 35" or 36" |
| Please Enter Boat Year / Make / Size / Model | Example: 2003 Sea Ray 320 Sundancer |
| $6.99 Shipping Insurance Added | Shipping Insurance |
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.

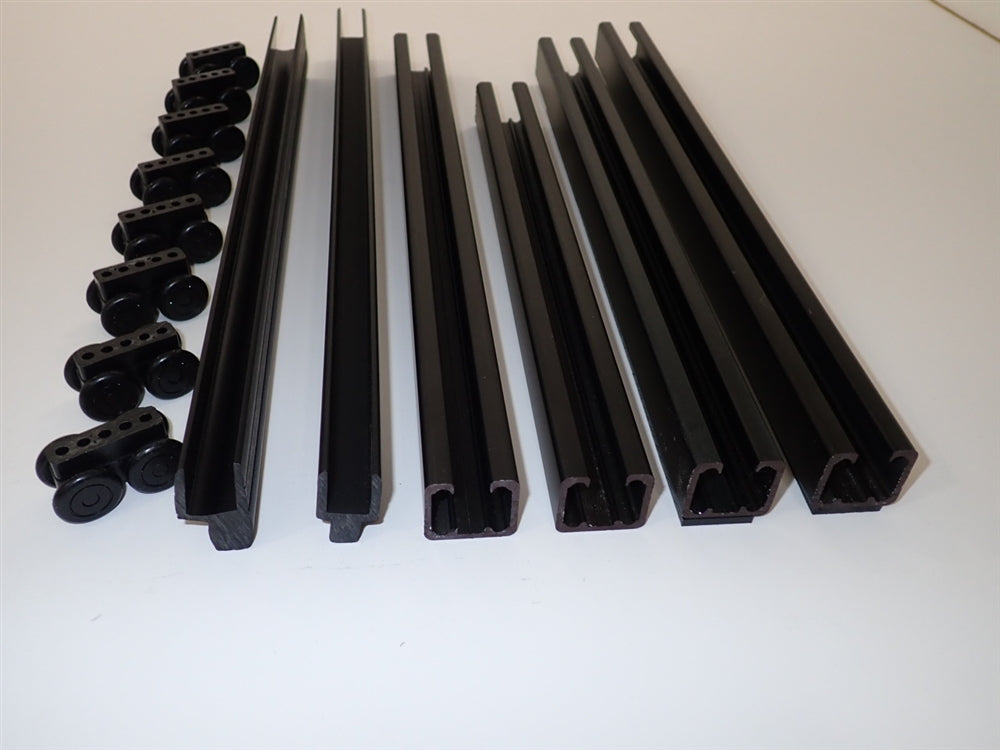

Sliding Door Track Set
- Complete door track set for most boats with DOUBLE sliding cabin entry doors from the mid 1990's and newer.
- Pricing represents maximum 42" max of each top track, 42" max of each bottom track, and 30" of each train. Please call for a quote on custom oversize kits.
- Includes:
BOTTOM TRACK - 2 pieces - please specify length of each (42" max). We use aluminum track for durability. This is the same as the top track but includes a 1/8" plastic shim to elevate it from the deck surface.
TOP TRACK - 2 pieces - please specify length of each (42" max). We use aluminum track for durability
DOOR TRAIN - (this is the piece that attaches to the bottom of the slider door) please specify whether it is center train or offset train (see pictures) Typically one door uses a center train and the other door uses an offset train. However, some boat manufacturers used the same style train for both doors. - Kit includes 2 pieces, please specify length of each.
TRUCKS - 8 pieces, usually 4 -23mm (A) trucks for the bottom track and 4-25mm (B) trucks for the top track. (This can vary) The truck measurement is overall height.
HARDWARE:
8 #10-24 x 1" screws for the 4 top roller trucks
8 #10-24 x 1" screws for the 4 bottom roller trucks
6 #10-24 x 1/2" screws for the lower train piece (some doors will only need 2 of this screw)
6 #10-24 x 3/8" Barrel nuts for the lower train piece (Silver in color but they can be painted if you wanted to paint them some doors will only need 2 of this part)
- THIS KIT DOES NOT INCLUDE THE SCREWS NEEDED TO MOUNT THE TRACK TO THE DECK OF THE BOAT.
Internal Reference:
TSM-000018
