340 Sundancer & Express Cruiser 1983-1989
SUR-000009-1791788
Please click here see our Library/Tech Center for videos, articles, and FAQ's
- Boat Manufacturer: Sea Ray
- OEM Part#*:
- Fits Models*: 340 Sundancer Express Cruiser 1983-1989
- Construction: Acrylic 3/16"
- Accessory Panels Available: Upper Accy Panel
- Switch Kit Available: SKU#
* May fit other models/years, Part# for search/reference only
OPTIONS/SPECIFICATIONS:
There are variations to this panel set, please submit clear photos.

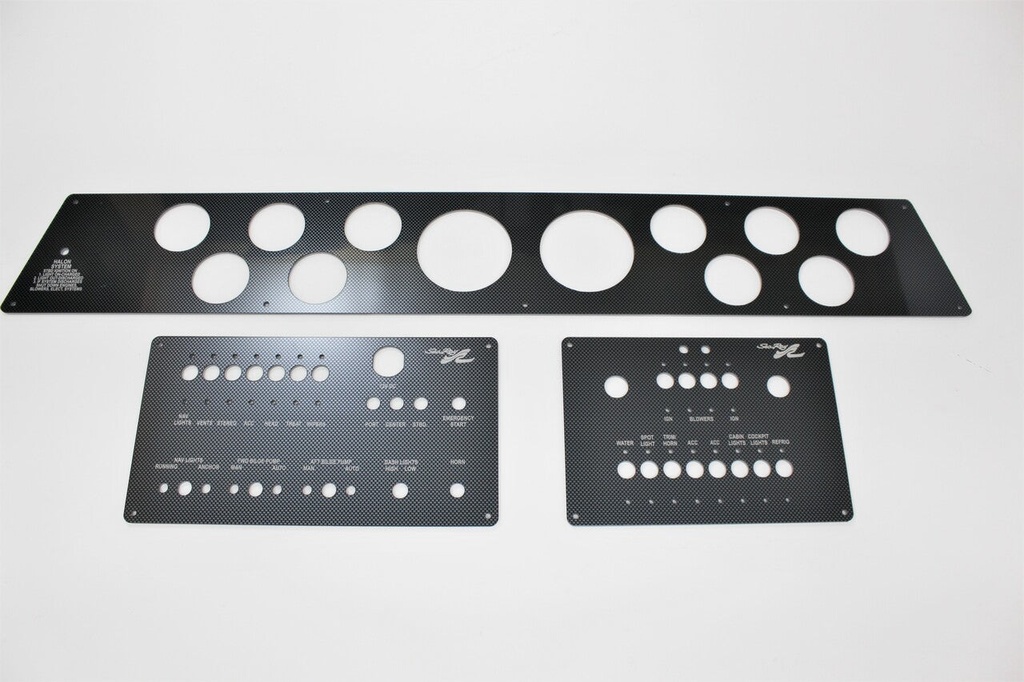

Includes:

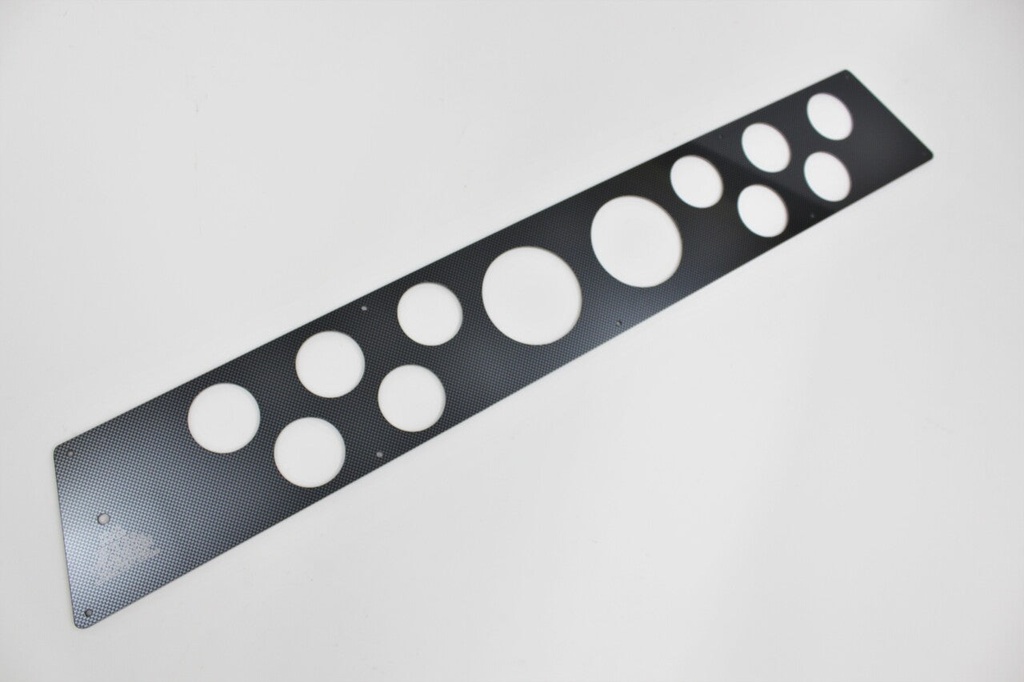

Main Gauge Panel

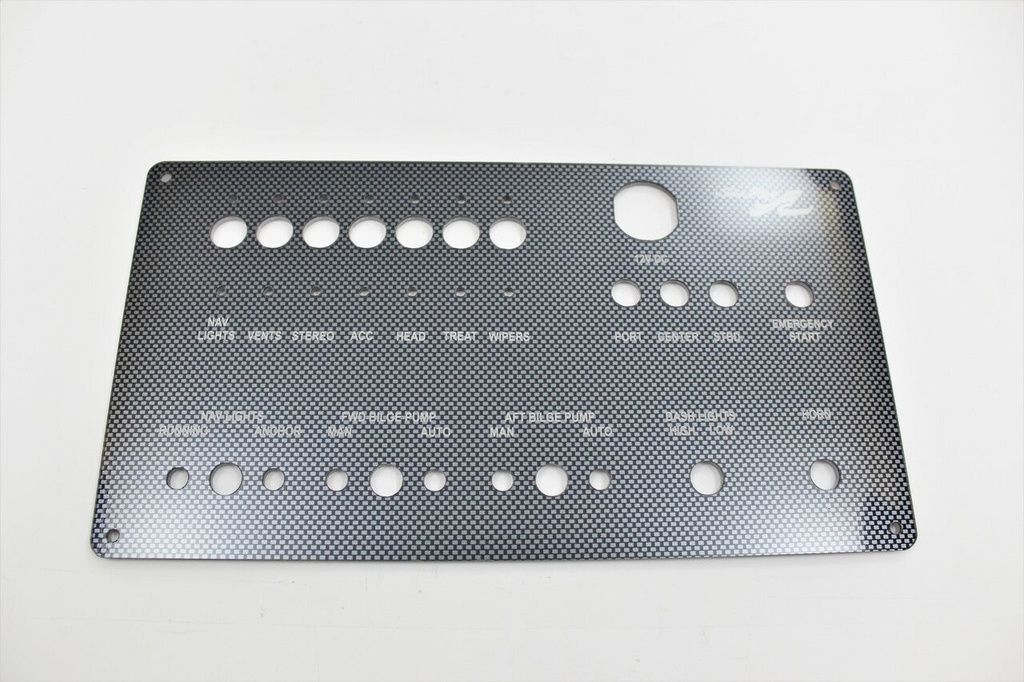

Accessory Switch panel

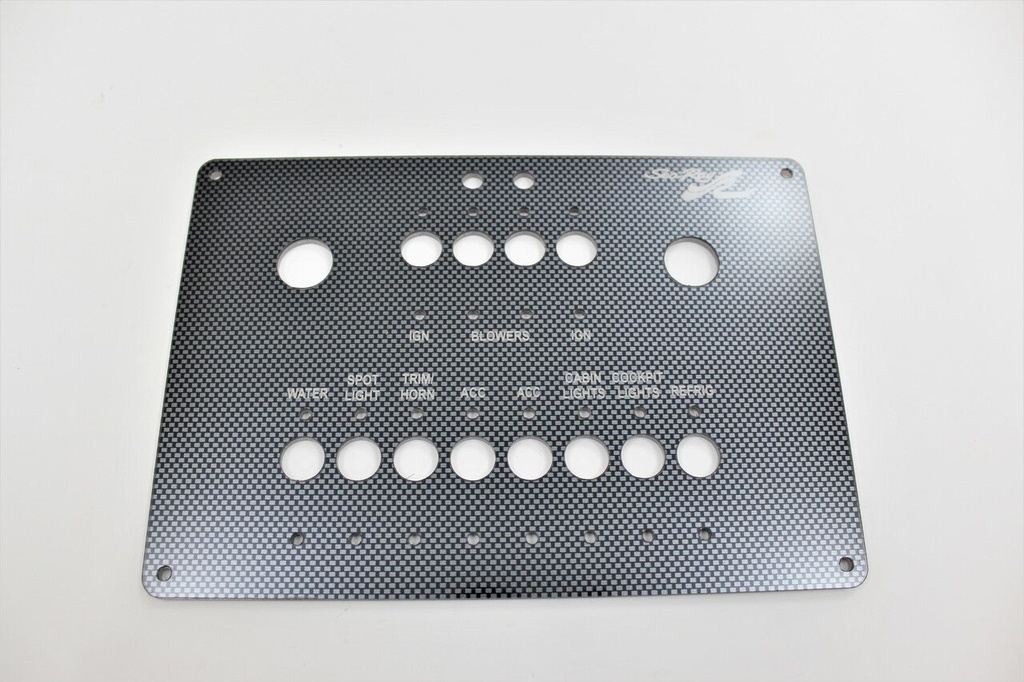

Ignition Switch Panel
MEASUREMENTS:
Approximate measurements are as follows:
Gauge panel: 32-1/4" across top, 35-1/4" across bottom, 5" height
Accessory panel (left) 12" x 6-1/2"
Ignition panel (right) 9-3/8" x 6-1/2"
Optional upper accessory panel (sold separately)
The upper accessory panel was a rare option. There was an additional tier to the dash above the gauge panel that could hold additional accessories like gauges, radios, etc. The shape of this additional tier was much like the main gauge panel but about 15% smaller in dimensions. Please see our listing for this additional panel for photos and exact dimensions.
Backlighting - If you wish to purchase new backlighting you will need to order the following:
(2)- 11-3/4" x 3/4" (300mm x 20mm) strip light
(1)- 7-3/4" x 3/4" (200mm x 20mm) strip light
(1)- 5-1/8" x 3/4" (130mm x 20mm) strip light
(2)- wire extension for strip lights (24")
(1)- 4 into 1 wire connector
(1)- Inverter
Internal Reference:
PNL-SR340DA84-89
