330 Sundancer 1995-1999
SUR-000009-1791788
Please click here see our Library/Tech Center for videos, articles, and FAQ's
- Boat Manufacturer: Sea Ray
- OEM Part#*:
- Fits Models*:Â 330 Sundancer 1995-1999
- Construction: Acrylic 3/16" HD Package Available
- Accessory Panels Available: Radar Panel, Lower Left Panel, Circuit Breaker Panel, Shifter Pad panel
- Switch Kit Available: SKU# ELC-010012Â
* May fit other models/years, Part# for search/reference only
OPTIONS/SPECIFICATIONS:

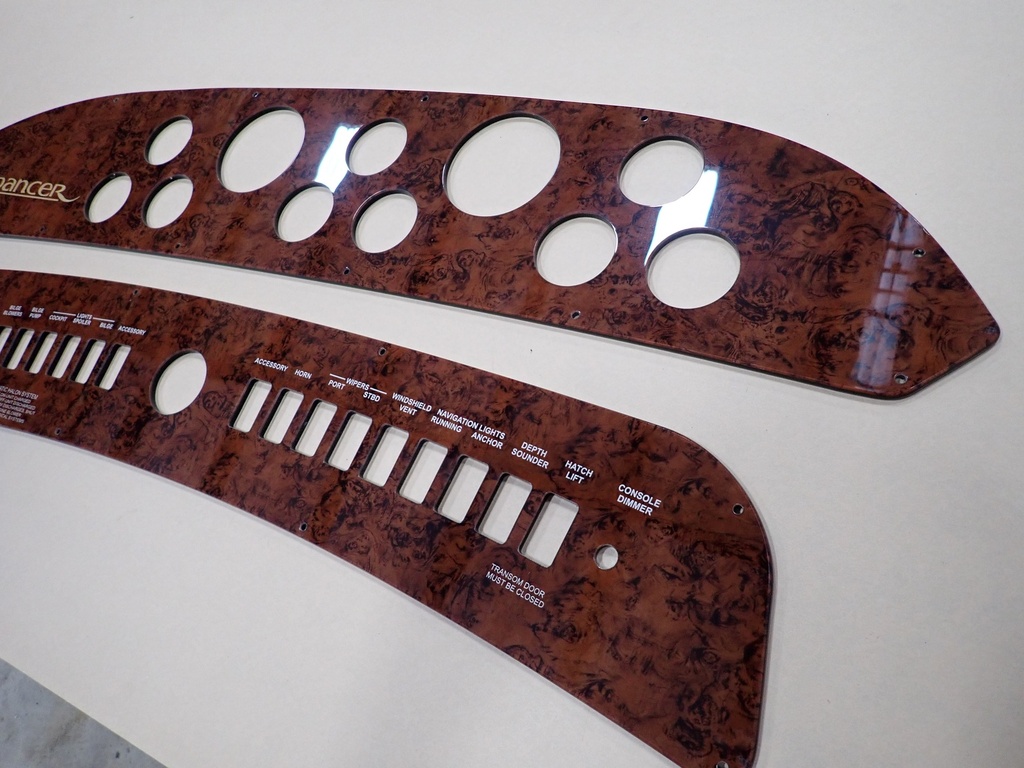

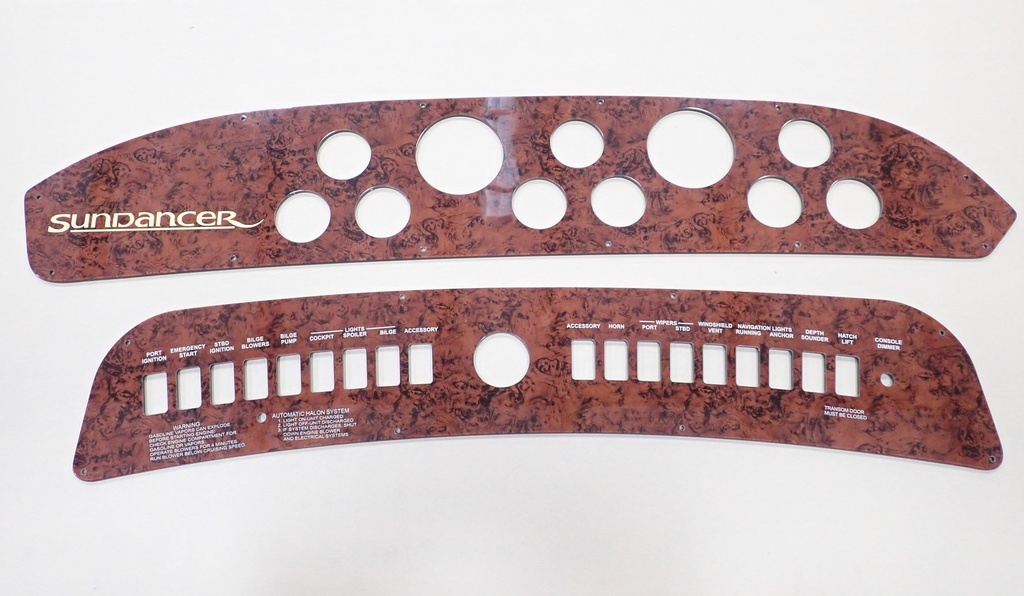

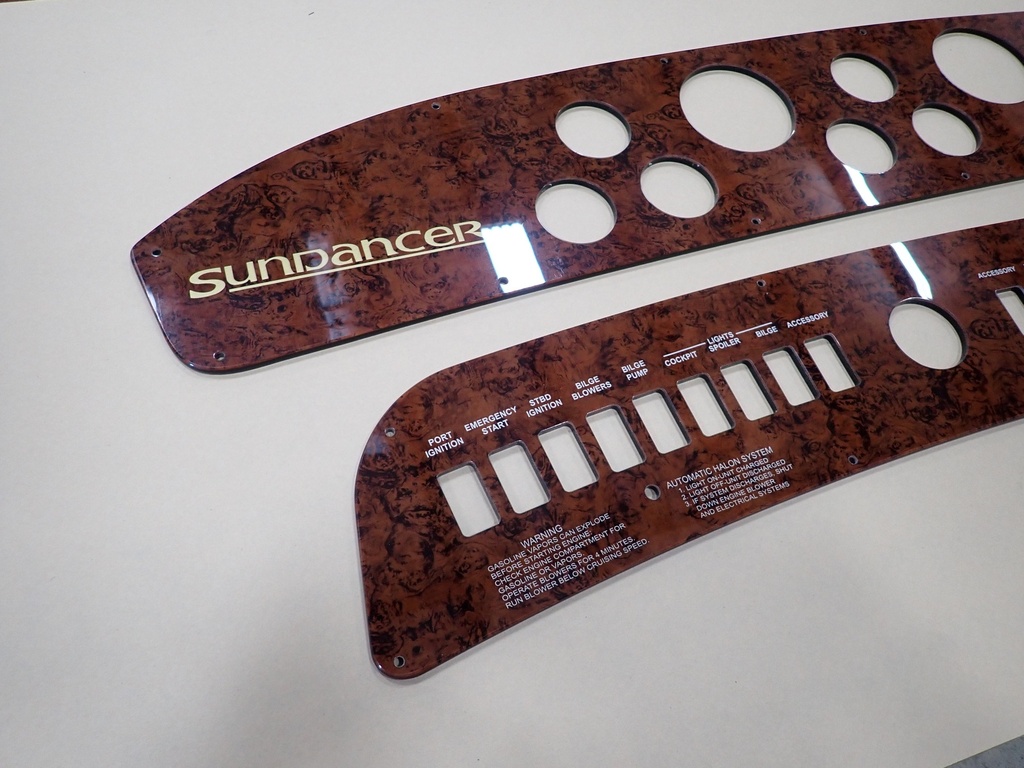

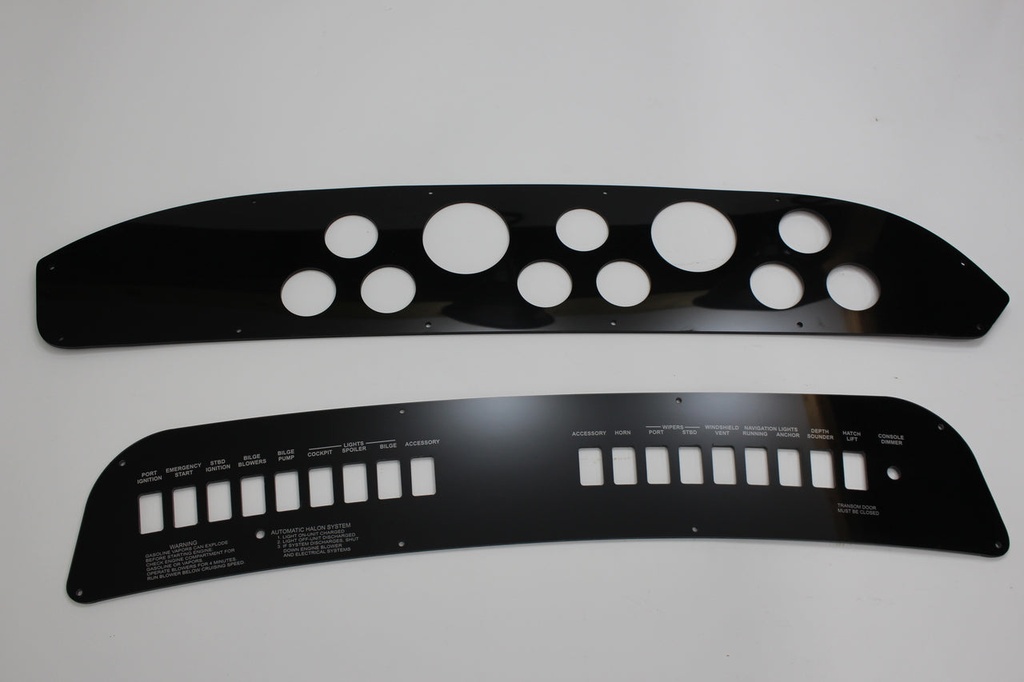

This is a 2 piece panel set which includes:
1 Gauge Panel
1 Switch Panel
Gauge Panel:
Style A: For boats with sterndrives, has 2 extra gauge holes for trim gauges

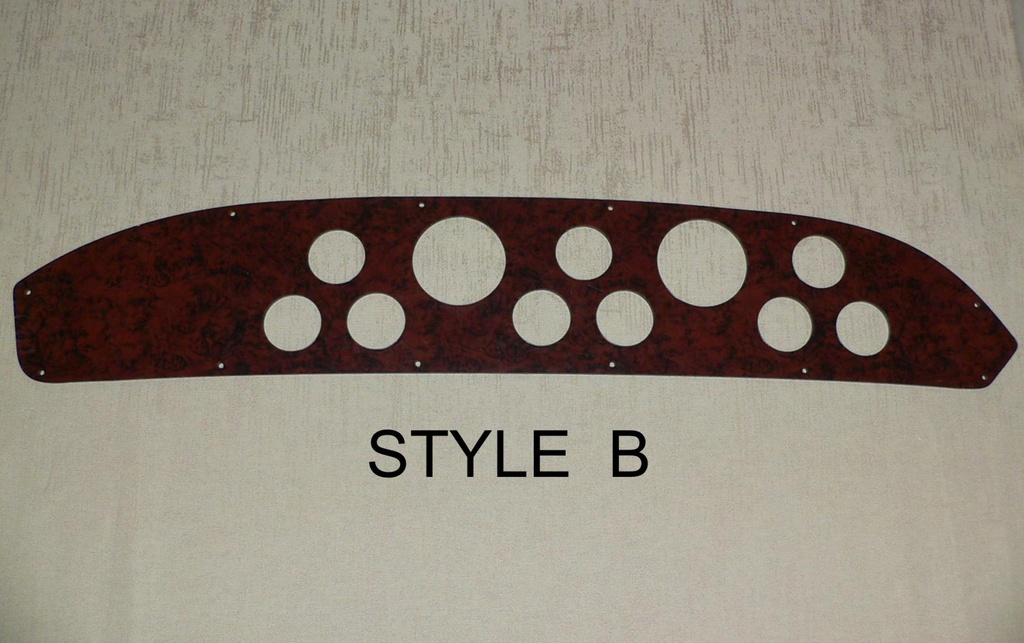

Style B: For boats with inboard engines
Style C: For boats with sterndrives, has 2 extra gauge holes for trim gauges - "Sundancer" script engraved white or gold (+$65)

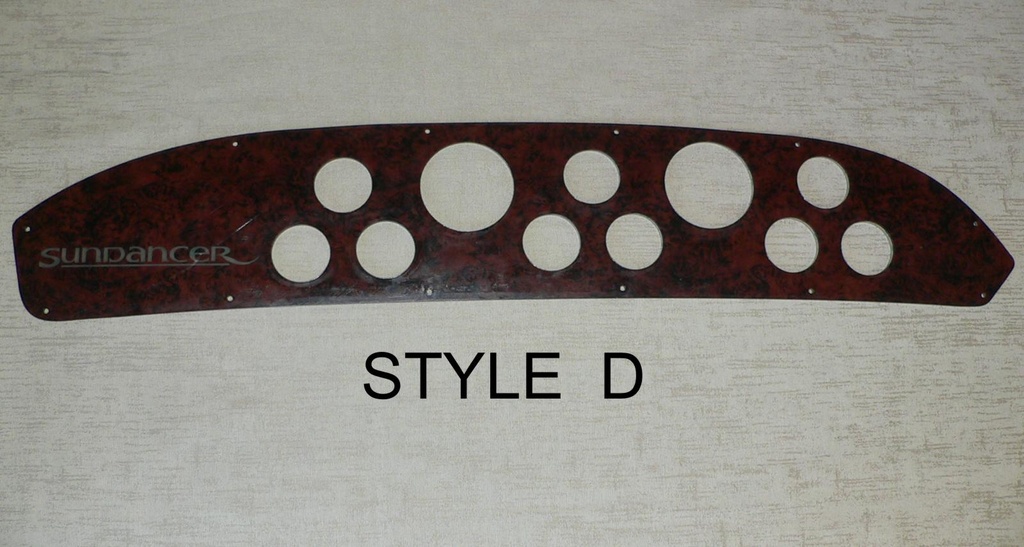

Style D: For boats with inboard engines - "Sundancer" script engraved toward bottom white or gold (+$65)
Style E: For boats with inboard engines - "Sundancer" script engraved toward top white or gold (+$65)

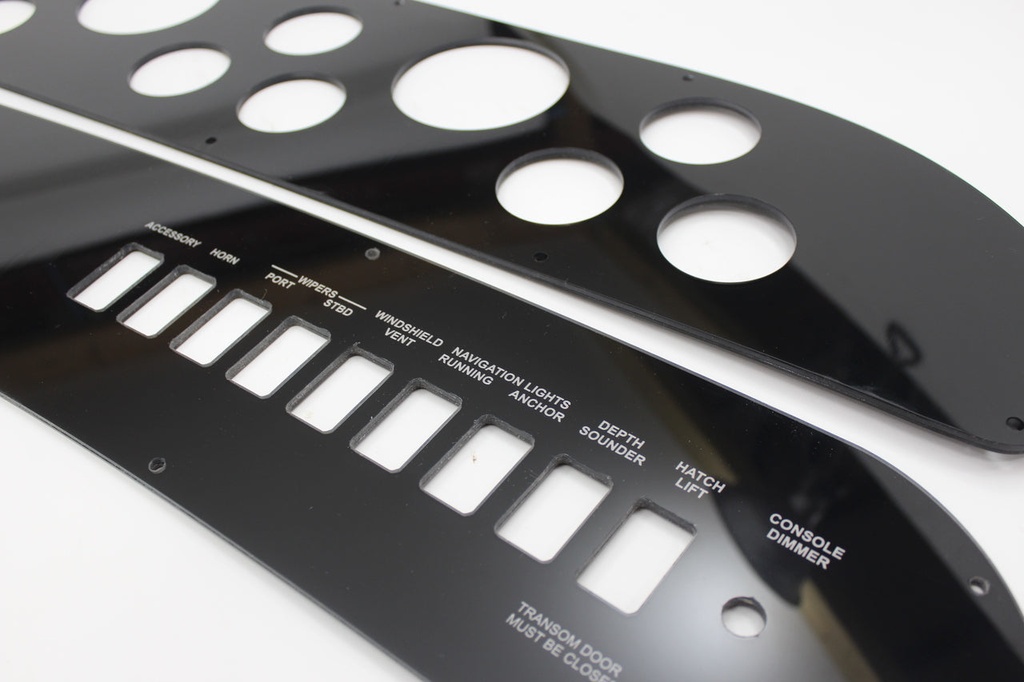

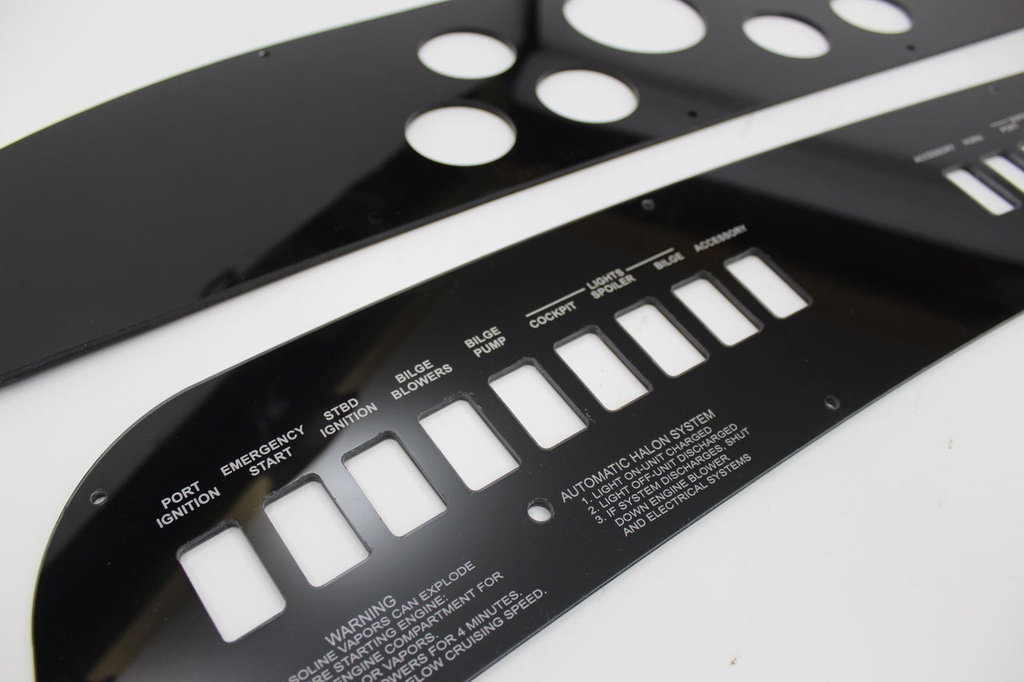

Switch Panel:
Style A: No cutout in center
Style B: Cutout for B&G instrument
Style C: Cutout for Raymarine/Raytheon ST50 series, ST60, ST70, ST80, 6000autopilot, etc. 90mm cutout hole and 2 mounting holes
Style D: 2" cutout for Lowrance depthfinder and others
Style E: Cutout for Raytheon RayData. 79 mm cutout hole and 4 mounting holes
If you wish to purchase new backlighting you will need to order the following:
(1)- 11-3/4" x 3/4" (300mm x 20mm) strip light
(1)- 7-3/4" x 3/4" (200mm x 20mm) strip light
(1)- 5-1/8" x 3/4" (130mm x 20mm) strip light
(1)- 3 into 1 wire connector
(1)- Inverter
ACCESSORY PANELS AVAILABLE:
Some photos show additional accessory panels that are available separately:
- 2 different styles of radar panel
- Left Helm Accessory Panel - For sterndrive boats
- Systems Monitor Panel
- Trim Tab Panel
-Lower Left Accessory Panel
- Circuit Breaker Panel
Internal Reference:
PNL-SR330DA
