310 Sundancer 1999-2002
SUR-000009-1791788
Please click here see our Library/Tech Center for videos, articles, and FAQ's
- Boat Manufacturer: Sea Ray
- OEM Part#*:
- Fits Models*: 310 Sundancer 1999-2002
- Construction: Acrylic 3/16", HD Package Available
- Accessory Panels Available: Several Patch Panels, Large custom electronics panel
- Switch Kit Available: SKU#
* May fit other models/years, Part# for search/reference only
OPTIONS/SPECIFICATIONS:
Gauge panel:
Style A: For boats with sterndrives, has 2 extra gauge holes for trim gauges
Style B: For boats with inboard engines (V-Drives)
Style C: For boats with Smartcraft Gauges (usually 5)
SWITCH panel:
Style A: Far right switch is "ACCESSORY
Style B: Far right switch is "HATCH LIFT"
Accessory Panel:

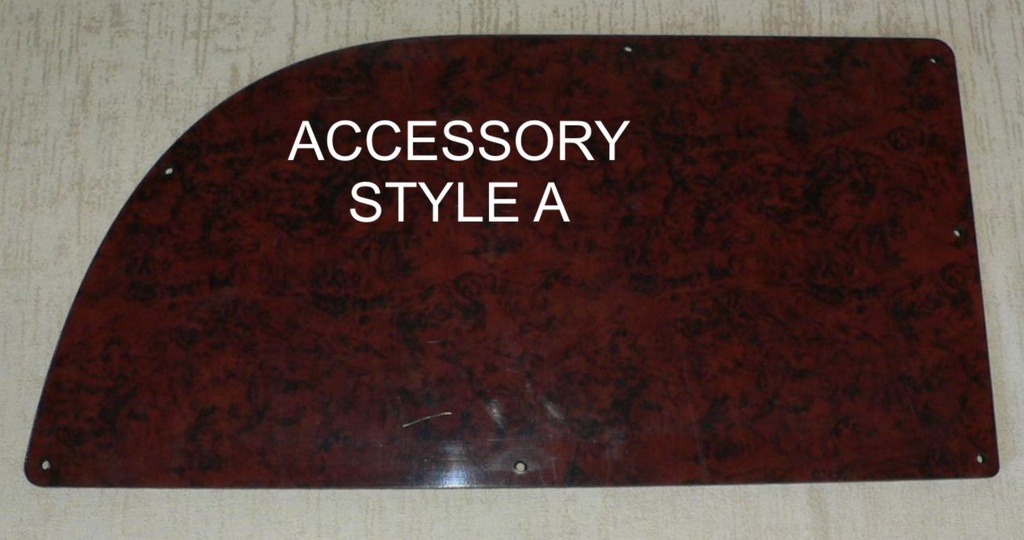

Style A: For late 2001 -2002 boats with the enlarged electronics panel - 20" x 9-15/16" (+$50.00)

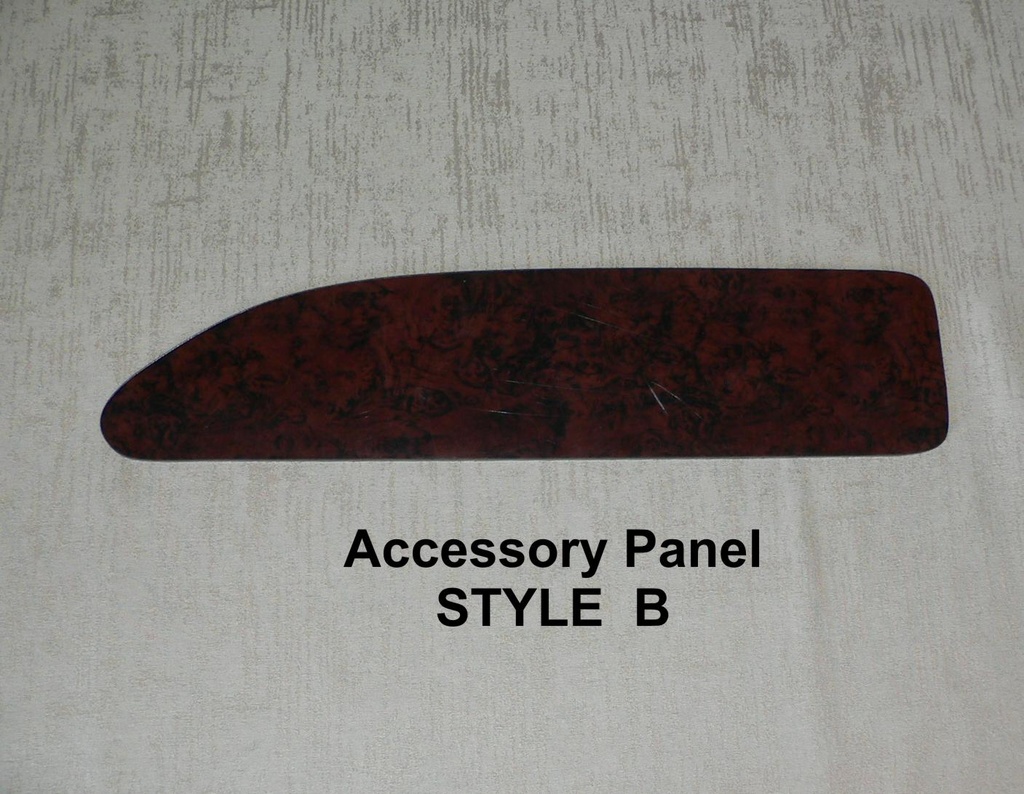

Style B: For 1999 - 2001 boats with the small accessory panel 17-3/4" x 4-1/4"

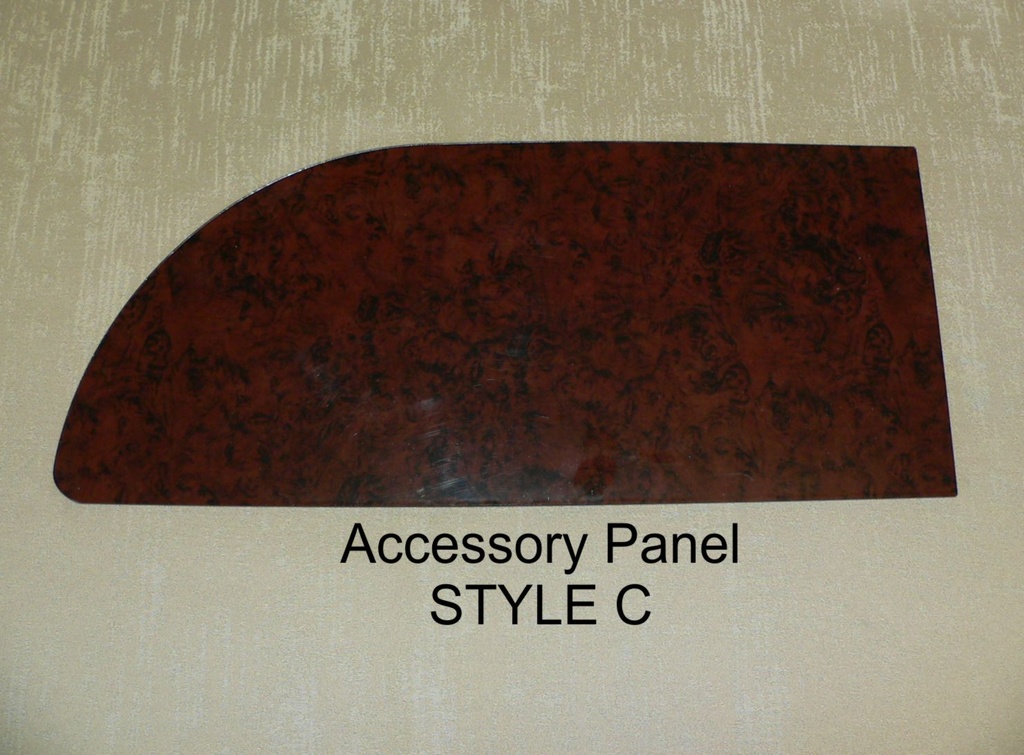

Style C: For 2001-02?? boats with the vinyl trim surround 18-5/8" x 8"

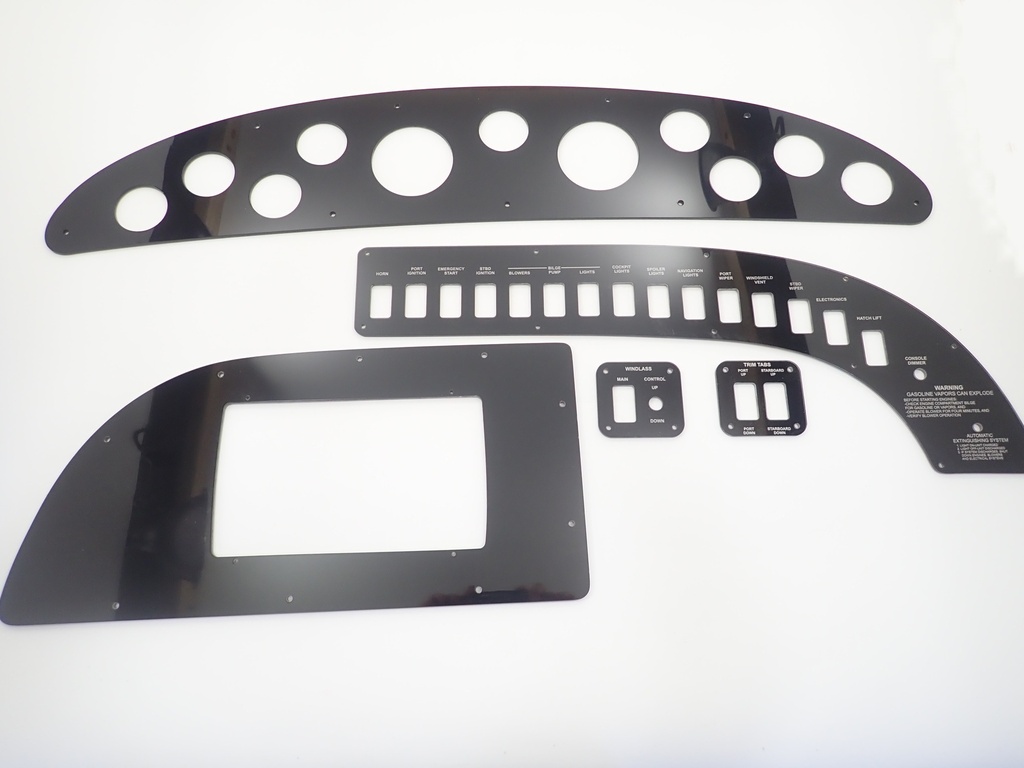

This is a 5 piece set which includes:
- The gauge panel Sea Ray part#1616598 or 1172543 (V-drive inboard)
or 1362540 or 1172535(sterndrives) - The curved switch panel for gas engines Sea Ray part# 1089622
- The accent panel Sea Ray part# 1486695, "Insert, Burl 310DA-01 Elect dash Panel" - Be Careful! some 2002 boats had the larger panel which is available as our option "C"
- Trim tab panel Replacement for Sea Ray part# 980094
- Windlass control panel. replacement for black panel Sea Ray part#'s 990846 or 1485754.
You may also purchase replacement light strips for the backlighting on the switch panel. This switch panel requires:
qty 1 300mm strip
qty 1 200mm strip
qty 2 100mm strip
qty 1 inverter
qty 1 4 to 1 connector
Internal Reference:
PNL-SR310DA99-02
