290 Amberjack 2000-2002
SUR-000009-1791788
Please click here see our Library/Tech Center for videos, articles, and FAQ's
- Boat Manufacturer: Sea Ray
-
OEM Part#*: -Gauge Panel# 1616598 (V-drive inboard) or 1362540(sterndrives) 1172535, 1173731, 1176718 Switch Panel # 1089622
- Fits Models*: 290 Amberjack 2000-2002
- Construction: Acrylic 3/16"
- Accessory Panels Available: N/A
- Switch Kit Available: SKU#
* May fit other models/years, Part# for search/reference only
OPTIONS/SPECIFICATIONS:
VARIATIONS:

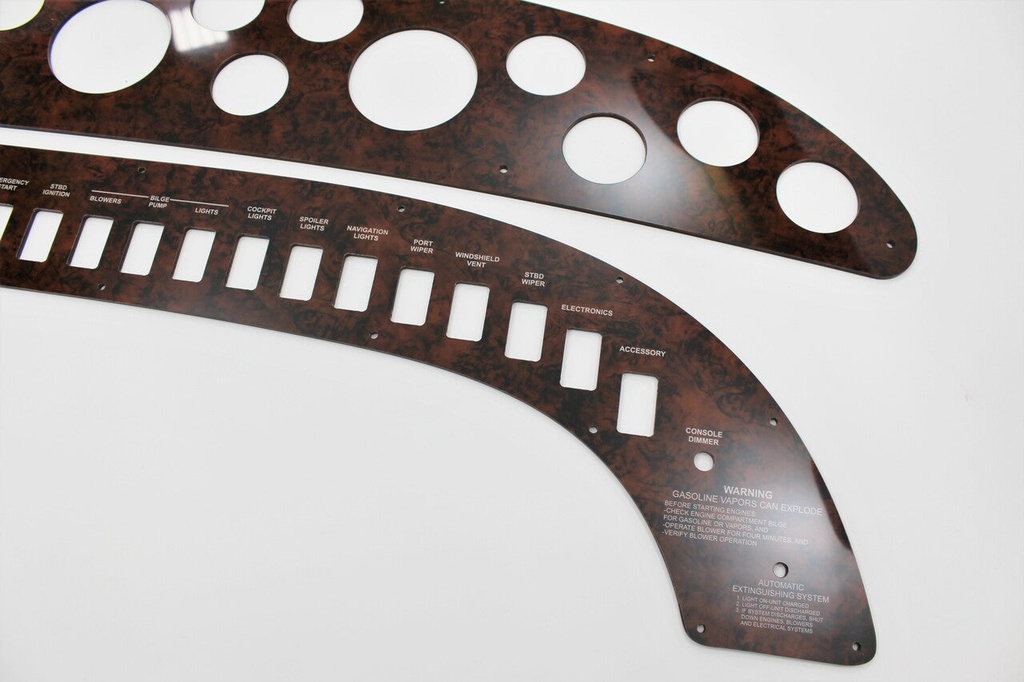

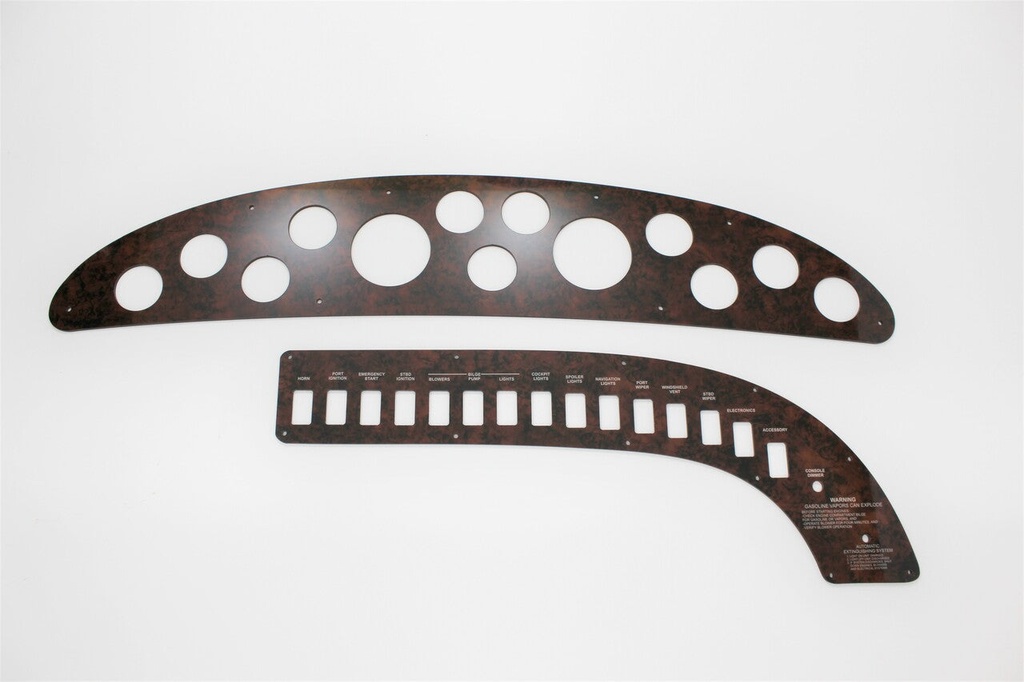

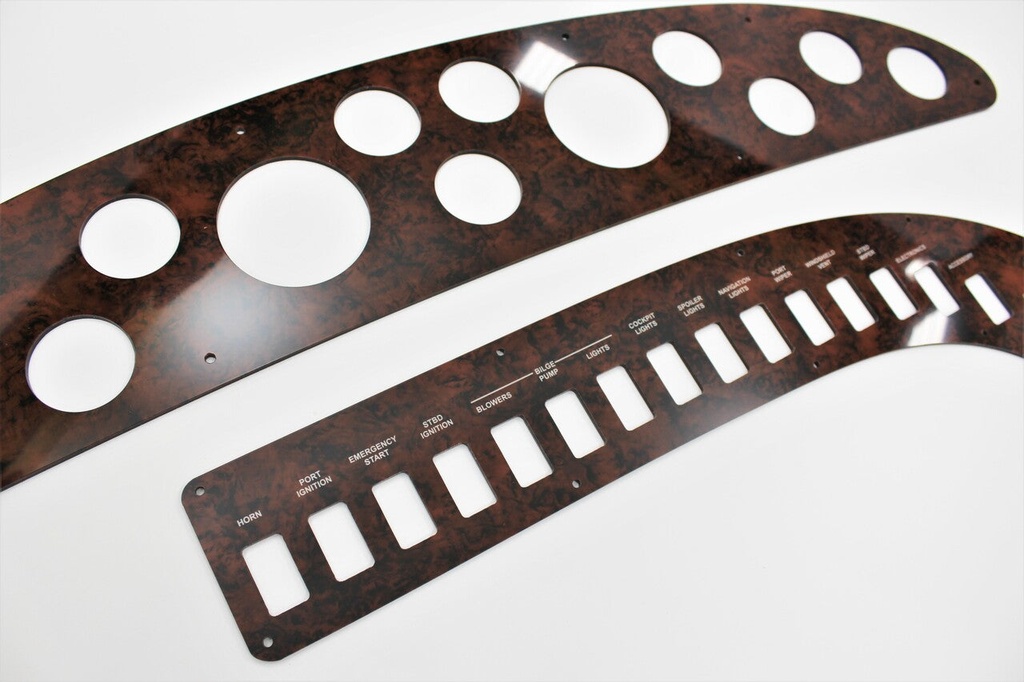

Gauge Panel:
Style A: For boats with sterndrives, has 2 extra gauge holes for trim gauges (13 gauge holes)
Style B: For boats with inboard engines (11 gauge holes)

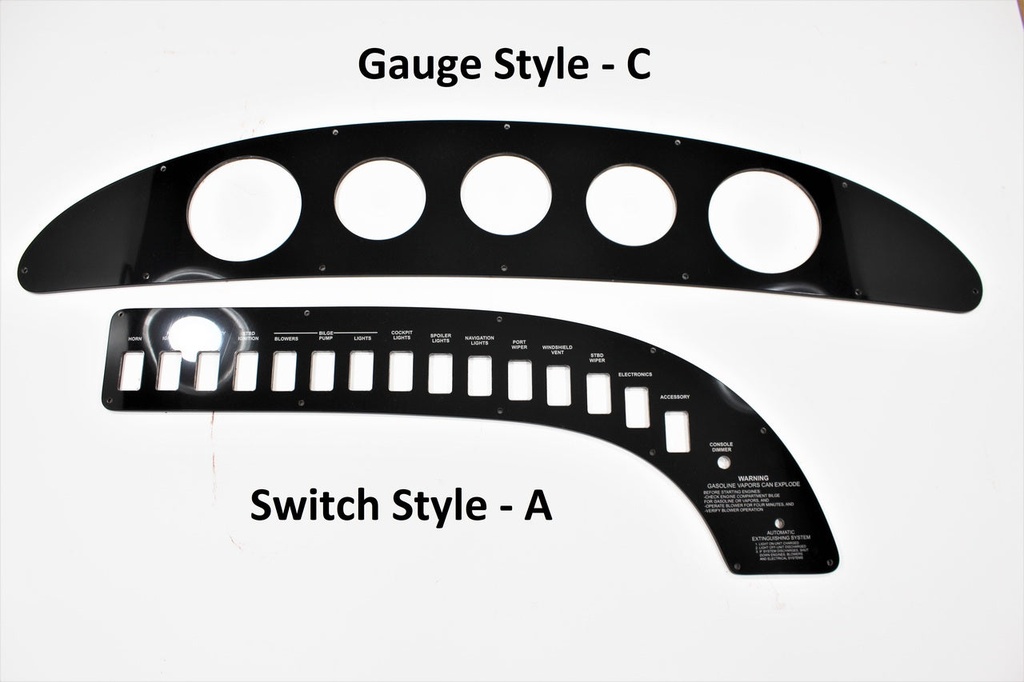

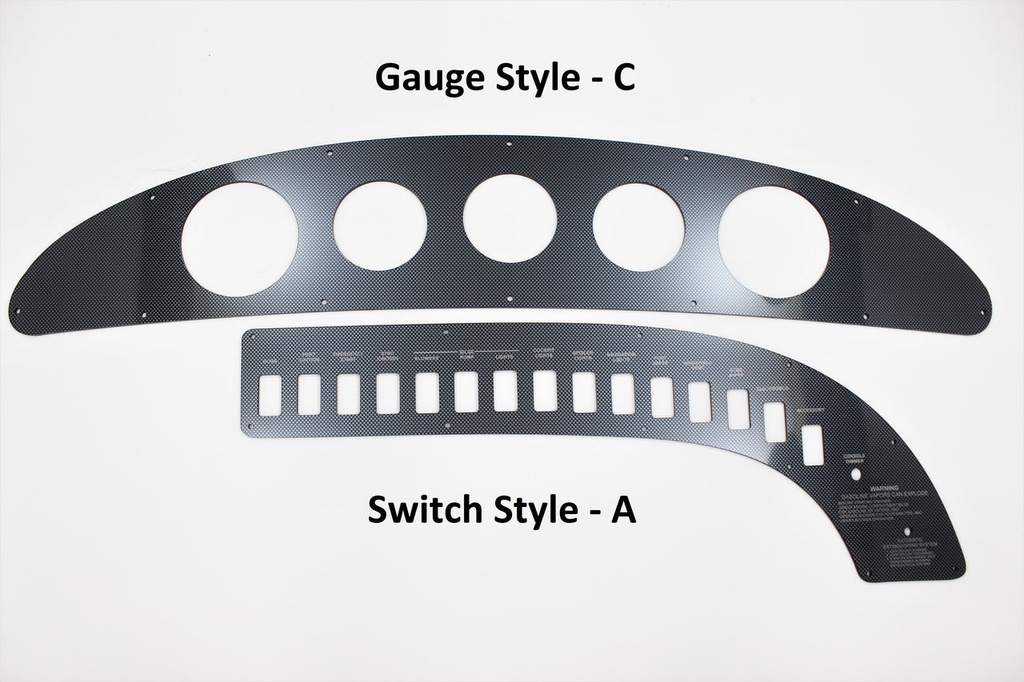

Style C: For boats with Smartcraft Gauges (5 gauge holes)
Switch Panel:
Style A: Far right switch is "ACCESSORY
Style B: Far right switch is "HATCH LIFT"
If you would like to replace the strip lighting on the back of the switch panel, the following components are required:
Inverter - Qty 1
4 to 1 Wire Connector - Qty 1
Strip Lights:
Qty 1 - (300mm x 20mm)
Qty 1 - (200mm x 20mm)
Qty 2 - (100mm x 20mm)
Internal Reference:
PNL-SR290AJ00
