240 260 Sundancer, 240 270 Sundeck, 245 Weekender, 250 Amberjack 1999-2009-ish
ELC-008681-ASSY-B
Please click here see our Library/Tech Center for videos, articles, and FAQ's
- Boat Manufacturer: Sea Ray
- OEM Part#*: Gauge: 1185271, 1716649, 1588045. Switch:1185255 (Style A) or 1588136 (Style B) or 1307438 (Style C)
- Fits Models*: 2000-2002 240 Sundancer, 1999-2002 260 Sundancer, 2000-09 240 Sundeck, 2002-07 270 Sundeck , 2000 - 2005 245 Weekender, 2006-07 250 Amberjack
- Construction: Acrylic 3/16" standard, HD Package Available
- Accessory Panels Available: N/A
- Switch Kit Available: SKU#
* May fit other models/years, Part# for search/reference only
OPTIONS/SPECIFICATIONS:
NOTE: If you are having any issues with your peanut style switch pad or your EIM Electronic Interface Module, we have a complete replacement system available that will convert your boat to reliable Carling individual switches. The system includes a new Premium panel set. Just click the link for "EIM Systems" in the top border by our logo to learn more.

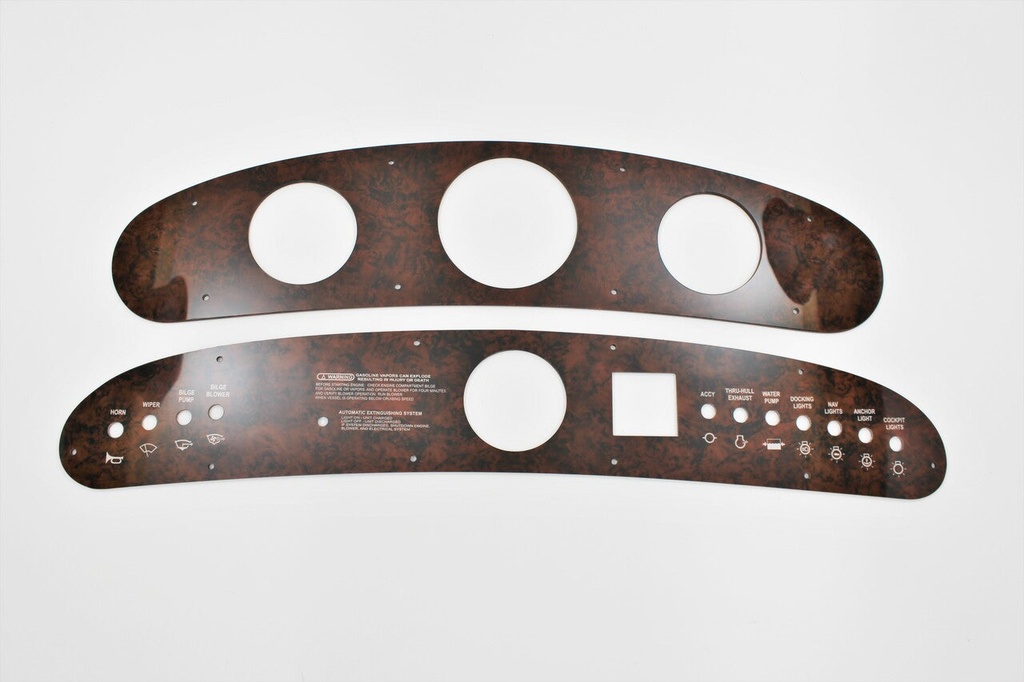

This is a 2 piece panel set. 1 gauge panel and 1 switch panel
Gauge Panel:
Style-A: 7 gauge layout
Style-B: 6 gauge layout
Style-C: 3 gauge layout (Smartcraft)
Switch Panel:
Style-A: Single 2" round cutout in the center for stereo remote or depth gauge
Style-B: No cutouts for accessories
Style-C: Two 2" cutouts for stereo remote and depth finder
Style-D: For newer model boats with lighted tip toggle switches- There are many variations, we will need to see a picture of your existing panel. There is a $75 extra charge for the engraving and switch cutouts.
Style-E: Replaces your ignition switch peanut shaped panel with engraved text and proper cutouts for the ignition switch and automatic extinguisher lamp. Please attach a photo of your existing panel. There is a $65 extra charge for this option.
Switches for STYLE-D Panels:
Switches are sold separately.
On/Off SP - ELC-008655-ASSY-B (SR # 1757312 )
Horn Button - ELC-008902 (SR #762955 )
On/Off DP Nav - ELC-008681-ASSY-B (SR # 1761354 )
Trim Tab Actuator - ELC-008058 (SR # 709501 )
Trim Tab Switch - ELC-009083 (SR # 709493 )
Ignition Switch - Keyed - ELC-012101 (SR# 1192921, 1409366)
Ignition Switch - Toggle - ELC-008700-ASSY-B (SR# 1884033)
Specifications
| Gauge Panel Style | Style A or Style B or Style C |
| Switch Panel Style | Style A or Style B or Style C or Style D +$75.00 or Style E +$65.00 |
| Custom Cutout/Text (Up To 2 Cutouts & 3 Text Changes) | No or YES (Type Custom Work +$35) |
| Choose Panel Color | Cherry Burl or Carbon Fiber or Blackwood Burl or Aqua Stardust or Flat Black or White Stardust or High Gloss Black or Teal Stardust or Gun Metal or Black Stardust or Light Silver |
Internal Reference:
PNL-SR225-270SD-DA-SD-WE-AJ
