240, 260 Sundancer, 240 270 Sundeck, 245 Weekender 250 Amberjack 1999-2008-ish
SUR-000009-1791788
Please click here see our Library/Tech Center for videos, articles, and FAQ's
- Boat Manufacturer: Sea Ray
- OEM Part#*: Gauge: 1185271, 1716649, 1588045. Switch:1185255 (Style A) or 1588136 (Style B) or 1307438 (Style C)
- Fits Models*: 2000-2002 240 Sundancer, 1999-2002 260 Sundancer, 2000-09 240 Sundeck, 2002-07 270 Sundeck , 2000 - 2005 245 Weekender, 2006-07 250 Amberjack

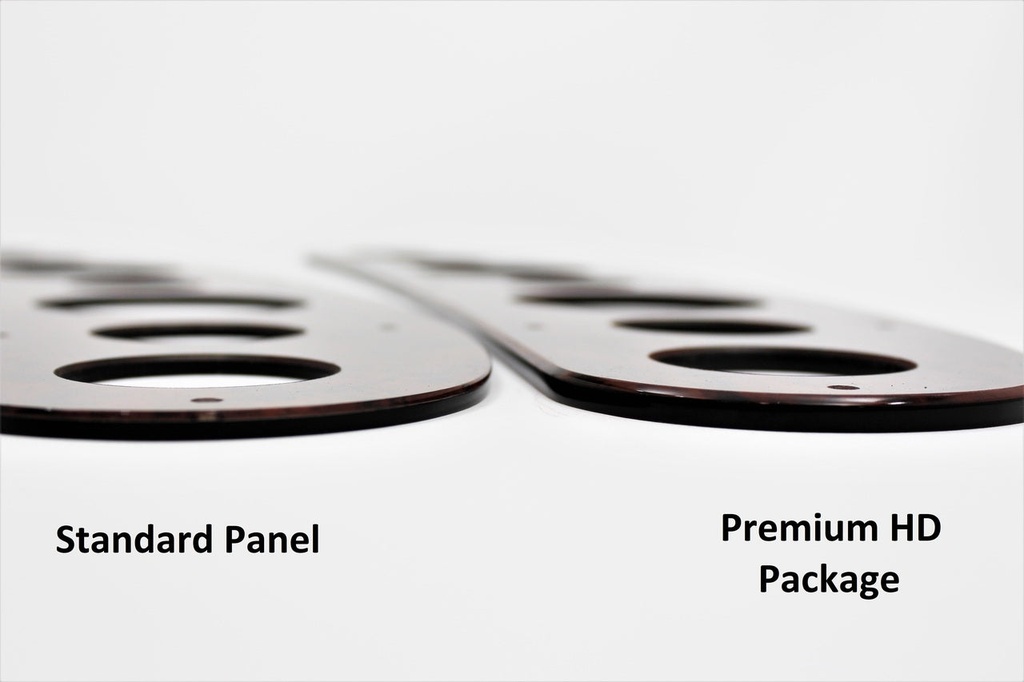

- Construction: Acrylic 3/16" standard, HD Package Available
- Accessory Panels Available: N/A
- Switch Kit Available: SKU#
* May fit other models/years, Part# for search/reference only
OPTIONS/SPECIFICATIONS:
This is a 2 piece panel set. 1 gauge panel and 1 switch panel

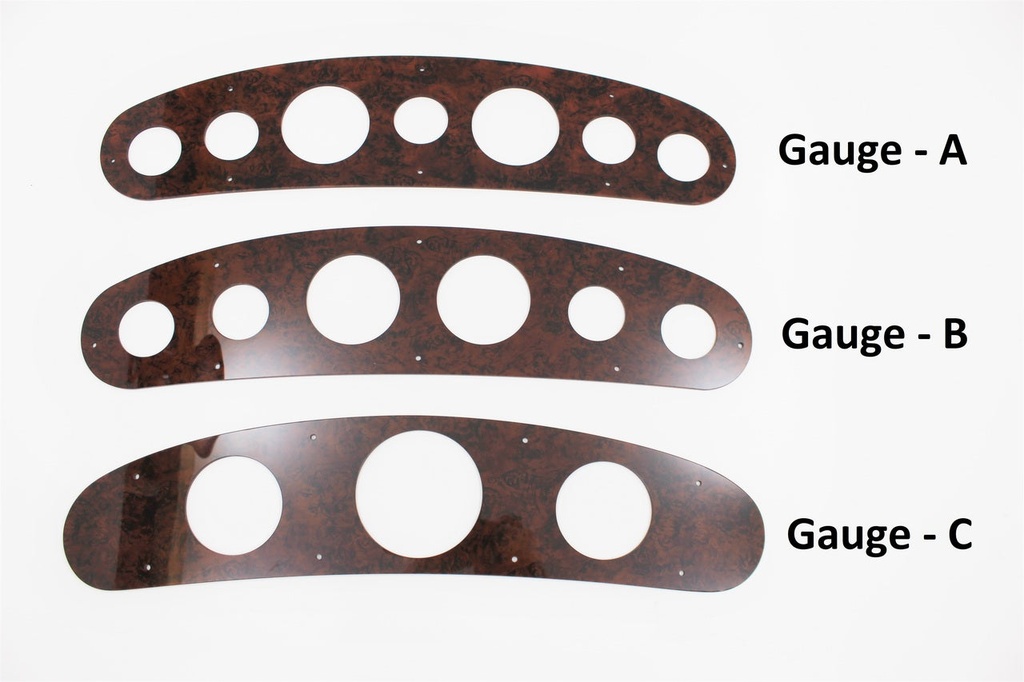

Gauge Panel:
Style-A: 7 gauge layout
Style-B: 6 gauge layout
Style-C: 3 gauge layout (Smartcraft)

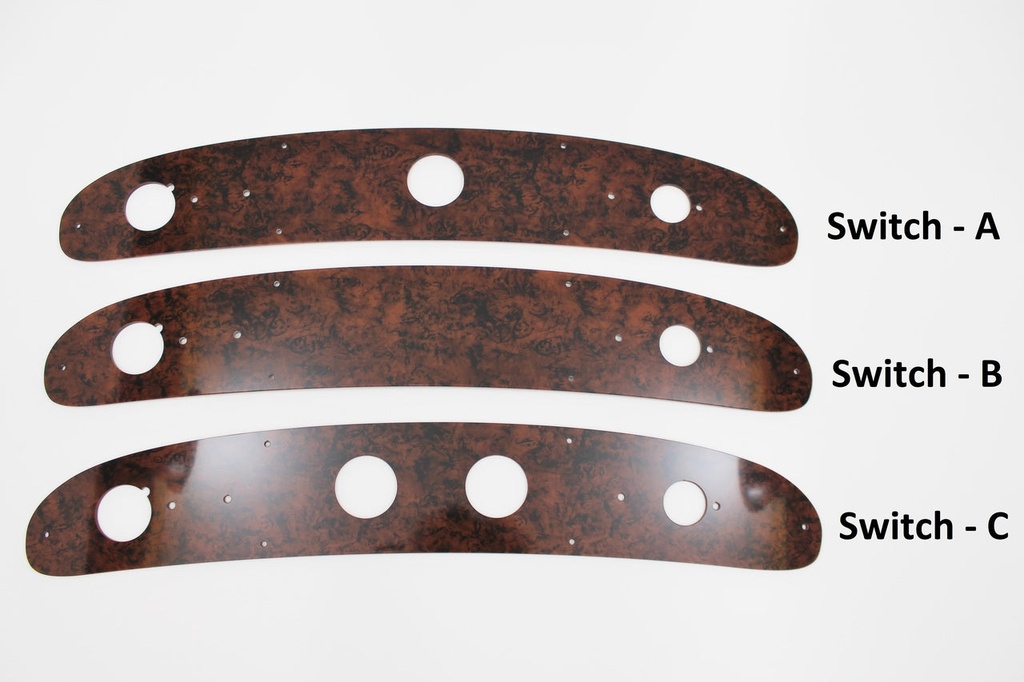

Switch Panel:
Style-A: Single 2" round cutout in the center for stereo remote or depth gauge
Style-B: No cutouts for accessories
Style-C: Two 2" cutouts for stereo remote and depth finder

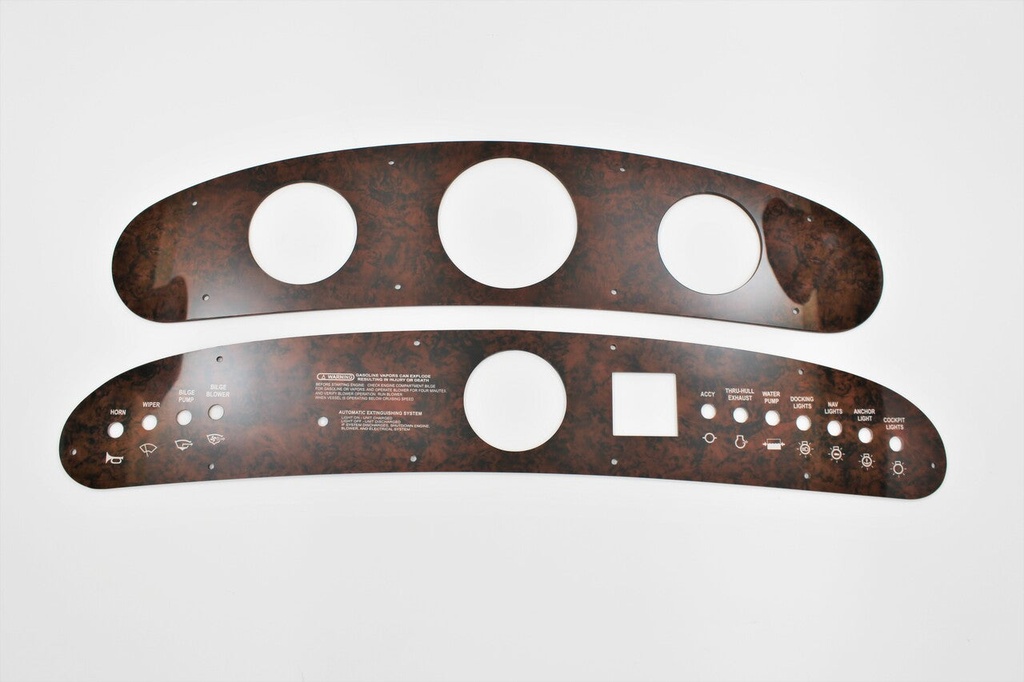

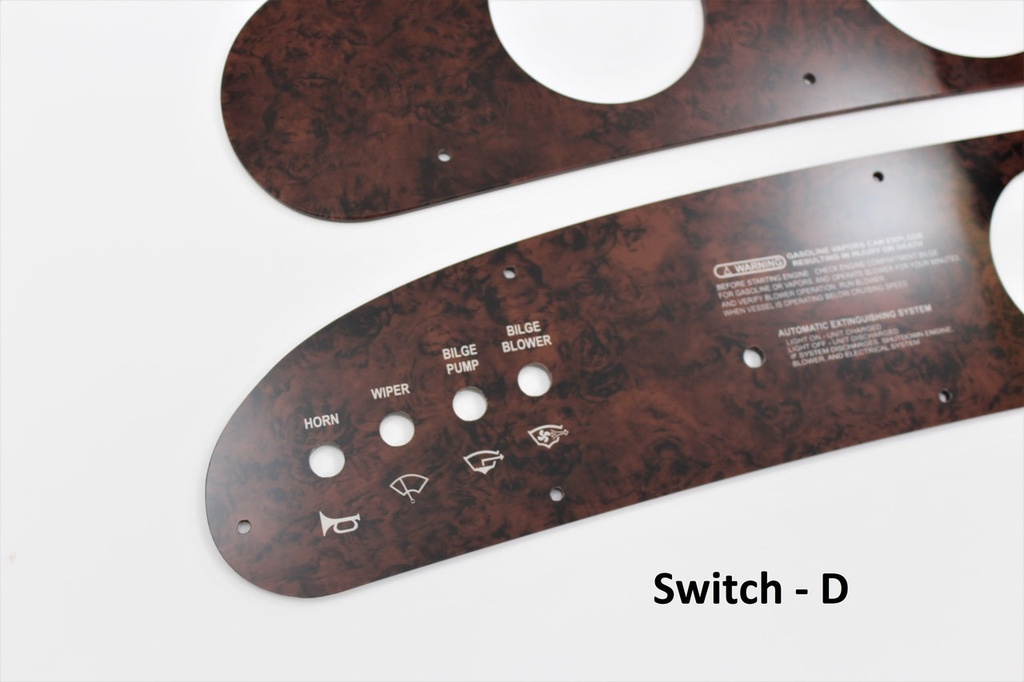

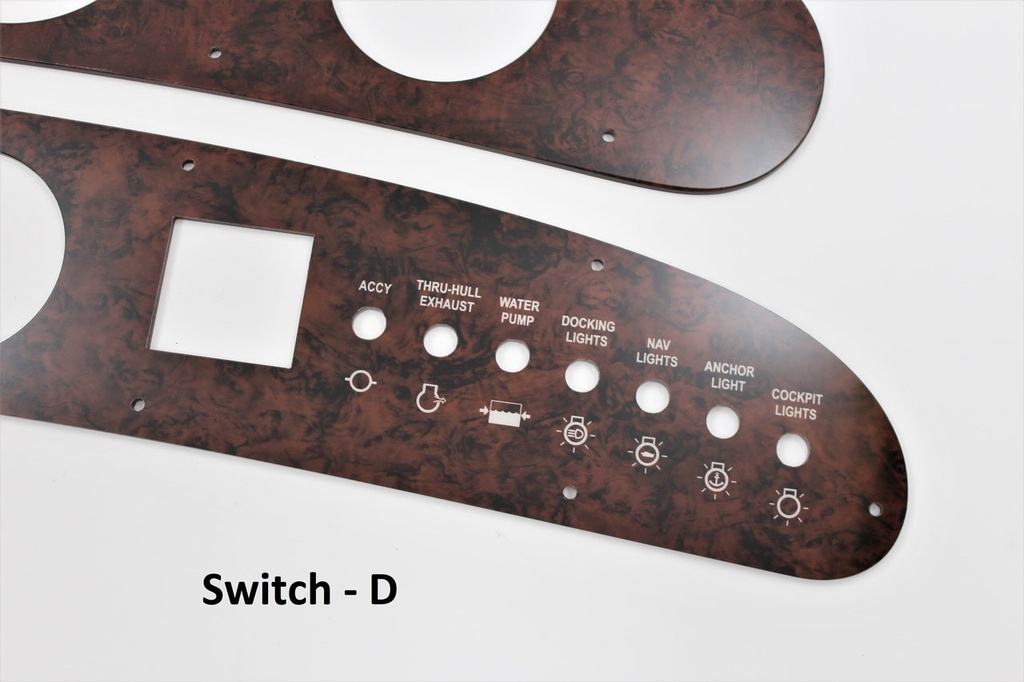

Style-D: For newer model boats with lighted tip toggle switches- There are many variations, we will need to see a picture of your existing panel. There is a $75 extra charge for the engraving and switch cutouts.

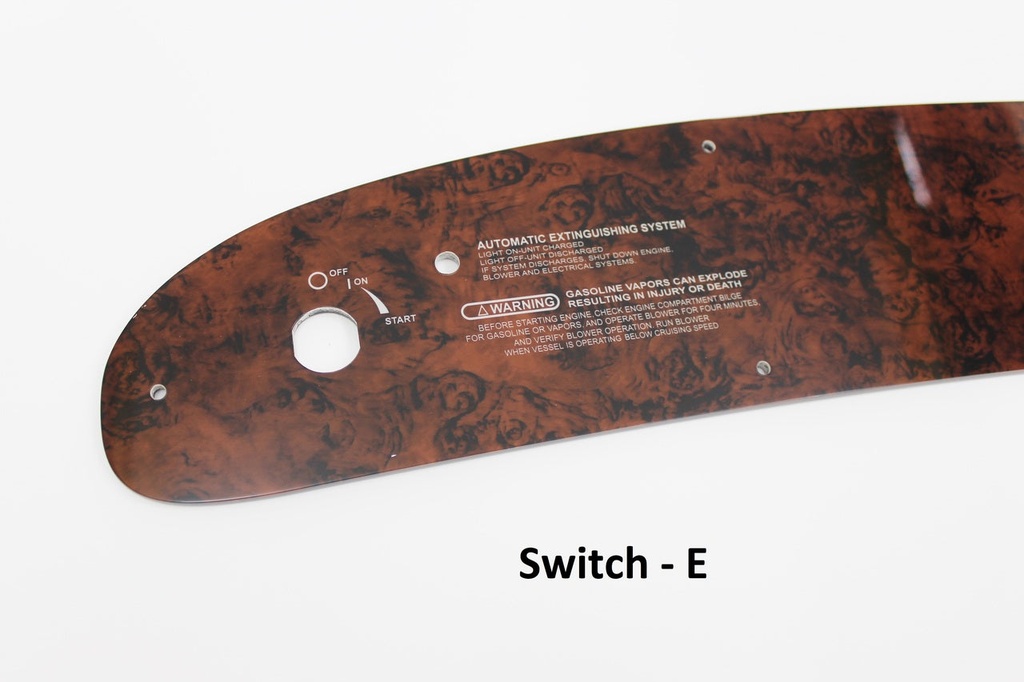

Style-E: Replaces your ignition switch peanut shaped panel with engraved text and proper cutouts for the ignition switch and automatic extinguisher lamp. Please attach a photo of your existing panel. There is a $65 extra charge for this option.
Switches for STYLE-D Panels:
Switches are sold separately.
On/Off SP - ELC-008657-B (SR # 1757312 )
Horn Button - ELC-008902 (SR #762955 )
On/Off DP Nav - ELC-ASSY-008683-B (SR # 1761354 )
Trim Tab Actuator - ELC-008058 (SR # 709501 )
Trim Tab Switch - ELC-009083 (SR # 709493 )
Ignition Switch - ELC-012101
Internal Reference:
PNL-SR225-270SD-DA-SD-WE-AJ
