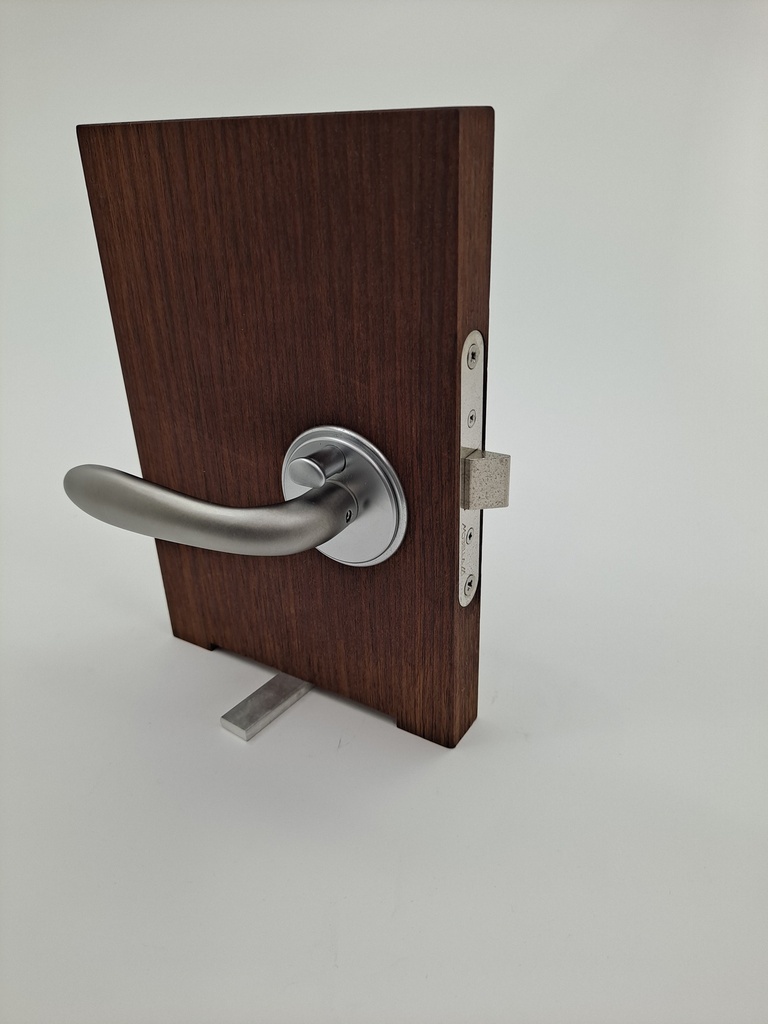

Mobella McCoy Portofino Satin - Swing Door Lockset

ELC-008681-ASSY-B

Mobella McCoy Series Swing Door Latch

All Units have the privacy lock
Determine door swing; RO, LO, RI, LI, refer to diagram
Determine door thickness
Color: Satin
Door Strike is NOT INCLUDED with Latch, please email us at [email protected] for assistance with door strikes
note on BRASS: We do have a limited number of brass handles and escutcheon plates available, please email us if you need brass components.
To determine the correct door swing, picture yourself standing outside of the private room. If the HINGE is on the right it is a "RIGHT HAND" swing. If the HINGE is on the left then it is a "LEFT HAND" swing. If the door swings out towards you then it is a "OUT" version. If the door swings into the private room then it is a "IN" version.

This part is used on many brands and models of boats.
FP Part # HDW-004034, Southco Part # MA-01-220-02-20, 22-30mm (7/8" - 1-3/16"), RO/LI door swing
FP Part # HDW-004036, Southco Part # MA-01-420-02-20, 22-30mm (7/8" - 1-3/16"), RI/LO door swing
FP Part # HDW-004039, Southco Part # MA-01-221-02-20, 28-37mm (1-1/8" - 1-1/2"), RO/LI door swing
FP Part # HDW-004040, Southco Part # MA-01-421-02-20, 28-37mm (1-1/8" - 1-1/2"), RI/LO door swing

Door Swing	Right In / Left Out or Right Out / Left In
Choose Thickness	22 - 30mm or 28 - 37mm
