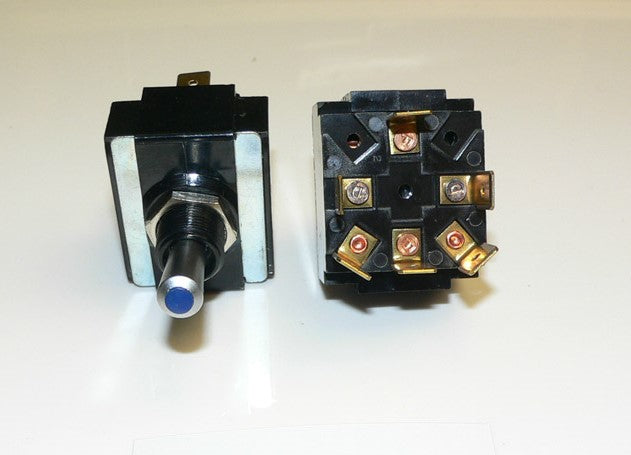

LT-25X1-2 Carling OFF/ON/ON Double Pole lighted tip toggle switch
PNL-BW180VT-stg
- Independent special Sea Ray Blue lamp with satin handle. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the handle position as opposed to standard "dependent" lamps that get their power internally when the handle moves to the "on" position.
- 6 terminal; The two terminals marked "F" at the top middle and bottom middle positions are for the lamp, The center terminals on the left and right are power in. The two power terminals are independent of each other.
- The switch handle in the bottom position is OFF. Flip the handle to the middle position and the lower left terminal is activated. Flipping the handle to the top position activates both the lower left and lower right terminals. Be sure that both power terminals are wired with incoming voltage
- Common use is Navigation lights
- Lamp is 12VDC.
- Part # LT-25X1-2. Sea Ray part # 1851952, 1944878
- The "Special Sea Ray Blue" lens is darker blue than the standard blue lens. The standard blue lens appears blue/green. Be cautious as both lenses are used on various Sea Ray boats.
Product Overview
If you are replacing a worn switch, LT 25X1 2 Carling OFF/ON/ON Double Pole lighted tip toggle switch is a dependable option that helps you finish the job without extra hassle. It is commonly used for indicator and control circuits. It is a expert marine replacement part. It is built to be long lasting and finished to a premium standard. If you want help confirming fitment or wiring, our customer service is responsive. You will speak with personable people first support with real know how.
Specifications and Details
Web Listing Details
- Independent special Sea Ray Blue lamp with satin handle. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the handle position as opposed to standard "dependent" lamps that get their power internally when the handle moves to the "on" position.
- 6 terminal; The two terminals marked "F" at the top middle and bottom middle positions are for the lamp, The center terminals on the left and right are power in. The two power terminals are independent of each other.
- The switch handle in the bottom position is OFF. Flip the handle to the middle position and the lower left terminal is activated. Flipping the handle to the top position activates both the lower left and lower right terminals. Be sure that both power terminals are wired with incoming voltage
- Common use is Navigation lights
- Lamp is 12VDC.
- Part # LT-25X1-2. Sea Ray part # 1851952, 1944878
- The "Special Sea Ray Blue" lens is darker blue than the standard blue lens. The standard blue lens appears blue/green. Be cautious as both lenses are used on various Sea Ray boats.
Fitment and Ordering Support
Customers use LT 25X1 2 Carling OFF/ON/ON Double Pole lighted tip toggle switch for indicator and control circuits in many marine setups. It is typically selected when you need a reliable replacement that performs well in marine conditions and delivers a premium result. Before ordering, confirm the switch function and terminals, then compare photos and specifications to what is installed now. If anything is unclear, our support team is responsive. You will reach easy to work with people first support with real know how who can help confirm the right part.
