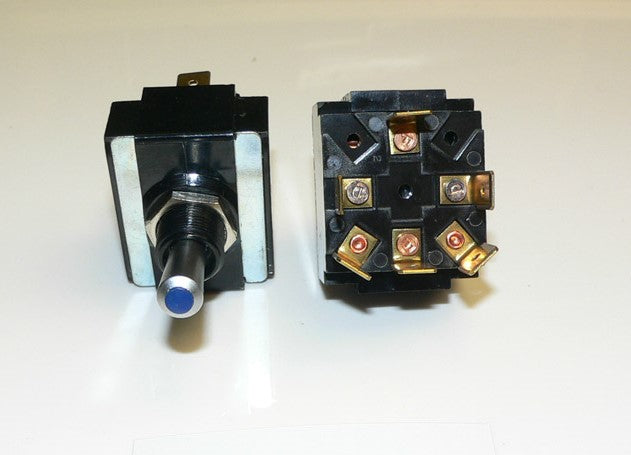

LT-25X1-2 Carling OFF/ON/ON Double Pole lighted tip toggle switch
SUR-000009-1791788
Carlingswitch OFF/ON/ON Double Pole, lighted tip toggle switch. Independent lamp
- Independent special Sea Ray Blue lamp with satin handle. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the handle position as opposed to standard "dependent" lamps that get their power internally when the handle moves to the "on" position.

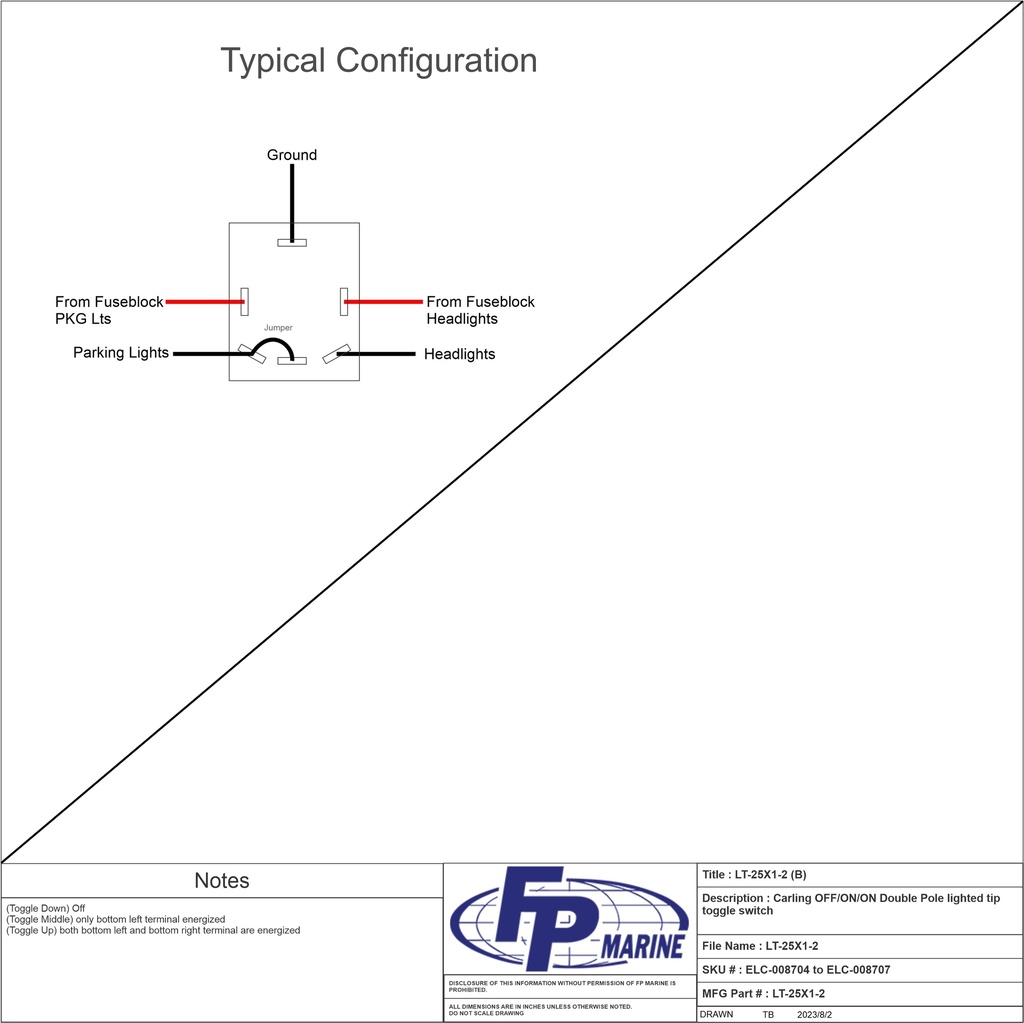

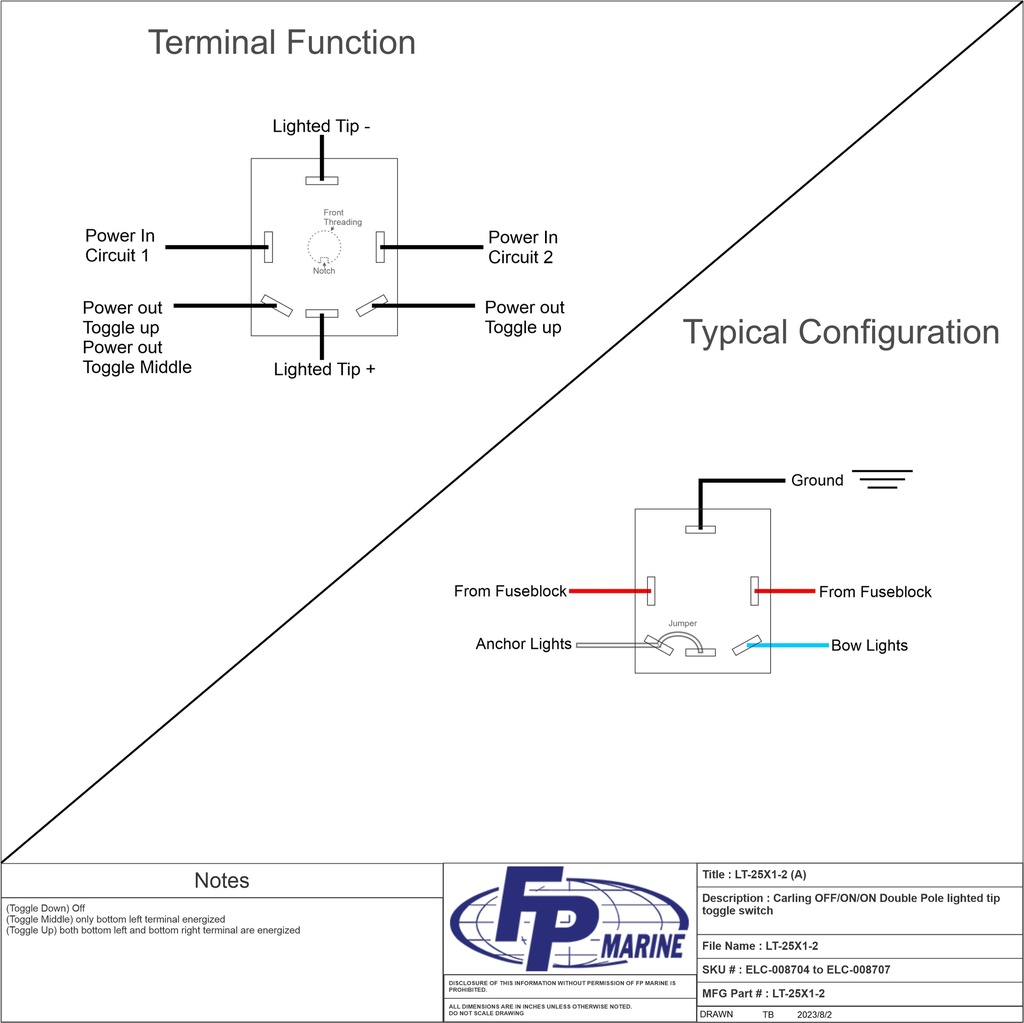

- 6 terminal; The two terminals marked "F" at the top middle and bottom middle positions are for the lamp, The center terminals on the left and right are power in. The two power terminals are independent of each other.
- The switch handle in the bottom position is OFF. Flip the handle to the middle position and the lower left terminal is activated. Flipping the handle to the top position activates both the lower left and lower right terminals. Be sure that both power terminals are wired with incoming voltage
- Common use is Navigation lights
- Lamp is 12VDC.
- Part # LT-25X1-2. Sea Ray part # 1851952, 1944878

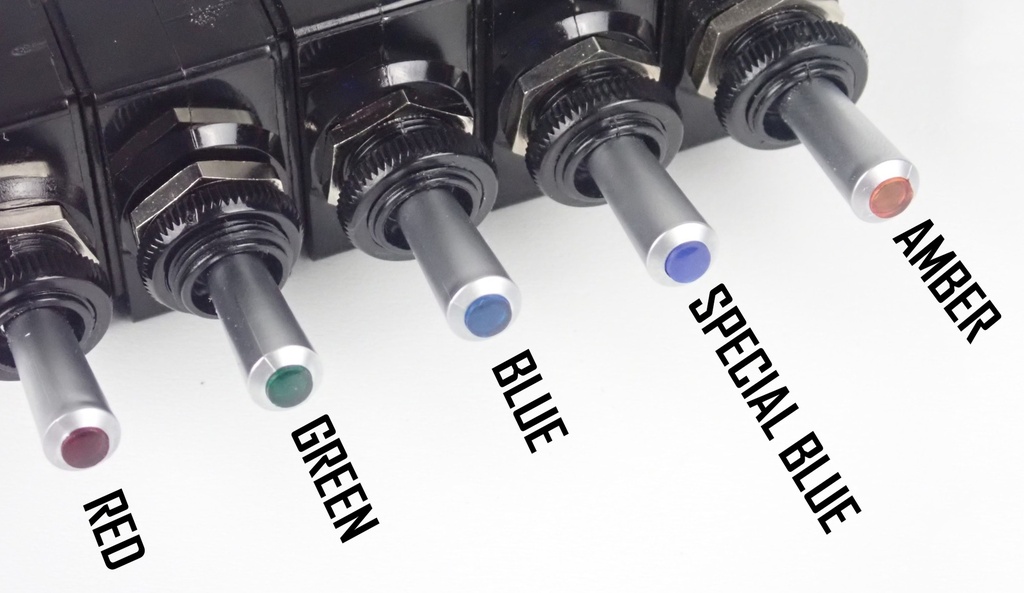

- The "Special Sea Ray Blue" lens is darker blue than the standard blue lens. The standard blue lens appears blue/green. Be cautious as both lenses are used on various Sea Ray boats.
