LT-25X1-1 Carling OFF/ON/(ON) Momentary Double Pole lighted tip toggle switch - Special Ignition
PNL-BW180VT-stg

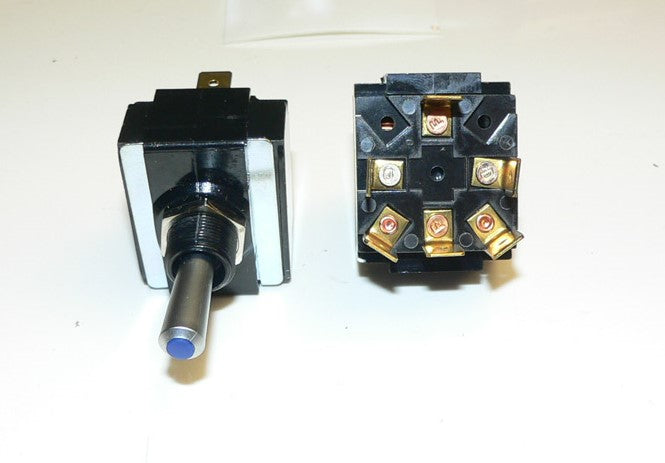

Carlingswitch OFF/ON/(ON) Momentary Double Pole, lighted tip toggle switch. Special Ignition configuration.
- An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the handle position as opposed to standard "dependent" lamps that get their power internally when the handle moves to the "on" position. Previous version of this switch was a "dependent" lamp and did not have the bottom middle terminal. 1884033
- 6 terminal; The two terminals marked "F" at the top middle and bottom middle positions are for the lamp, The center terminals on the left and right are power in. In the "ON" position, the bottom left terminal is activated. In the (ON) momentary position, both of the bottom terminals are activated. If you jump the power "in" terminals, both sides of the switch will be on the same circuit. For ignition purposes, you can run the Ignition "ON" and the "Start solenoid" on different circuits by not jumping the power "in" terminals.
- The switch handle in the down position is OFF. Flip the handle to the center position and one pole is activated as explained above. The momentary (ON) or "up" position activates both poles (both sides of the switch). The handle is spring loaded and when released will return to the ON position.
- Lamp is 12VDC.
- Special configuration for Ignition applications. Generators, main engines.
- Part # LT-25X1-1. Sea Ray part # 1877878, 1884033, 1944877.
- The "Special Sea Ray Blue" lens is darker blue than the standard blue lens. The standard blue lens appears blue/green. Be cautious as both lenses are used on various Sea Ray boats.
Product Overview
If you are replacing a worn switch, LT 25X1 1 Carling OFF/ON/(ON) Momentary Double Pole lighted tip toggle switch Special Ignition is a trusted option that helps you finish the job without extra hassle. It is commonly used for ignition and starting circuits. It is a professional marine replacement part. It is built to be durable and finished to a premium standard. If you want help confirming fitment or wiring, our support team is responsive. You will speak with easy to work with real people with real hands on expertise.
Specifications and Details
Web Listing Details
Carlingswitch OFF/ON/(ON) Momentary Double Pole, lighted tip toggle switch. Special Ignition configuration.
- An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the handle position as opposed to standard "dependent" lamps that get their power internally when the handle moves to the "on" position. Previous version of this switch was a "dependent" lamp and did not have the bottom middle terminal. 1884033
- 6 terminal; The two terminals marked "F" at the top middle and bottom middle positions are for the lamp, The center terminals on the left and right are power in. In the "ON" position, the bottom left terminal is activated. In the (ON) momentary position, both of the bottom terminals are activated. If you jump the power "in" terminals, both sides of the switch will be on the same circuit. For ignition purposes, you can run the Ignition "ON" and the "Start solenoid" on different circuits by not jumping the power "in" terminals.
- The switch handle in the down position is OFF. Flip the handle to the center position and one pole is activated as explained above. The momentary (ON) or "up" position activates both poles (both sides of the switch). The handle is spring loaded and when released will return to the ON position.
- Lamp is 12VDC.
- Special configuration for Ignition applications. Generators, main engines.
- Part # LT-25X1-1. Sea Ray part # 1877878, 1884033, 1944877.
- The "Special Sea Ray Blue" lens is darker blue than the standard blue lens. The standard blue lens appears blue/green. Be cautious as both lenses are used on various Sea Ray boats.
Fitment and Ordering Support
Customers use LT 25X1 1 Carling OFF/ON/(ON) Momentary Double Pole lighted tip toggle switch Special Ignition for ignition and starting circuits in many marine setups. It is typically selected when you need a reliable replacement that performs well in marine conditions and delivers a high quality result. Before ordering, confirm the switch function and terminals, then compare photos and specifications to what is installed now. If anything is unclear, our service team is responsive. You will reach friendly people first support with real know how who can help confirm the right part.
