LT-25X1-1 Carling OFF/ON/(ON) Momentary Double Pole lighted tip toggle switch - Special Ignition
SUR-000009-1791788

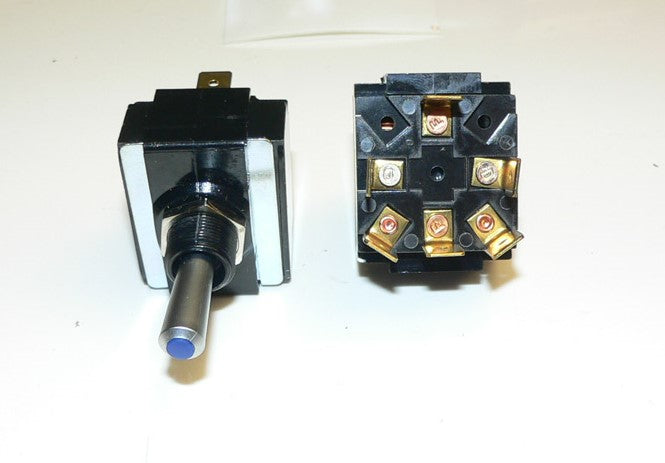

Carlingswitch OFF/ON/(ON) Momentary Double Pole, lighted tip toggle switch. Special Ignition configuration.
- Independent special Sea Ray Blue lamp with satin handle. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the handle position as opposed to standard "dependent" lamps that get their power internally when the handle moves to the "on" position.

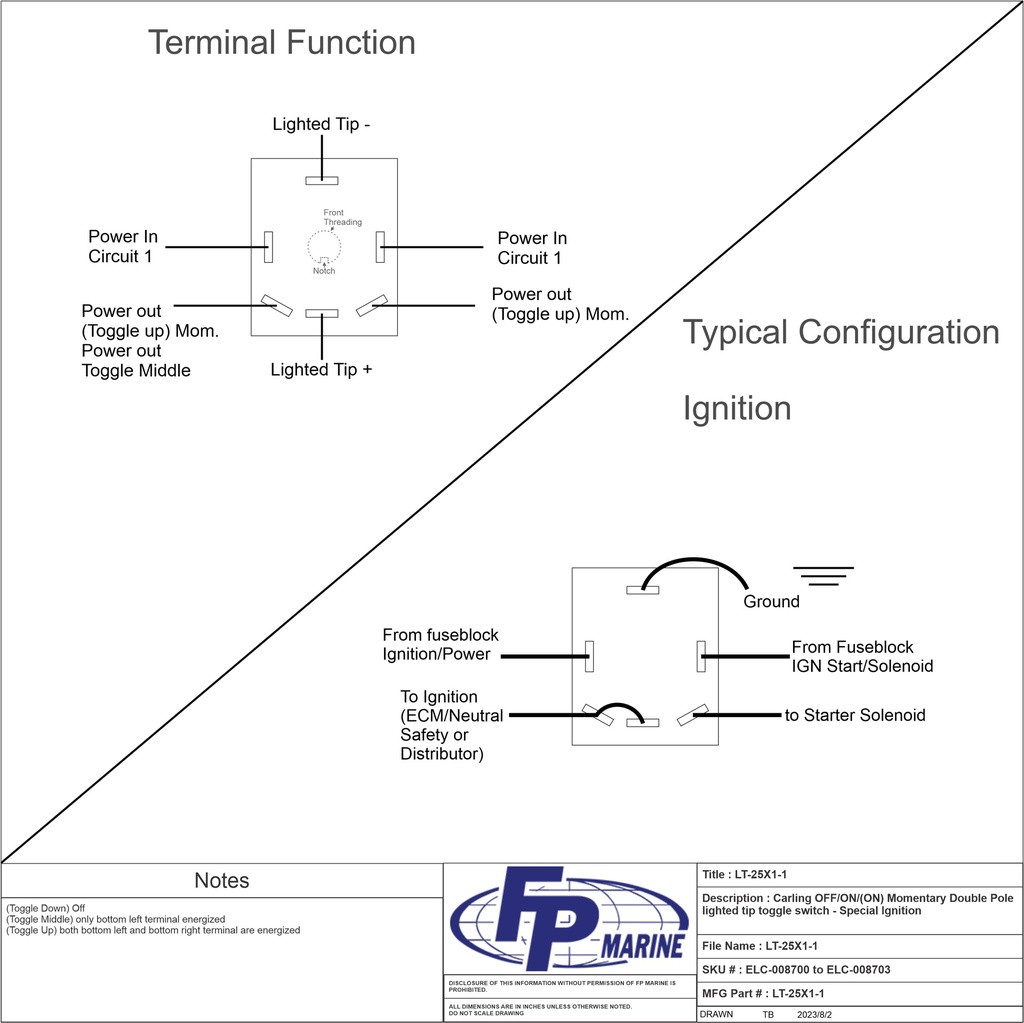

- 6 terminal; The two terminals marked "F" at the top middle and bottom middle positions are for the lamp, The center terminals on the left and right are power in. In the "ON" position, the bottom left terminal is activated. In the (ON) momentary position, both of the bottom terminals are activated. If you jump the power "in" terminals, both sides of the switch will be on the same circuit. For ignition purposes, you can run the Ignition "ON" and the "Start solenoid" on different circuits by not jumping the power "in" terminals.
- The switch handle in the down position is OFF. Flip the handle to the center position and one pole is activated as explained above. The (ON) or "up" position activated both poles. the handle is spring loaded and when released will return to the ON position.
- Lamp is 12VDC.
- Special configuration for Ignition applications. Generators, main engines.
- Part # LT-25X1-1. Sea Ray part # 1877878, 1884033, 1944877.

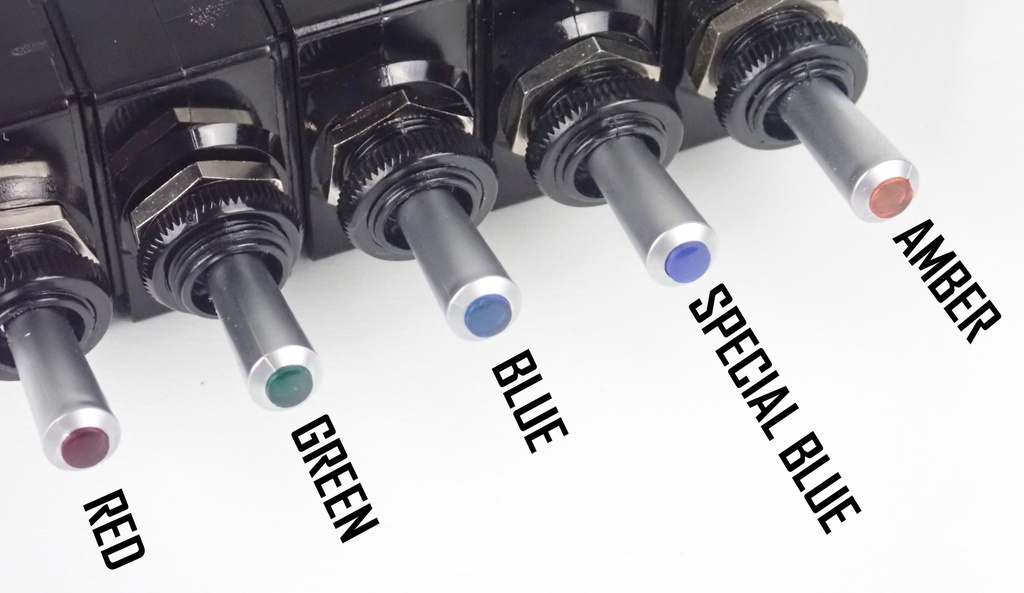

- The "Special Sea Ray Blue" lens is darker blue than the standard blue lens. The standard blue lens appears blue/green. Be cautious as both lenses are used on various Sea Ray boats.
