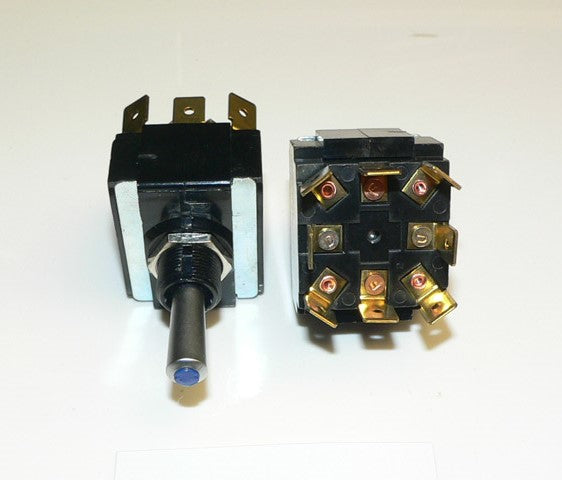

LT-2581-1 Carling DPDT (ON)/OFF/(ON) Independent Lamp - Lighted Tip Toggle Switch, 8 Terminal
PNL-BW180VT-stg
- Independent lamp with satin handle. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the handle position as opposed to standard "dependent" lamps that get their power internally when the handle moves to the "on" position.
- 8 terminal; The two terminals marked "F" at the top middle and bottom middle positions are for the lamp, The center terminals on the left and right are power in, The upper left terminal and the upper right terminal are MOMENTARY power out with the handle in the down position, the two terminals are independent of each other. The lower left terminal and the lower right terminal are MOMENTARY power out with the handle in the up position, the two terminals are independent of each other.
- Switch is normally OFF. The handle is spring loaded and will return to the OFF position after releasing from the up or down momentary positions.
- Lamp is 12VDC.
- Common for Marine, RV, automotive, and other 12 volt DC applications. Typically used for trim tabs, linear actuators on hatch lifts, electric seats, window vents. Also used for two way air horns or dual horns, electric windows or other small motors. Can be used in conjunction with solenoids on larger motors like a windlass, or heavier application.
- Part # LT-2581
Product Overview
LT 2581 1 Carling DPDT (ON)/OFF/(ON) Independent Lamp Lighted Tip Toggle Switch, 8 Terminal is a practical pick for service work when you want control you can count on. It is commonly used for indicator and control circuits. This is a updated option for customers refreshing an older setup. It is a pro grade marine replacement part. It is built to be long lasting and finished to a premium standard. If you want help confirming fitment or wiring, our customer service is supportive. You will speak with easy to work with people first support with real hands on expertise.
Specifications and Details
Web Listing Details
Carlingswitch (ON)/OFF/(ON) Momentary Double Pole, lighted tip toggle switch.- Independent lamp with satin handle. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the handle position as opposed to standard "dependent" lamps that get their power internally when the handle moves to the "on" position.
- 8 terminal; The two terminals marked "F" at the top middle and bottom middle positions are for the lamp, The center terminals on the left and right are power in, The upper left terminal and the upper right terminal are MOMENTARY power out with the handle in the down position, the two terminals are independent of each other. The lower left terminal and the lower right terminal are MOMENTARY power out with the handle in the up position, the two terminals are independent of each other.
- Switch is normally OFF. The handle is spring loaded and will return to the OFF position after releasing from the up or down momentary positions.
- Lamp is 12VDC.
- Common for Marine, RV, automotive, and other 12 volt DC applications. Typically used for trim tabs, linear actuators on hatch lifts, electric seats, window vents. Also used for two way air horns or dual horns, electric windows or other small motors. Can be used in conjunction with solenoids on larger motors like a windlass, or heavier application.
- Part # LT-2581
Fitment and Ordering Support
In marine electrical service work, LT 2581 1 Carling DPDT (ON)/OFF/(ON) Independent Lamp Lighted Tip Toggle Switch, 8 Terminal supports indicator and control circuits. It is typically selected when you need a dependable replacement that performs well in marine conditions and delivers a quality result. Before ordering, confirm the switch function and terminals, then compare photos and specifications to what is installed now. If anything is unclear, our support team is helpful. You will reach easy to work with people first support with real hands on expertise who can help confirm the right part.
