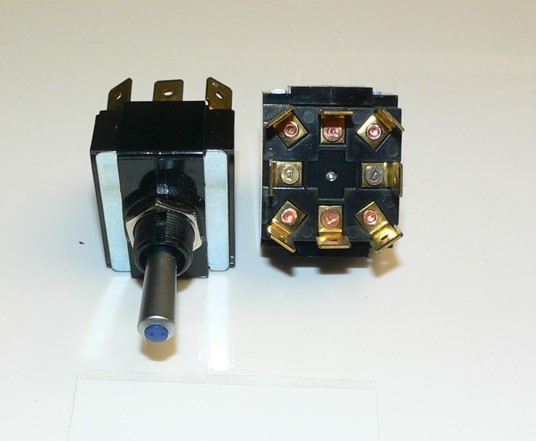

LT-2561 ON/OFF/ON DP lighted tip toggle switch
PNL-BW180VT-stg
Toggle Switch for Sea Ray and Other Boats
OEM-quality marine electrical switch engineered for reliable boat system control. For Sea Ray, Boston Whaler, Grady White, and other cruisers.
Product Specifications
Type: Toggle Switch
Configuration: Switch - Standard
Application: boat electrical control systems
SKU: Contact for details
Details: Carlingswitch ON/OFF/ON Double Pole, lighted tip toggle switch. Independent lamp with satin handle. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the handle position as opposed to standard "dependent" lamps that get their power internally when the handle moves to the "on" position. 8 terminal; The two terminals marked "F" at the top middle and bottom middle positions are for the lamp, The center terminals on the left and right are power in, The upper left terminal and the upper right terminal are power out with the handle in the down position, the two terminals are independent of each other. The lower left terminal and the lower right terminal are power out with the handle in the up position, the two terminals are independent of each other. Lamp is 12VDC. Common for Marine, RV, automotive, and other 12 volt DC applications. Typically used for navigation lights or two different circuits that need to be independent of each other. Part # LT-2561-1. Sea Ray Part # 1944876
Why OEM Electrical Switches Matter
OEM electrical switches are engineered for your boat's voltage and amperage specifications. They deliver reliable operation, proper electrical protection, and long-term durability in marine environments. Using correct switches prevents electrical system failures, fires, and equipment damage.
Quality electrical components ensure system safety and reliability. Always use OEM switches rated for your boat's electrical system specifications.
Quick FAQs
Will this switch fit my boat?
Designed for Sea Ray and other standard boats. Electrical switches must match your boat's voltage and amperage specifications. Verify compatibility before ordering. Contact [email protected] with your boat model and electrical system details.
What's the difference between Single Pole and Double Pole?
Single Pole switches control one circuit. Double Pole switches control two independent circuits simultaneously. Choose based on your boat's electrical configuration. Contact [email protected] if unsure which type you need.
What's the difference between Momentary and Locking?
Momentary switches activate only while pressed. Locking (or toggle) switches stay in position until toggled again. Choose based on your application. Wrong type can cause electrical system issues.
Can I use any electrical switch?
No. Electrical switches must match your boat's voltage (12V, 24V, etc.) and amperage rating exactly. Using wrong switches risks electrical fires and system failure. Always use OEM switches rated for your specific boat system. Never substitute with automotive or general-purpose switches.
Do you have switches for older boat models?
Yes. We stock electrical switches for boats from 1980s-current production. Contact [email protected] with your boat's model year and electrical system specifications.
