LT-2561 ON/OFF/ON DP Blue/Satin lighted tip toggle switch
PNL-BW180VT-stg

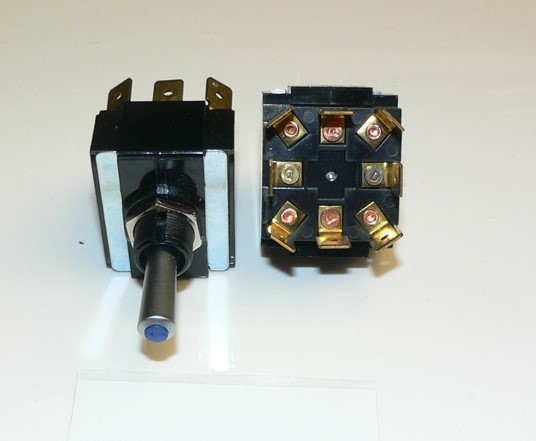

Carlingswitch ON/OFF/ON Double Pole, lighted tip toggle switch.
- Independent Red lamp with satin handle. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the handle position as opposed to standard "dependent" lamps that get their power internally when the handle moves to the "on" position.

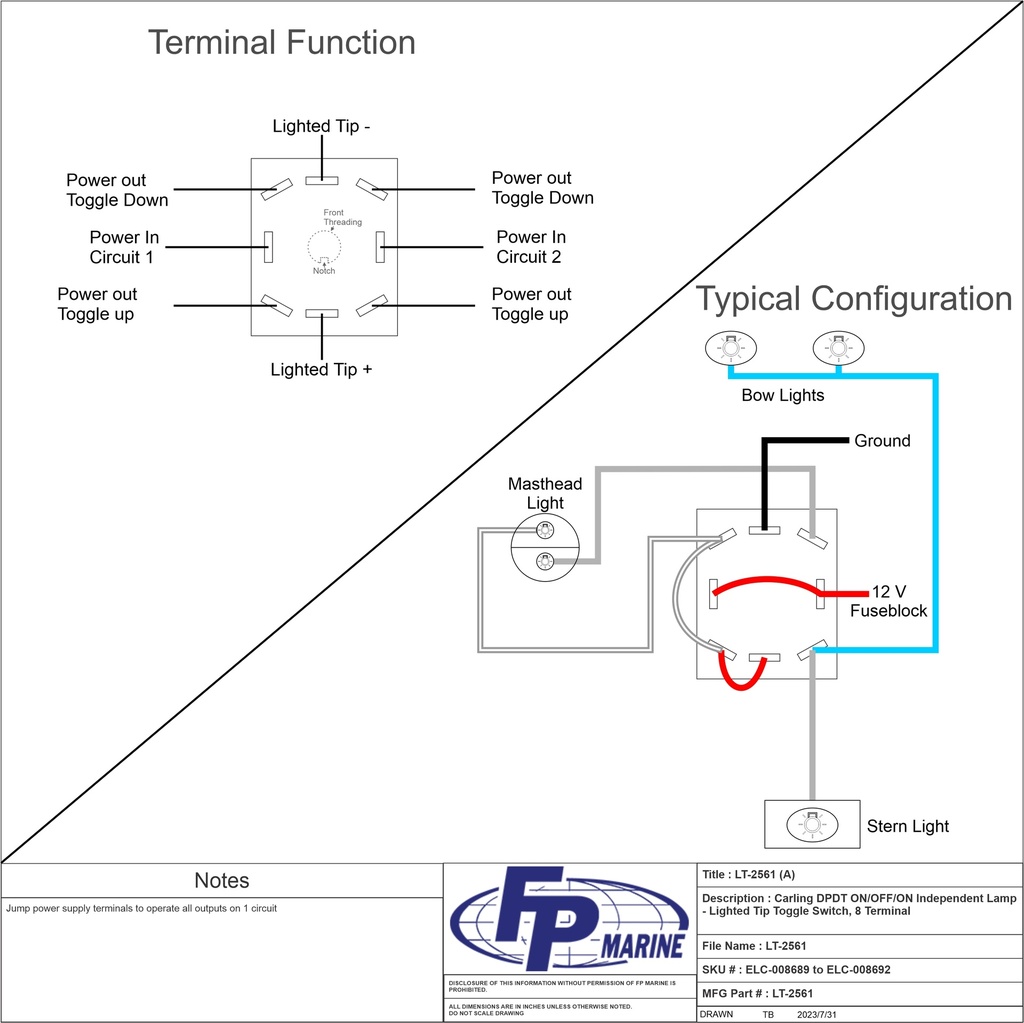

- 8 terminal; The two terminals marked "F" at the top middle and bottom middle positions are for the lamp, The center terminals on the left and right are power in, The upper left terminal and the upper right terminal are power out with the handle in the down position, the two terminals are independent of each other. The lower left terminal and the lower right terminal are power out with the handle in the up position, the two terminals are independent of each other.
- Lamp is 12VDC.

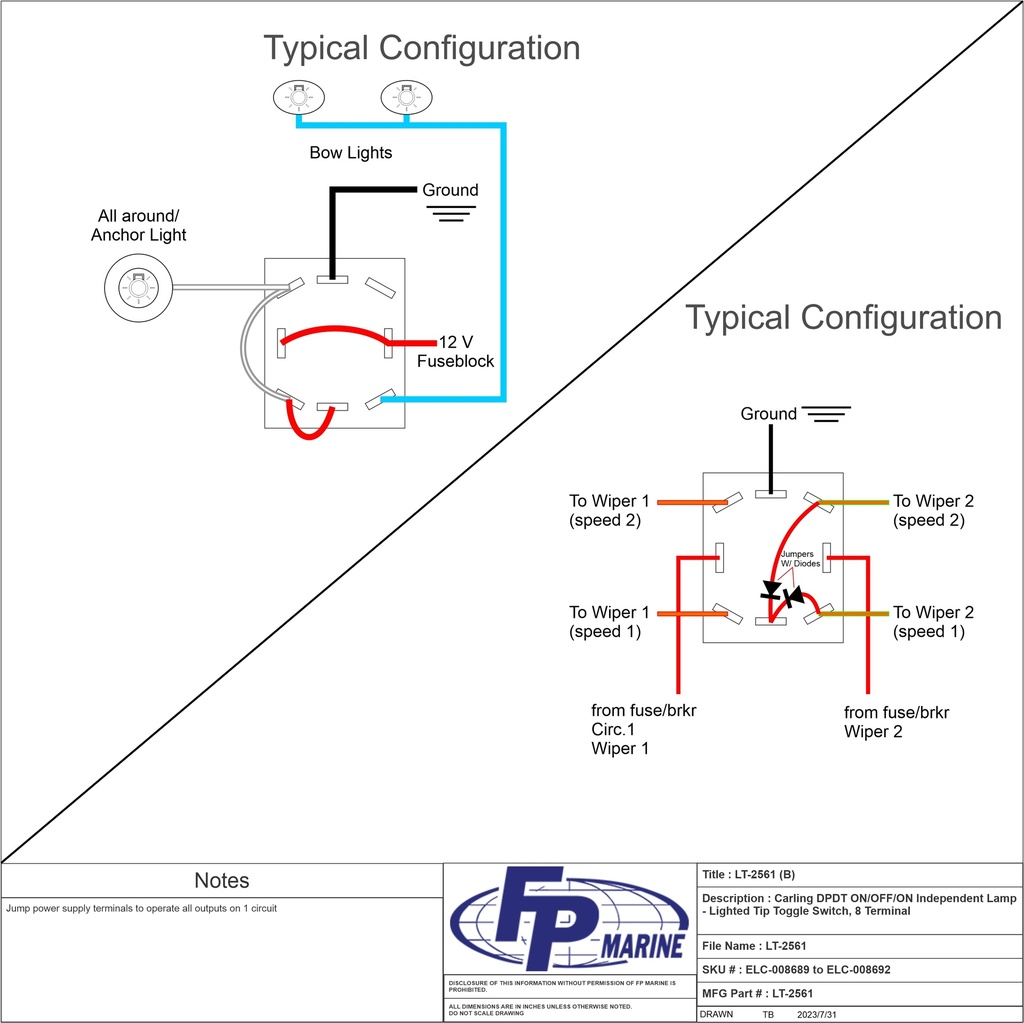

- Common for Marine, RV, automotive, and other 12 volt DC applications. Typically used for navigation lights or two different circuits that need to be independent of each other.
- Part # LT-2561-1.
- Sea Ray Part # 1944876
Product Overview
If you are replacing a worn switch, LT 2561 ON/OFF/ON DP Blue/Satin lighted tip toggle switch is a dependable option that helps you finish the job without extra hassle. It is commonly used for indicator and control circuits. It is a pro grade marine replacement part. It is built to be built to last and finished to a high quality standard. If you want help confirming fitment or wiring, our support team is helpful. You will speak with friendly people first support with real hands on expertise.
Specifications and Details
Web Listing Details
Carlingswitch ON/OFF/ON Double Pole, lighted tip toggle switch.
- Independent Red lamp with satin handle. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the handle position as opposed to standard "dependent" lamps that get their power internally when the handle moves to the "on" position.
- 8 terminal; The two terminals marked "F" at the top middle and bottom middle positions are for the lamp, The center terminals on the left and right are power in, The upper left terminal and the upper right terminal are power out with the handle in the down position, the two terminals are independent of each other. The lower left terminal and the lower right terminal are power out with the handle in the up position, the two terminals are independent of each other.
- Lamp is 12VDC.
- Common for Marine, RV, automotive, and other 12 volt DC applications. Typically used for navigation lights or two different circuits that need to be independent of each other.
- Part # LT-2561-1.
- Sea Ray Part # 1944876
Fitment and Ordering Support
LT 2561 ON/OFF/ON DP Blue/Satin lighted tip toggle switch is commonly used for indicator and control circuits. It is typically selected when you need a reliable replacement that performs well in marine conditions and delivers a high quality result. Before ordering, confirm the switch function and terminals, then compare photos and specifications to what is installed now. If anything is unclear, our support team is helpful. You will reach personable people first support with real experience who can help confirm the right part.
