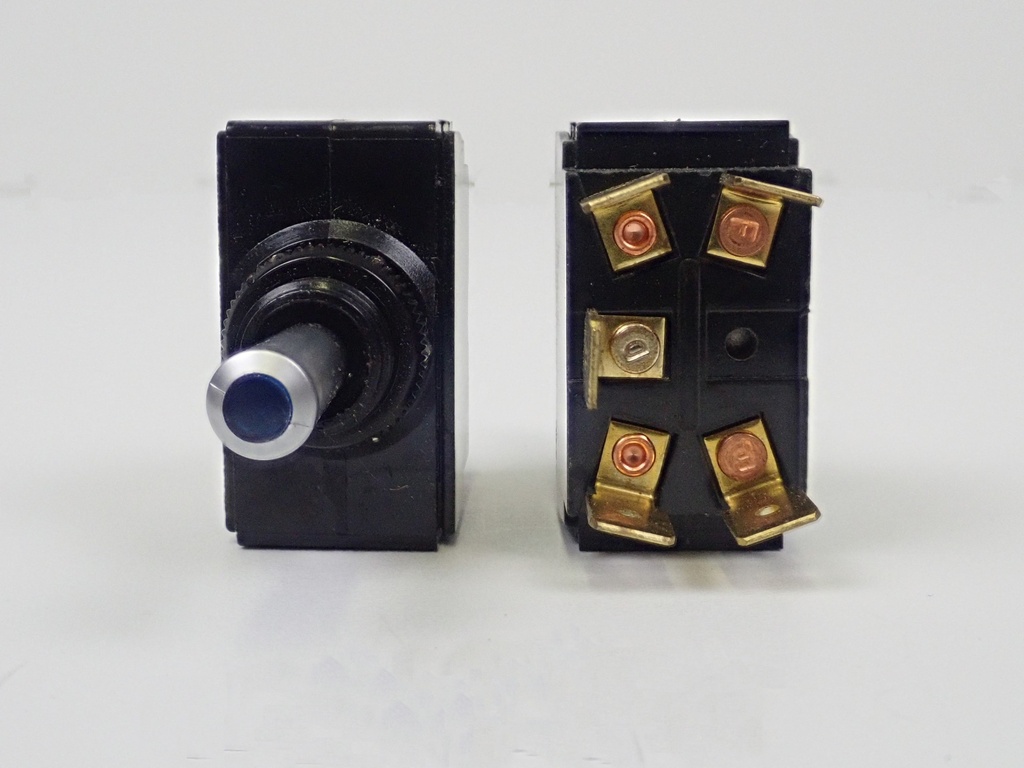

LT-1581 SPDT (ON)/OFF/(ON) Momentary w/ Independent Lamp. 5 terminal
PNL-BW180VT-stg
- Independent lamp with satin handle. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the handle position as opposed to standard "dependent" lamps that get their power internally when the handle moves to the "on" position.
- 5 terminal; The two terminals on the right side (looking at back of switch) positions are for the lamp, The center terminal on the left is power in, The upper left terminal and the lower left terminals are MOMENTARY power out with the handle is moved to the up or down position.
- Switch is normally OFF. The handle is spring loaded and will return to the OFF position after releasing from the up or down momentary positions.
- Lamp is 12VDC.
- Common for Marine, RV, automotive, and other 12 volt DC applications. Typically used for Windlass control, linear actuators on hatch lifts, electric seats, window vents, electric windows or other small motors. Can be used in conjunction with solenoids on larger motors like a windlass, or heavier application.
- Part # LT-1581-3.
- Sea Ray Part # 1944880
Product Overview
If you are replacing a worn switch, LT 1581 SPDT (ON)/OFF/(ON) Momentary w/ Independent Lamp. 5 terminal is a trusted option that helps you finish the job without extra hassle. It is commonly used for indicator and control circuits. This is a updated option for customers refreshing an older setup. It is a professional marine replacement part. It is built to be long lasting and finished to a premium standard. If you want help confirming fitment or wiring, our customer service is supportive. You will speak with easy to work with human support with real know how.
Specifications and Details
Web Listing Details
- Independent lamp with satin handle. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the handle position as opposed to standard "dependent" lamps that get their power internally when the handle moves to the "on" position.
- 5 terminal; The two terminals on the right side (looking at back of switch) positions are for the lamp, The center terminal on the left is power in, The upper left terminal and the lower left terminals are MOMENTARY power out with the handle is moved to the up or down position.
- Switch is normally OFF. The handle is spring loaded and will return to the OFF position after releasing from the up or down momentary positions.
- Lamp is 12VDC.
- Common for Marine, RV, automotive, and other 12 volt DC applications. Typically used for Windlass control, linear actuators on hatch lifts, electric seats, window vents, electric windows or other small motors. Can be used in conjunction with solenoids on larger motors like a windlass, or heavier application.
- Part # LT-1581-3.
- Sea Ray Part # 1944880
Fitment and Ordering Support
Customers use LT 1581 SPDT (ON)/OFF/(ON) Momentary w/ Independent Lamp. 5 terminal for indicator and control circuits in many marine setups. It is typically selected when you need a dependable replacement that performs well in marine conditions and delivers a quality result. Before ordering, confirm the switch function and terminals, then compare photos and specifications to what is installed now. If anything is unclear, our customer service is responsive. You will reach easy to work with people first support with real know how who can help confirm the right part.
