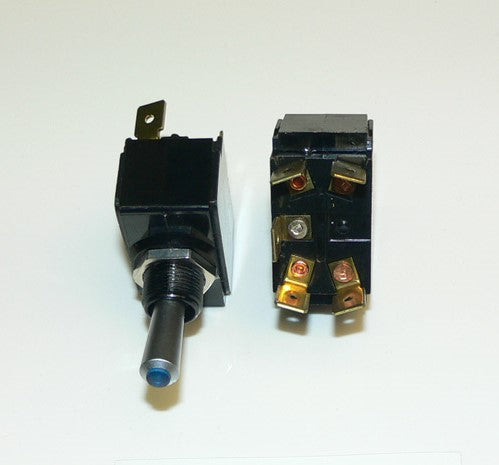

LT-1561-IND, Carling SPDT ON/OFF/ON Independent Lamp - Lighted Tip Toggle Switch
SUR-000009-1791788
Carlingswitch ON/OFF/ON single pole, lighted tip toggle switch.
- Independent Red lamp with satin handle. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the handle position as opposed to standard "dependent" lamps that get their power internally when the handle moves to the "on" position. 5 terminal;
- The two terminals on the right marked "F" are for the lamp, The center terminal on the left is power in, The upper left terminal is power out with the handle in the down position, the lower left terminal is power out with the handle in the up position.
- Lamp is 12VDC.
- Common for Marine, RV, automotive, and other 12 volt DC applications.
- Part # LT-1561-1.
- Typically used for dual lighting applications, navigation lights (with external diode), or two different circuits that would not need to be utilized at the same time.
