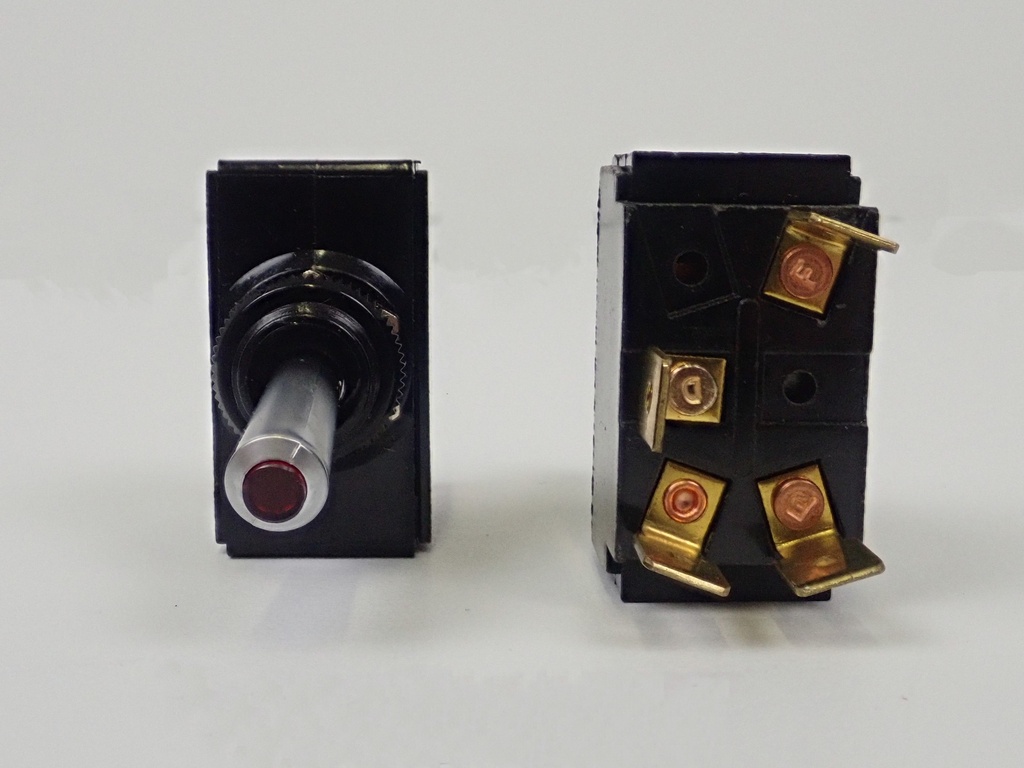

LT-1531, Carling SPST (ON)/OFF Momentary, Independent Lamp, 4 Terminal
ELC-008681-ASSY-B
Momentary (ON)/OFF
- Single pole Single Throw SPST
- momentary action lighted tip toggle switch.
- 4 terminal
- Top 2 terminals are power and ground for the lamp. The bottom two terminals on the left are power in and power out.
- Lamp is 12VDC.
- This type of switch with momentary action is used for horns, windshield washers, solenoid activation, or starting circuits. Also used by Pathfinder Boats as a Bilge Pump switch that will light up if the float switch is activated.
- Common for Marine, RV, automotive, and other 12 volt DC applications.
- Part # LT-1531-601-012 LT-1531-603-012 LT-1531-604-012
- Normally OFF, temporary (ON). The parentheses indicate momentary action.
Specifications
| Tip Color | Blue or Red or Green or Special Blue or Amber |
