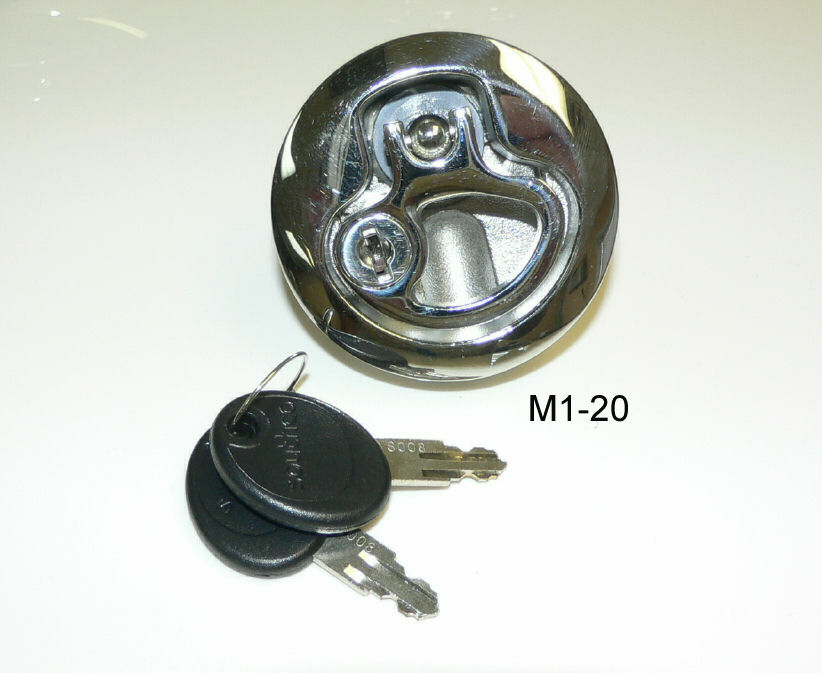

Southco 2" Locking compression latch. M1-20 Series
PNL-BW180VT-stg
Product Overview
Southco 2" Locking compression latch. M1 20 Series is a practical pick when you want fit and function you can count on. It is commonly used for mounting and fastening tasks in marine environments. This is a latest option for customers refreshing an older setup. It is a pro grade marine replacement part. It is built to be built to last and finished to a quality standard. If you want help confirming fitment, our support team is responsive. You will speak with personable real people with real hands on expertise.
Specifications and Details
Store Listing Details
- Stainless steel lift and turn latch with compression.
- High quality heavy duty smooth operation.
- Styled to match the M1 family of latches.
- Various pawl lengths and offsets available.
- Available for 2-29mm panel thicknesses.
- Please choose pawl and panel thickness in "choose your options".
- This latch includes the pawl and mounting hardware necessary for the options you choose.
- Pawls and mounting brackets are also available separately.
- 61.5mm (2-3/8") outside diameter, 50mm (2") cutout
- BBG Part #: 1833695
- M1-520-56-8-008
Cam Style measurements:
Long Straight - 65mm (2-9/16") Length - flat (no offset)
Long Offset - 65mm (2-9/16") Length - 18mm (3/4") offset
Long Deep Offset - 65mm (2-9/16") Length - 30mm (1-3/16") offset
Short Straight - 52mm (2-1/16") Length - flat (no offset)
Short Offset - 52mm (2-1/16") Length - 18mm (3/4") offset
Short Deep Offset - 52mm (2-1/16") Length - 30mm (1-3/16") offset
Panel Thickness
2-12mm (.075-.475") uses 22mm (7/8") backing ring
12-22.5mm (.475-.885") uses 12mm (1/2") backing ring
18.5-29mm uses flat 4.5mm (3/16") backing ring
Fitment and Ordering Support
In marine service work, Southco 2" Locking compression latch. M1 20 Series supports mounting and fastening tasks in marine environments. It is typically selected when you need a trusted replacement that performs well in marine conditions and delivers a high quality result. Before ordering, compare your existing part to the photos and specifications, and confirm the size and mounting method. If anything is unclear, our customer service is supportive. You will reach friendly real people with real know how who can help confirm the right part.
