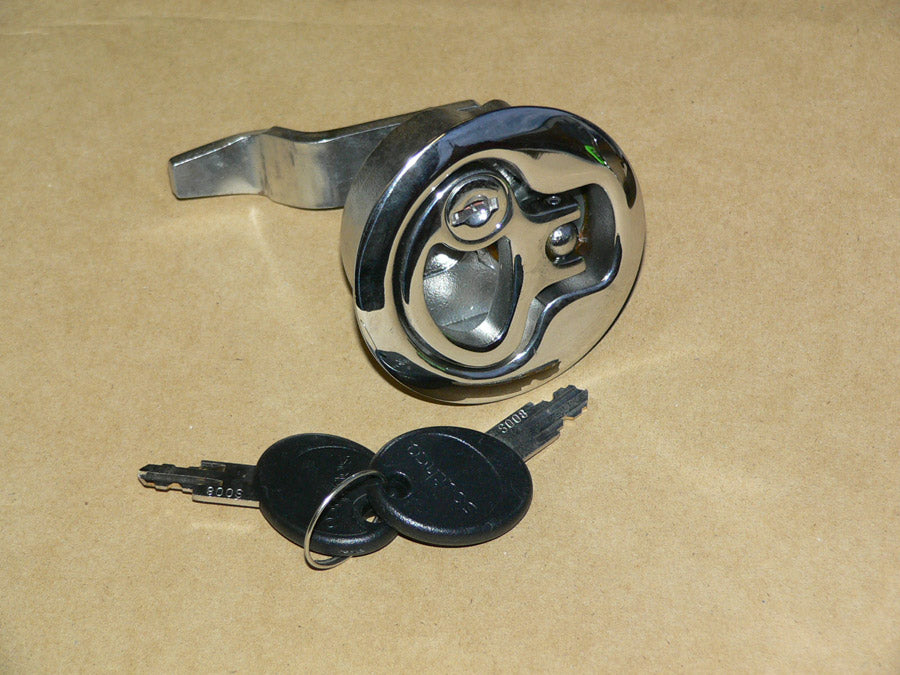

Southco 2.5" Locking compression latch: M1-25 Series

https://www.fpmarine.com/web/image/product.template/31267/image_1920?unique=7346b02

SUR-000009-1791788

Southco M1-25 Series Lift and Turn Compression Lock



  • Stainless steel lift and turn latch with compression.
  • High quality heavy duty smooth operation.
  • Styled to match the M1 family of latches.
  • Various pawl lengths and offsets available.
  • Available for 2-29mm panel thicknesses.
  • Please choose pawl and panel thickness in "choose your options".
  • This latch includes the pawl and mounting hardware necessary for the options you choose.
  • Pawls and mounting brackets are also available separately.
  • 76mm (3") outside diameter, 63.5mm (2-3/8") cutout
  • Enhanced security key lock
  • M1-525-56-8-008

Cam Style measurements:
Long Straight - 82mm (3-1/4") Length - flat (no offset)
Long Offset - 82mm (3-1/4") Length - 18mm (3/4") offset
Long Deep Offset - 82mm (3-1/4") Length - 30mm (1-3/16") offset
Short Straight - 43mm (1-3/4") Length - flat (no offset)
Short Offset - 43mm (1-3/4") Length - 18mm (3/4") offset
Short Deep Offset - 43mm (1-3/4") Length - 30mm (1-3/16") offset

Panel Thickness
2-12mm (.075-.475") uses 22mm (7/8") backing ring
12-22.5mm (.475-.885") uses 12mm (1/2") backing ring
18.5-29mm uses flat 4.5mm (3/16") backing ring

82.20 82.2 USD 82.20

82.20

Not Available For Sale

This combination does not exist.


Internal Reference: HDW-002903
