Hafele Push Button Cabinet Door / Drawer Latch - White - REVISED
SUR-000009-1791788

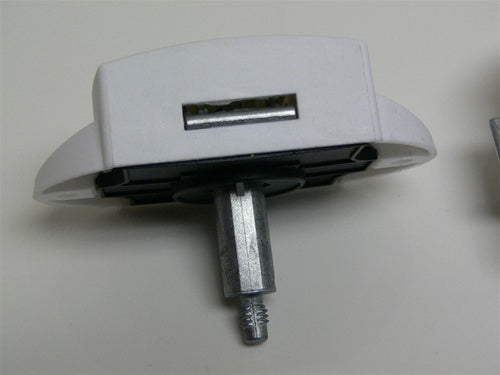

Push Button Cabinet Latch - Revised
New Style replacement Hafele cabinet latch. Direct replacement for the traditional unit that was more of a square shape. The bolt hole pattern is identical and these latches have been re-designed to eliminate the weak spots that were present in the old latch. There are photos showing the latches side by side. The old style are no longer available.
White. Common cabinet latch found on most every Sea Ray since the early 1990's. Also used by Regal, Monterey, Formula, Carver, and many many more. Knob screws on the end of the shaft. When knob is pushed in, striker deploys and knob stays flush with cabinet face. Push knob again and striker retracts and the knob pops out and stays in the out position as a convenient pull-knob. Latches are designed for 3/4" thick cabinet and drawer faces. Special rosettes (trim rings) and spacers are available for thinner or thicker panels. Rosettes and knobs available in brass, chrome, and satin nickel.
Sea Ray part # 772418 or 1807995
Hole spacing 65mm
See our article for more information and installation tips and tricks: Hafele Push Button Caninet Latch
Â
Internal Reference:
HDW-002709
