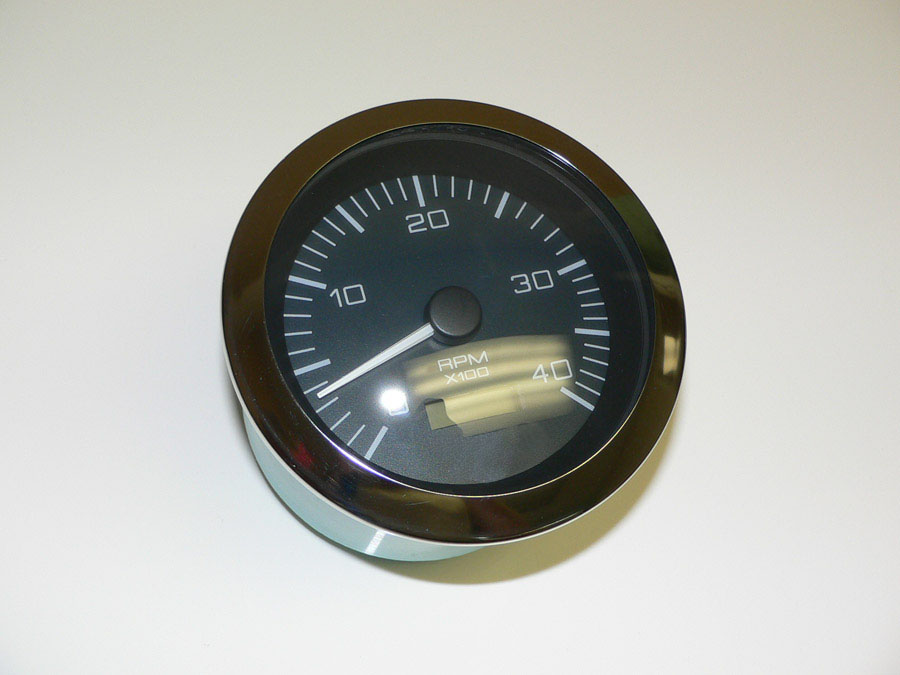

TACH-24 Volt Sea Ray replacement gauge. Tachometer 5" diesel with take-off ratio. Detroit Diesel. Signaflex****Modify to 24Volt*****
SUR-000009-1791788
Original Sea Ray Legend Series Replacement Instrument
-
24 volt gauge
- Original replacement gauge for most Sea Ray boats from the mid 1990's through 2002ish. These are exact replacements aside from the absence of the small "SR" logo toward the bottom of the dial.
- Stainless steel trim ring. Also a direct replacement for the earlier gauges that had black or gray plastic trim rings.
- Replaces Sea Ray Part # 912543.
- 0-4000 rpm Tachometer for diesel engines with Signaflex signal generator, (Detroit Diesel) Adjustable for .5, 1, or 2 take off ratio
- 4-3/8" cutout diameter, outside diameter of trim ring is approximately 4-3/4"
- Digital LCD hour meter.
- These are brand new gauges with warranty, If your replacement gauge does not operate properly, double check the connections. Occasionally, the terminals on the back of the gauge will be labeled correctly, but they will be in reverse position from the gauge that you are replacing. Do not discard your old gauge until you have verified proper operation.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Original Sea Ray Legend Series Replacement Instrument
- 24 volt gauge
- Original replacement gauge for most Sea Ray boats from the mid 1990's through 2002ish. These are exact replacements aside from the absence of the small "SR" logo toward the bottom of the dial.
- Stainless steel trim ring. Also a direct replacement for the earlier gauges that had black or gray plastic trim rings.
- Replaces Sea Ray Part # 912543.
- 0-4000 rpm Tachometer for diesel engines with Signaflex signal generator, (Detroit Diesel) Adjustable for .5, 1, or 2 take off ratio
- 4-3/8" cutout diameter, outside diameter of trim ring is approximately 4-3/4"
- Digital LCD hour meter.
- These are brand new gauges with warranty, If your replacement gauge does not operate properly, double check the connections. Occasionally, the terminals on the back of the gauge will be labeled correctly, but they will be in reverse position from the gauge that you are replacing. Do not discard your old gauge until you have verified proper operation.
Internal Reference:
GAU-006627
