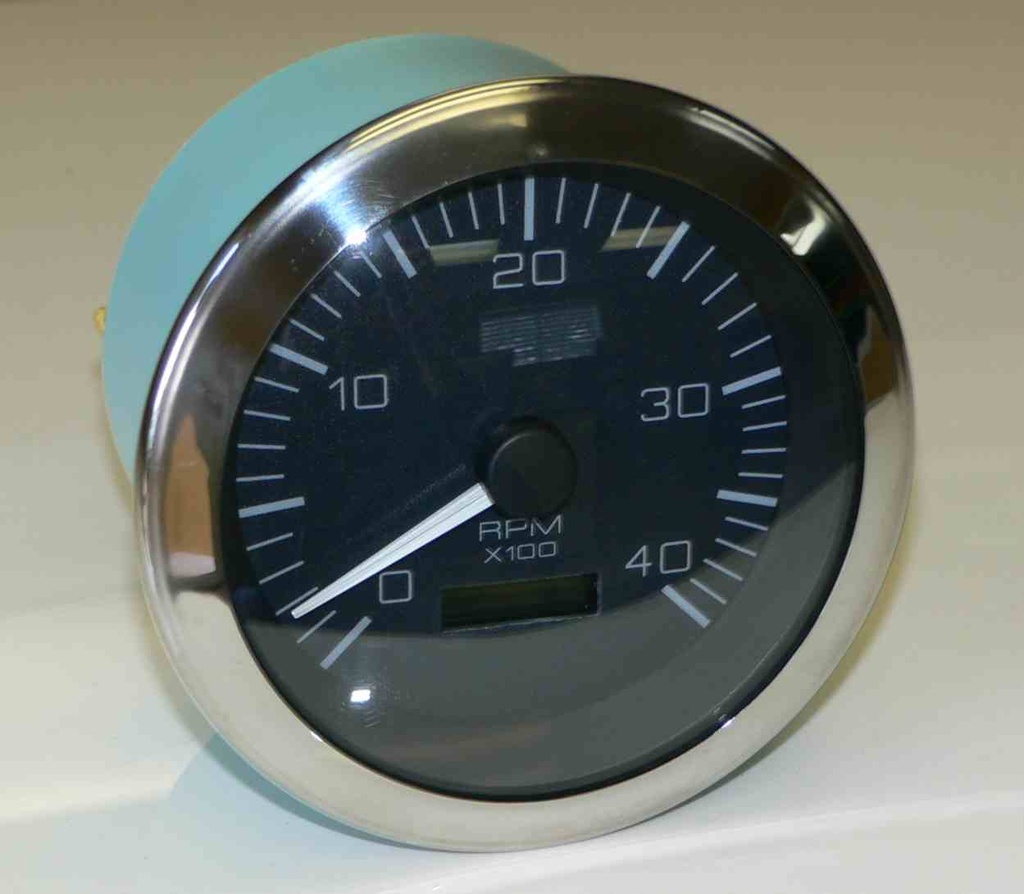

TACH-12 Volt Sea Ray replacement gauge, Tachometer 5" for diesel with mag pick-up 69770

Original Sea Ray Replacement Legend Series 5" 12 Volt
Analog TACHOMETER w/ LCD Hourmeter

• Manufacturer / Part #: ​Veethree - Teleflex / 69770, 8675F, 86275F
• Sea Ray Part #: 0912527, 1291384
• ​Series: ​Legend
• ​Size: ​5 inch (4.33"/110mm hole cutout)
• Range: ​0-4,000 RPM (adjustable for 103T, 126T, or 159T (flywheel tooth count))
• Connection Type: ​Stud terminals
• Features:
• • ​Original replacement gauge for most Sea Ray boats from the mid 1990's through 2002ish.

  • ​Stainless Steel trim ring. Also a direct replacement for the earlier gauges that had black or gray plastic trim rings.
  • ​2 tone pointer - Black hub w/ White needle
  • ​Anti-Fog, scratch resistant domed glass lens
• Applications: ​​​​Caterpillar or Cummins Diesels

SPECIAL NOTE: Mag pickup not included.

All gauges are tested on a gauge tester before shipping, If your replacement gauge does not operate properly, double check the connections. Occasionally, the terminals on the back of the gauge will be labeled correctly, but they will be opposite from your original gauge. Do not discard your old gauge until you have verified proper operation.
