TACH-12 Volt Sea Ray replacement gauge. Tachometer 5" diesel with take-off ratio. Detroit Diesel. 69769
SUR-000009-1791788
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Original Sea Ray Legend Series Replacement Instrument
- Stainless Steel Polished trim ring - The photos sometimes make the trim ring look black
-
12 Volt. 24 volt gauges are also available and are listed as a separate item on this site.
- Original replacement gauge for most Sea Ray boats from the mid 1990's through 2002ish. These are exact replacements aside from the absence of the small "SR" logo toward the bottom of the dial.
- Stainless steel trim ring. Also a direct replacement for the earlier gauges that had black or gray plastic trim rings.
- Replaces Sea Ray part #'s 1291368 and 912535. Teleflex part# 86274 (printed on the side of the gauge)

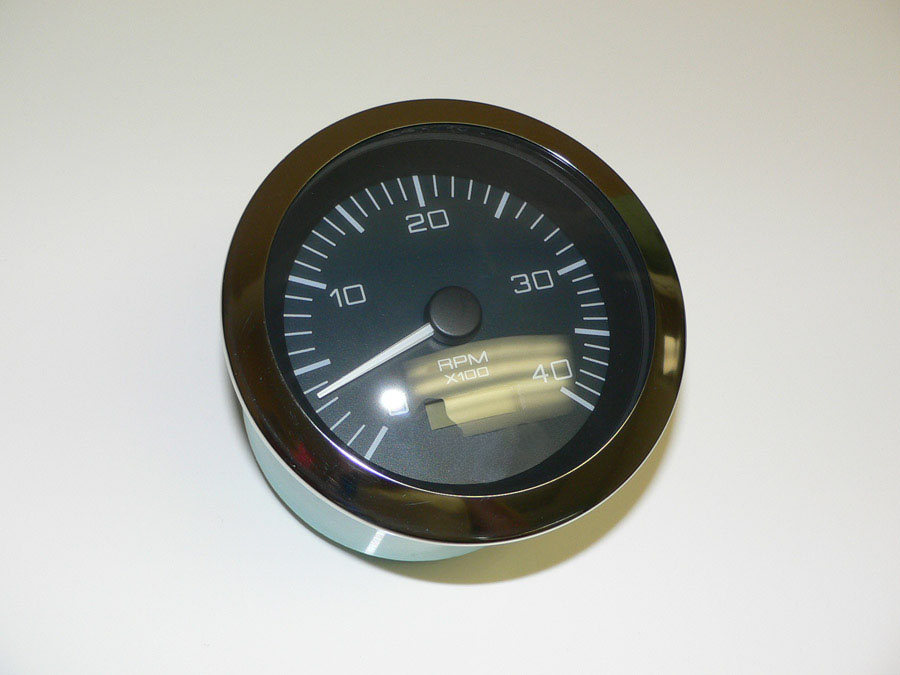

- 0-4000 rpm Tachometer for diesel engines with Signaflex signal generator, (Detroit Diesel) Adjustable for .5, 1, or 2 take off ratio
- 12 volt, will not work with the larger yachts that have 24V gauge systems (if in doubt, check your wiring with a voltmeter and look for "24V" printed on the side of the gauge and/or on the back of the gauge where the specifications are printed.)
- 4-3/8" cutout diameter, outside diameter of trim ring is approximately 4-3/4"
- Digital LCD hour meter.
- These are brand new gauges with warranty.

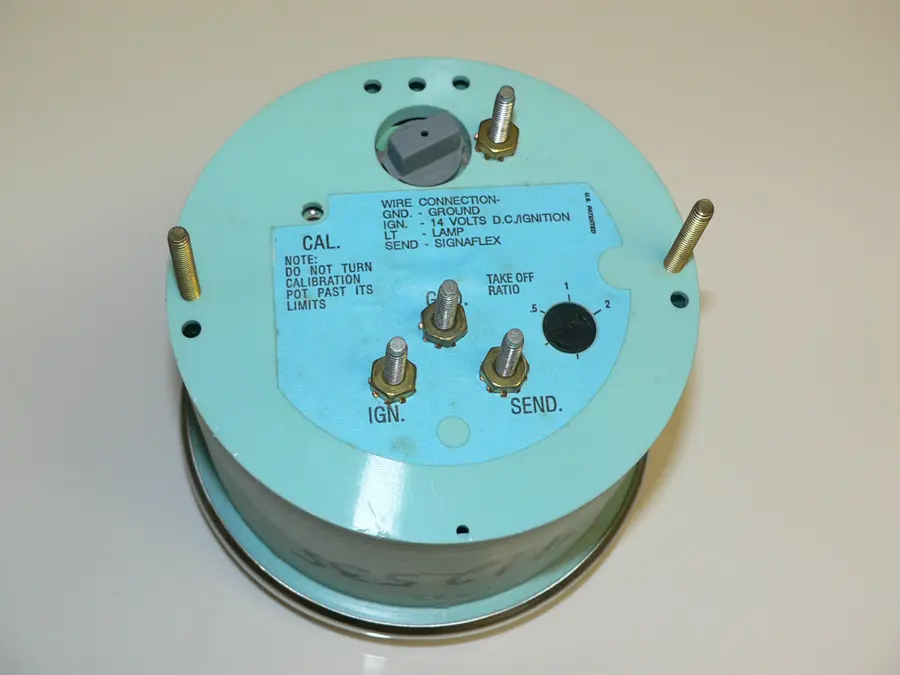

- If your replacement gauge does not operate properly, double check the connections. Occasionally, the terminals on the back of the gauge will be labeled correctly, but they will be in reverse position from the gauge that you are replacing. Do not discard your old gauge until you have verified proper operation.
