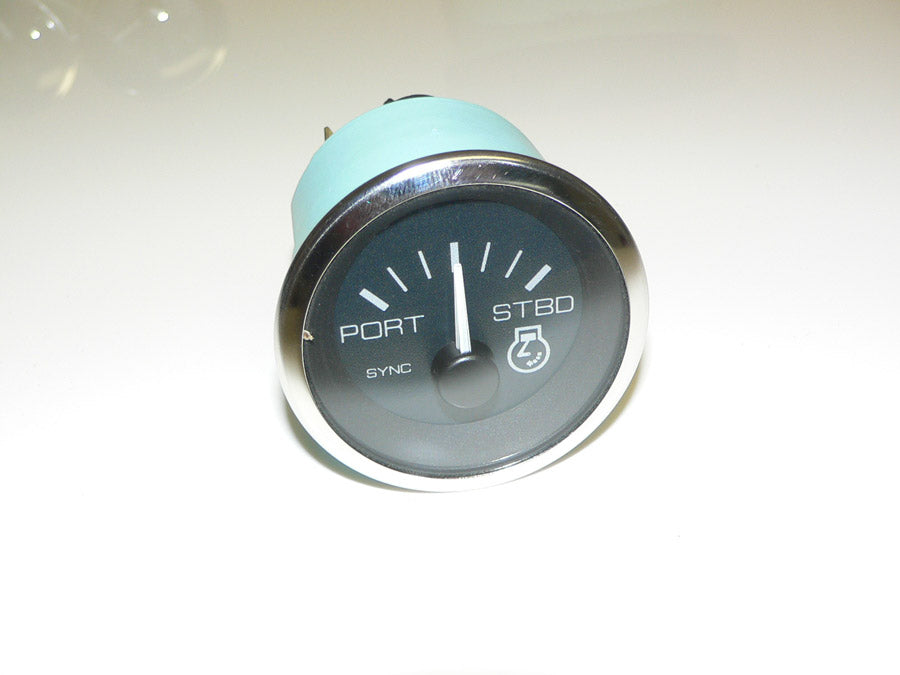

Original Sea Ray Legend Series Replacement Instrument
- 12 Volt
- Original replacement gauge for most Sea Ray boats from the mid 1990's through 2002ish.
- Stainless steel trim ring. Also a direct replacement for the earlier gauges that had black or gray plastic trim rings.
- Sea Ray part # 1291517 or replaces old 912360. Teleflex part# 86730F (printed on the side of the gauge)
- Synchronizer gauge, This gauge works in conjunction with the tachometers and the synchronizer module/sending unit which is a round, black puck shaped module behind the dash.
- 12 volt, will not work with the larger yachts that have 24V gauge systems (if in doubt, check your wiring with a voltmeter and look for "24V" printed on the side of the gauge and/or on the back of the gauge where the specifications are printed.)
- 2" cutout diameter, outside diameter of trim ring is approximately 2-1/4"
- All gauges are tested on a gauge tester before shipping, If your replacement gauge does not operate properly, double check the connections. Occasionally, the terminals on the back of the gauge will be labeled correctly, but they will be opposite from your original gauge. Do not discard your old gauge until you have verified proper operation.
- These are New Gauges.
