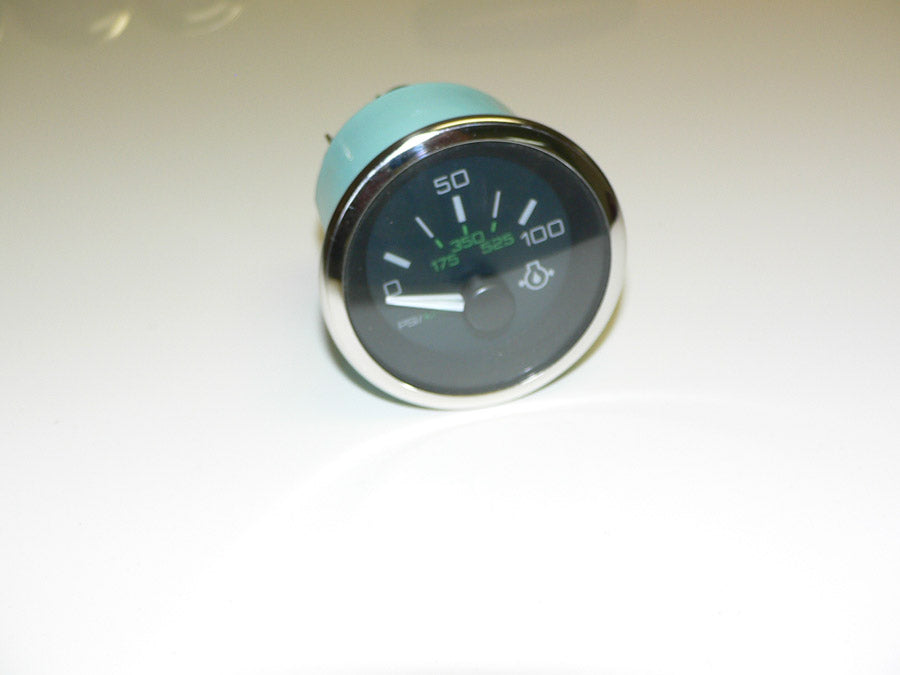

OIL-12 Volt Sea Ray replacement gauge, 0-100 psi oil Pressure for 12V 1291335
SUR-000009-1791788
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Original Sea Ray Legend Series Replacement Instrument
- 12 Volt
- Original replacement gauge for most Sea Ray boats from the mid 1990's through 2002ish.
- Stainless steel trim ring. Also a direct replacement for the earlier gauges that had black or gray plastic trim rings.
- Sea Ray part #1291335 replaces old Sea Ray part# 912410 0912410 Teleflex part# 86181F (printed on the side of the gauge)
- Oil pressure 0-100 psi
- 12 volt, will not work with the larger yachts that have 24V gauge systems (if in doubt, check your wiring with a voltmeter and look for "24V" printed on the side of the gauge and/or on the back of the gauge where the specifications are printed.)
- 2" cutout diameter, outside diameter of trim ring is approximately 2-1/4"
- All gauges are tested on a gauge tester before shipping, If your replacement gauge does not operate properly, double check the connections. Occasionally, the terminals on the back of the gauge will be labeled correctly, but they will be opposite from your original gauge. Do not discard your old gauge until you have verified proper operation.
- These are New gauges
Internal Reference:
GAU-001009
