FUEL-12 Volt Sea Ray replacement gauge, Fuel for 12V -single station. 1291285
SUR-000009-1791788
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.

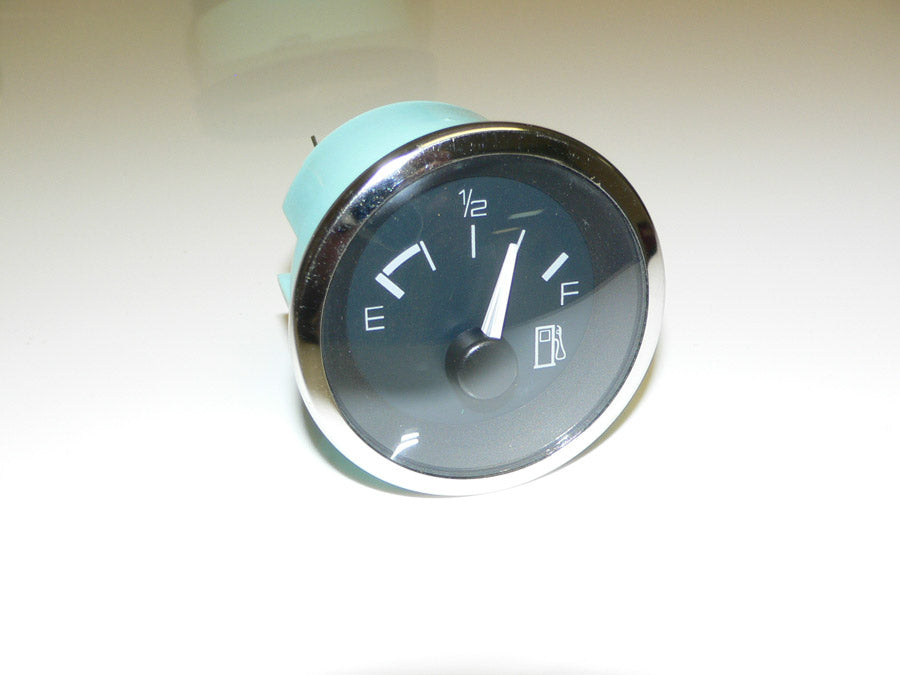

Original Sea Ray Legend Series Replacement Instrument
- 12 Volt
- Original replacement gauge for most Sea Ray boats from the mid 1990's through 2002ish.
- Stainless steel trim ring. Also a direct replacement for the earlier gauges that had black or gray plastic trim rings.
- Sea Ray part #1291285, or 1291301 or replaces old 883405 0883405 Teleflex part# 86150 (printed on the side of the gauge).(Part# 86161F is for dual station and available by special order)
- Fuel level gauge.
- 12 volt, will not work with the larger yachts that have 24V gauge systems (if in doubt, check your wiring with a voltmeter and look for "24V" printed on the side of the gauge and/or on the back of the gauge where the specifications are printed.)
- 2" cutout diameter, outside diameter of trim ring is approximately 2-1/4"
- 33 - 240 ohms

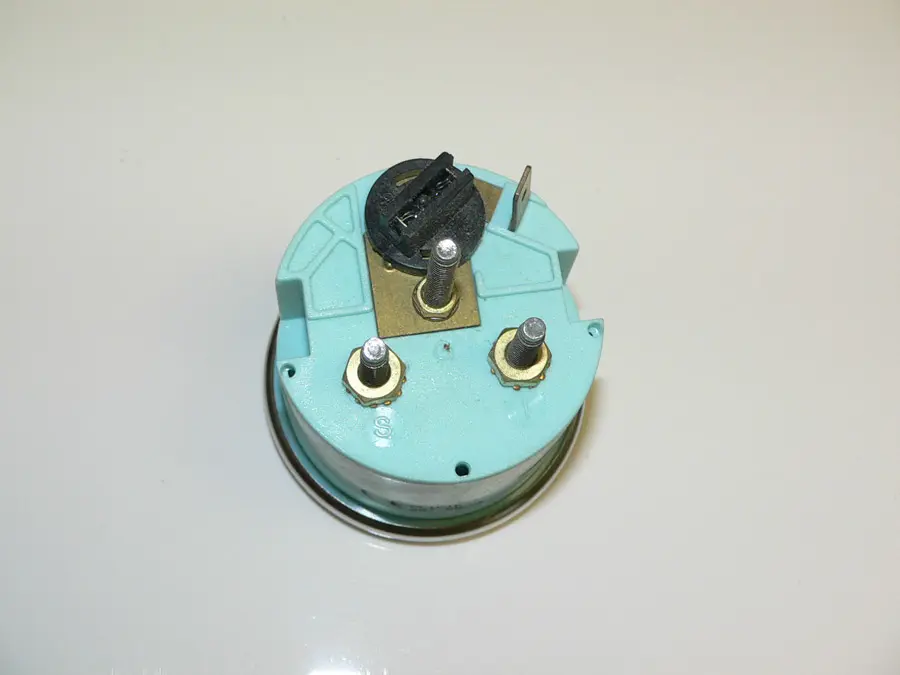

- All gauges are tested on a gauge tester before shipping, If your replacement gauge does not operate properly, double check the connections. Occasionally, the terminals on the back of the gauge will be labeled correctly, but they will be opposite from your original gauge. Do not discard your old gauge until you have verified proper operation.
- These are New gauges
Internal Reference:
GAU-001007
