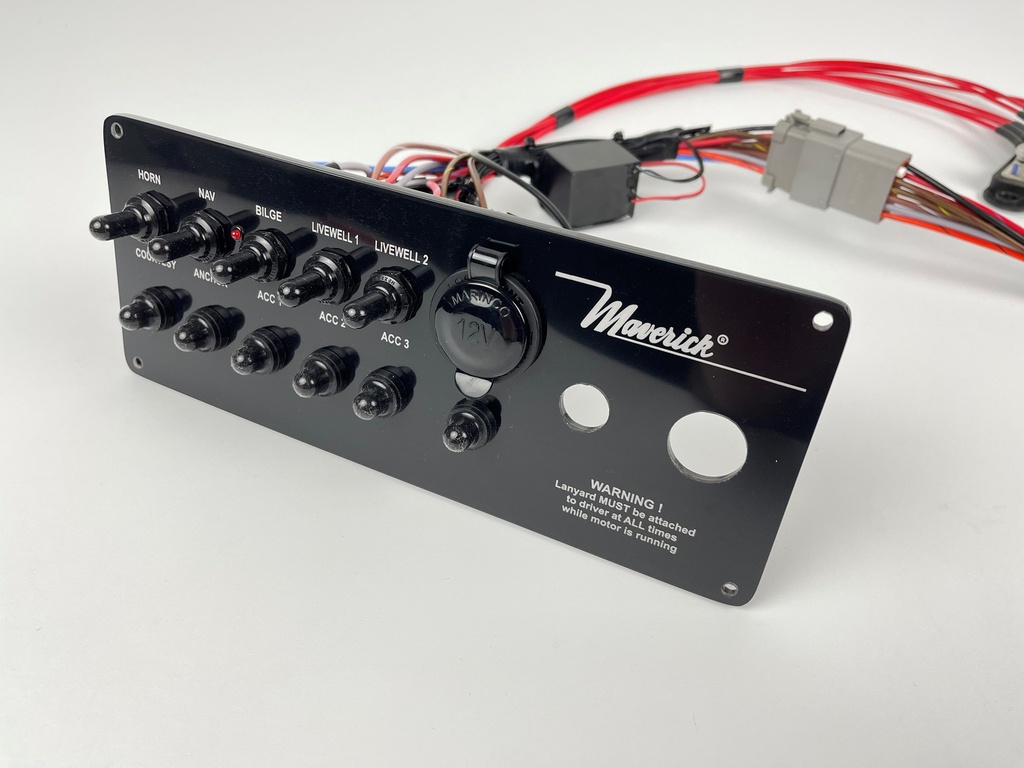

Fully Wired Replacement Switch Panel - Maverick HPXV 2014 9-7/8" x 4"
SUR-000009-1791788
Please click here see our Library/Tech Center for videos, articles, and FAQ's
- Boat Manufacturer: Maverick
- OEM Part#*: -
- Fits Models*: - HPX HPXV with 9-7/8" x 4" panel
- Construction: Acrylic 3/16"
- Accessory Panels Available:
- Switch Kit Available: Included
* May fit other models/years, Part# for search/reference only
SPECIFICATIONS:
This is a complete replacement system. You provide the power feed from your batteries and main circuit breaker. We supply a main positive connection point that feeds the circuit breakers. The harness leaving the switch panel is labeled and you simply splice to the wires that lead to each accessory. The wire colors on your factory boat harness varied over the years and models. Our wire harness colors may not match all of your original colors. Our wire colors follow ABYC recommendations. We label the individual wires on our harness so you can match up to your existing harness by function. We supply high quality Molex heat shrink butt connectors for the splice. Deutsch connectors on the main harness make removing your panel a breeze.
FEATURES:
- Complete system.
- Marine grade tinned copper 14ga. wire and heat shrink connections.
- Genuine Deutsch connectors for convenient quick disconnect points.
- Genuine Carling Switches.
- Color coded and labeled pigtail wires to connect to your existing boat harness. (colors may not match your original harness exactly)
- Includes genuine Molex Permaseal heat shrink butt connectors for your splices to your existing harness.
- 5 switch positions handle all stock functions.
- Exceeds current OEM quality.
Custom Switch label engraving is available for a nominal $35 charge.
(Custom labeling for the switches includes simple text changes to the "ACC" functions. Changing switch configurations would require harness changes which are not available for this product.) Choosing this option will typically add approximately a 5-7 day lead time.
Dimensions: 9-7/8" x 4"
Screw Spacing 9-1/4" x 3-1/2"
Internal Reference:
FWPA-MavHPXV2014
