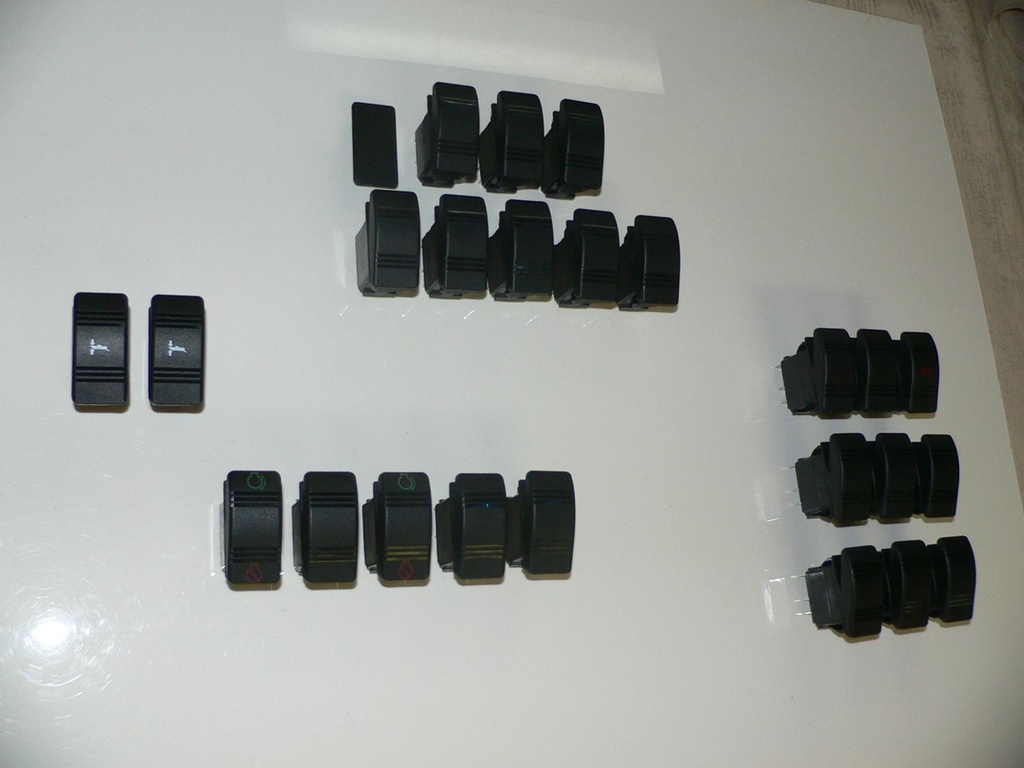

330 370 Express Cruiser 1997 SWITCH kit including Covers/Actuators
PNL-BW180VT-stg
- This is a SWITCH AND ACTUATOR kit.
- This set is for the 1997 ish - 330 and 370 Express Cruiser. This kit is for the early 1997 boats. The later 330/370 EC's had a different switch panel and we have a separate listing for those switch/actuator kits.
- This kit includes a hole plug for the "Accessory" position at the left side of the main switch panel. If you have added a switch to that position, you will need to order it separately
- This kit DOES NOT INCLUDE the cockpit lighting switches that are located on the transom. If you would like to order those switches, you will need one (1) VDDA-1 to replace SR part# 648063, one (1) V1D1-2 to replace 648097, and one (1) VLD1-1 to replace 773879. You will also need to order the actuators for those switches. (two C3-I, and one C3-F)
- This kit includes one VLD1-1 (on)/off/(on) momentary switch that replaces the original "Windlass Control" toggle switch. We have found that most customers request this change when ordering a panel set.
- This Kit DOES INCLUDE the following:
-
Actuators:
1 C3-L horn symbol
5 C3-I black with no lens
14 C3-F black with single blue lens
2 C3-K Ignition start/stop symbols
2 C3-M Trim tab symbol
1 VV Hole Plug VHP
Switches:
1 VLD1-3 SR part# 1733928 or 681494 windlass main
1 VB4A-1 SR part# 670539 emergency start
9 V1D1-2 SR part# 648097 bilge pumps, wipers, depth, spoiler lights, baitwell fill, baitwell discharge, washdown
3 VAD1-1 SR part# 681510 Running lights, Anchor light, bilge blowers
1 V2D1-3 SR part# 679332 horn
2 VM4J-1 SR part# 670521 ignition
6 VLD1-1 SR part# 773879 Windshield vent, hatch lift, hatch lift power, power seat, trim tabs, windlass control
1 V1D1-1 SR part# 681502 Engine Sync
Product Overview
330 370 Express Cruiser 1997 SWITCH kit including Covers/Actuators is a practical pick for service work when you want control you can count on. It is commonly used for ignition and starting circuits. This is a new option for customers refreshing an older setup. It is a pro grade marine replacement part. It is built to be long lasting and finished to a premium standard. If you want help confirming fitment or wiring, our service team is responsive. You will speak with easy to work with people first support with real know how.
Specifications and Details
Web Listing Details
- This is a SWITCH AND ACTUATOR kit.
- This set is for the 1997 ish - 330 and 370 Express Cruiser. This kit is for the early 1997 boats. The later 330/370 EC's had a different switch panel and we have a separate listing for those switch/actuator kits.
- This kit includes a hole plug for the "Accessory" position at the left side of the main switch panel. If you have added a switch to that position, you will need to order it separately
- This kit DOES NOT INCLUDE the cockpit lighting switches that are located on the transom. If you would like to order those switches, you will need one (1) VDDA-1 to replace SR part# 648063, one (1) V1D1-2 to replace 648097, and one (1) VLD1-1 to replace 773879. You will also need to order the actuators for those switches. (two C3-I, and one C3-F)
- This kit includes one VLD1-1 (on)/off/(on) momentary switch that replaces the original "Windlass Control" toggle switch. We have found that most customers request this change when ordering a panel set.
- This Kit DOES INCLUDE the following:
-
Actuators:
1 C3-L horn symbol
5 C3-I black with no lens
14 C3-F black with single blue lens
2 C3-K Ignition start/stop symbols
2 C3-M Trim tab symbol
1 VV Hole Plug VHP
Switches:
1 VLD1-3 SR part# 1733928 or 681494 windlass main
1 VB4A-1 SR part# 670539 emergency start
9 V1D1-2 SR part# 648097 bilge pumps, wipers, depth, spoiler lights, baitwell fill, baitwell discharge, washdown
3 VAD1-1 SR part# 681510 Running lights, Anchor light, bilge blowers
1 V2D1-3 SR part# 679332 horn
2 VM4J-1 SR part# 670521 ignition
6 VLD1-1 SR part# 773879 Windshield vent, hatch lift, hatch lift power, power seat, trim tabs, windlass control
1 V1D1-1 SR part# 681502 Engine Sync
Fitment and Ordering Support
In marine electrical service work, 330 370 Express Cruiser 1997 SWITCH kit including Covers/Actuators supports ignition and starting circuits. It is typically selected when you need a trusted replacement that performs well in marine conditions and delivers a high quality result. Before ordering, confirm the switch function and terminals, then compare photos and specifications to what is installed now. If anything is unclear, our support team is helpful. You will reach easy to work with people first support with real hands on expertise who can help confirm the right part.
Internal Reference:
ELC-010029
