370 Sundancer 1997-1999 SWITCH kit including Covers/Actuators
PNL-BW180VT-stg
- This is a SWITCH AND ACTUATOR kit You may end up with an extra on/off switch or two depending upon how your boat was equipped
- This set is for the 1997-1999 370 Sundancer
-
The switches included are the following;
QTY
8 V1D1-2, SR# 648097 on/off with lamp. Bilge Pump, Electronics, Autopilot, Wipers, Synchronizer, Spotlight, Bilge Lights
4 VLD1-1, SR# 773879 momentary (on)/off/(on), windshield vent, trim tabs, power seat
1 V2D1-3, SR# 679332 momentary (on)/off, Horn
1 VB4A-1, SR# 670539 Double Pole momentary (on)/off, Emergency Start
2 VM4J-1, SR# 670521 Ignitions OFF/ON/(ON) Engine ignition
3 VAD1-1, SR# 681510 ON/OFF w/lamp double pole. Blowers, Anchor Light, Running Light
2 VDD1-1, SR# 648063 ON/ON Cockpit Lights, Spoiler Lights
1 V8D1-1, SR# 648113 (on)/off/(on) Windlass
-

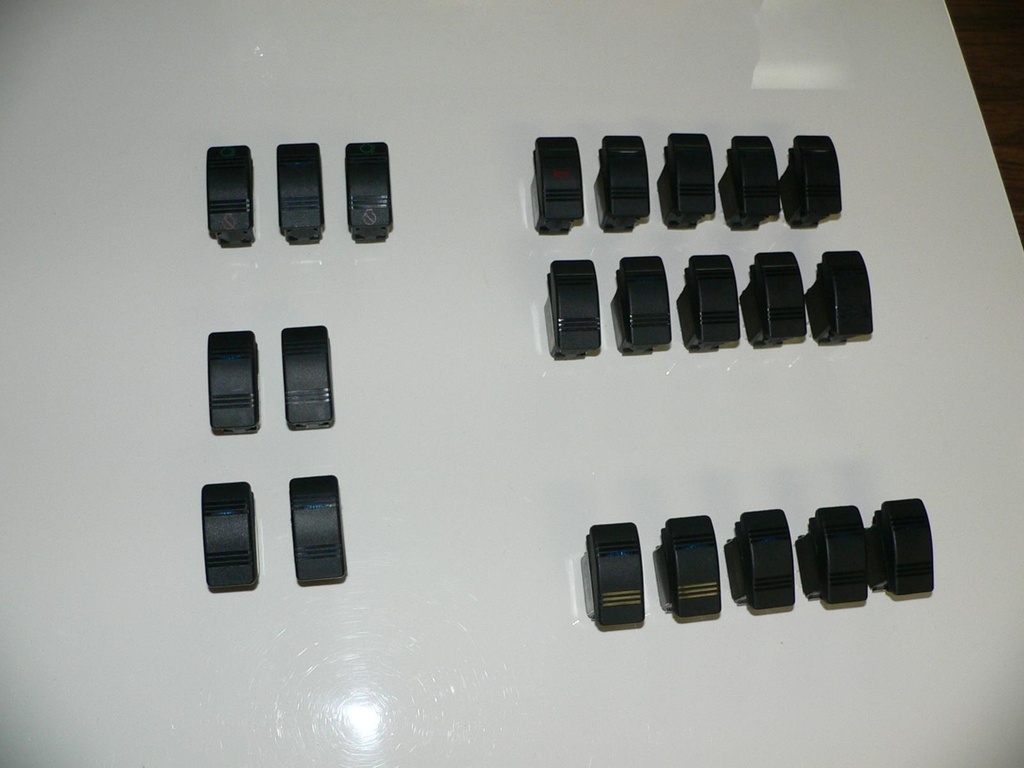

The actuators included are the following:
QTY
14 VVC3-F, SR# 679324 Black with single blue lens
1 VVC3-L, SR# 759084 Black with horn symbol
4 VVC3-I, SR# 681486 Black, no lens
2 VVC3-K, SR# Engine start/stop symbol
2 VVC3-M, SR# Trim Tab symbol
1 VHP - hole plug - for boats with no engine sync
There were variations in these boats. Some boats had 2 extra switches on the far left switch panel, you will need to order those separately.
1 - VLD1-1 - Hatchlift
1 - V1D1-2 - Accy
1 - C3-i - Actuator no lens
1 - C3-F - Actuator single blue lens
Product Overview
370 Sundancer 1997 1999 SWITCH kit including Covers/Actuators is a practical pick for service work when you want control you can count on. It is commonly used for ignition and starting circuits. It is a professional marine replacement part. It is built to be durable and finished to a quality standard. If you want help confirming fitment or wiring, our customer service is responsive. You will speak with friendly people first support with real hands on expertise.
Specifications and Details
Web Listing Details
- This is a SWITCH AND ACTUATOR kit You may end up with an extra on/off switch or two depending upon how your boat was equipped
- This set is for the 1997-1999 370 Sundancer
-
The switches included are the following;
QTY
8 V1D1-2, SR# 648097 on/off with lamp. Bilge Pump, Electronics, Autopilot, Wipers, Synchronizer, Spotlight, Bilge Lights
4 VLD1-1, SR# 773879 momentary (on)/off/(on), windshield vent, trim tabs, power seat
1 V2D1-3, SR# 679332 momentary (on)/off, Horn
1 VB4A-1, SR# 670539 Double Pole momentary (on)/off, Emergency Start
2 VM4J-1, SR# 670521 Ignitions OFF/ON/(ON) Engine ignition
3 VAD1-1, SR# 681510 ON/OFF w/lamp double pole. Blowers, Anchor Light, Running Light
2 VDD1-1, SR# 648063 ON/ON Cockpit Lights, Spoiler Lights
1 V8D1-1, SR# 648113 (on)/off/(on) Windlass
-
The actuators included are the following:
QTY
14 VVC3-F, SR# 679324 Black with single blue lens
1 VVC3-L, SR# 759084 Black with horn symbol
4 VVC3-I, SR# 681486 Black, no lens
2 VVC3-K, SR# Engine start/stop symbol
2 VVC3-M, SR# Trim Tab symbol
1 VHP - hole plug - for boats with no engine sync
There were variations in these boats. Some boats had 2 extra switches on the far left switch panel, you will need to order those separately.
1 - VLD1-1 - Hatchlift
1 - V1D1-2 - Accy
1 - C3-i - Actuator no lens
1 - C3-F - Actuator single blue lens
Fitment and Ordering Support
In marine electrical service work, 370 Sundancer 1997 1999 SWITCH kit including Covers/Actuators supports ignition and starting circuits. It is typically selected when you need a dependable replacement that performs well in marine conditions and delivers a high quality result. Before ordering, confirm the switch function and terminals, then compare photos and specifications to what is installed now. If anything is unclear, our support team is supportive. You will reach personable human support with real know how who can help confirm the right part.
