VMDJ-1 Carling OFF/ON/(ON) double pole rocker switch, independent green LED in position #2 ignition, generator start
SUR-000009-1791788

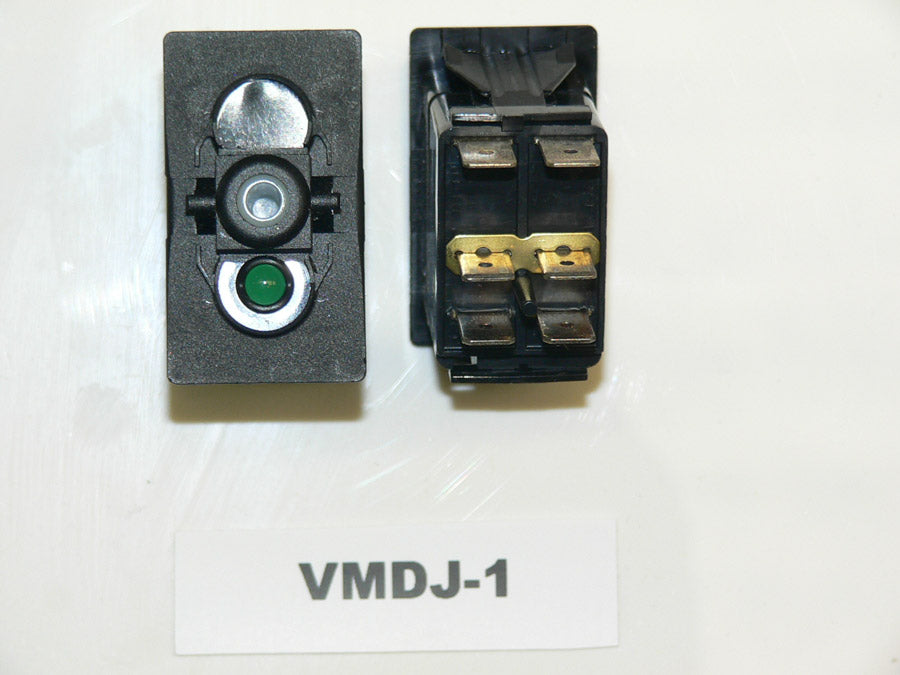

Carlingswitch OFF/ON/(ON) double pole V series Contura rocker switch body.
-
This is a Switch Body Only. Actuators are sold separately.
-
OFF/ON/(ON) configuration - Ignition
- 12V green independent LED lamp in the #2 (bottom) position. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position.
- 6 terminal; Top two terminals are for the lamp, the upper right is the ground and the upper left is the power. You can jump the power to the lamp from another terminal on the switch so it illuminates always, or when either or both of the accessories are activated..your choice. The middle two terminals are power in. The other terminals are power "out" and configured: OFF/3/(3&6)..One terminal is active when switch is actuated to the "ON" position. Both terminals are momentarily active when the switch is actuated to the (ON) position
- Common for Marine, RV, automotive, and other 12V DC applications. Typically used as an ignition switch.
- Part# VMDJ-1 Sea Ray part# 647974 , 480802
- Choose from a variety of actuators with different lenses. Actuator part numbers begin with VV.
