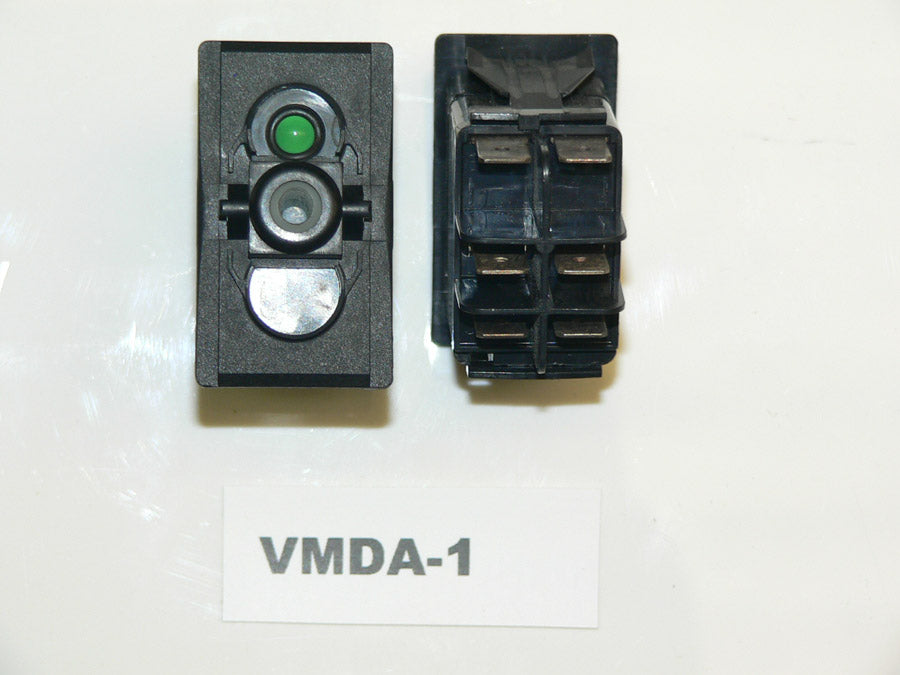

VMDA-1 Carling OFF/ON/(ON) Ignition Switch with green lamp
PNL-BW180VT-stg
Electrical Switch for Sea Ray and Other Boats
OEM-quality marine electrical switch engineered for reliable boat system control. For Sea Ray, Boston Whaler, Grady White, and other cruisers.
Product Specifications
Type: Electrical Switch
Configuration: Switch - Standard
Application: boat electrical switching and control
SKU: ELC-009093
Details: Shop VMDA-1 Carling OFF/ON/(ON) double pole rocker switch w/independent green LED in position#1 Ignition or generator start. Updated marine replacement built… What it is: VMDA-1 Carling OFF/ON/(ON) double pole rocker switch w/independent green LED in position#1 Ignition or generator start is a expert marine replacement part used for service and repair. Why it matters: it supports a trusted install and built to last performance with a high-quality fit. Need help: our support team is easy to work with—human support with experience—to help you choose and install the right part. Specifications: FP Marine SKU:ELC-009093 Series: Contura V Function:Latching and Momentary: OFF/ON/(ON) Double Pole Double Throw Lamp: Single 12V Independent Green in position 1 (top), *OEM Part #(s): VMDAHOB *Sea Ray Part #(s): 1260249 *Substitution(s): * Part #(s) may vary among boat models/years & are for search/reference only. Carling Switch OFF/ON/(ON) double pole V series Contura rocker switch body. This is a Switch Body Only. Actuators are sold separately. OFF/ON/(ON) configuration - Ignition 12V green independent LED lamp in the top position. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position. 6 terminal; Top two terminals are for the lamp, the upper right is the ground and the upper left is the power. You can jump the power to the lamp from another terminal on the switch so it illuminates always, or when either or both of the accessories are activated..your choice. The middle two terminals are power in. The other terminals are power "out" and configured: OFF/3/(3&6)..One terminal is active when switch is actuated to the "ON" position. Both terminals are momentarily active when the switch is actuated to the (ON) position Common for Marine, RV, automotive, and other 12V DC applications. Typically used as an ignition switch for main engines and generators.
Why OEM Electrical Switches Matter
OEM electrical switches are engineered for your boat's voltage and amperage specifications. They deliver reliable operation, proper electrical protection, and long-term durability in marine environments. Using correct switches prevents electrical system failures, fires, and equipment damage.
Quality electrical components ensure system safety and reliability. Always use OEM switches rated for your boat's electrical system specifications.
Quick FAQs
Will this switch fit my boat?
Designed for Sea Ray and other standard boats. Electrical switches must match your boat's voltage and amperage specifications. Verify compatibility before ordering. Contact [email protected] with your boat model and electrical system details.
What's the difference between Single Pole and Double Pole?
Single Pole switches control one circuit. Double Pole switches control two independent circuits simultaneously. Choose based on your boat's electrical configuration. Contact [email protected] if unsure which type you need.
What's the difference between Momentary and Locking?
Momentary switches activate only while pressed. Locking (or toggle) switches stay in position until toggled again. Choose based on your application. Wrong type can cause electrical system issues.
Can I use any electrical switch?
No. Electrical switches must match your boat's voltage (12V, 24V, etc.) and amperage rating exactly. Using wrong switches risks electrical fires and system failure. Always use OEM switches rated for your specific boat system. Never substitute with automotive or general-purpose switches.
Do you have switches for older boat models?
Yes. We stock electrical switches for boats from 1980s-current production. Contact [email protected] with your boat's model year and electrical system specifications.
