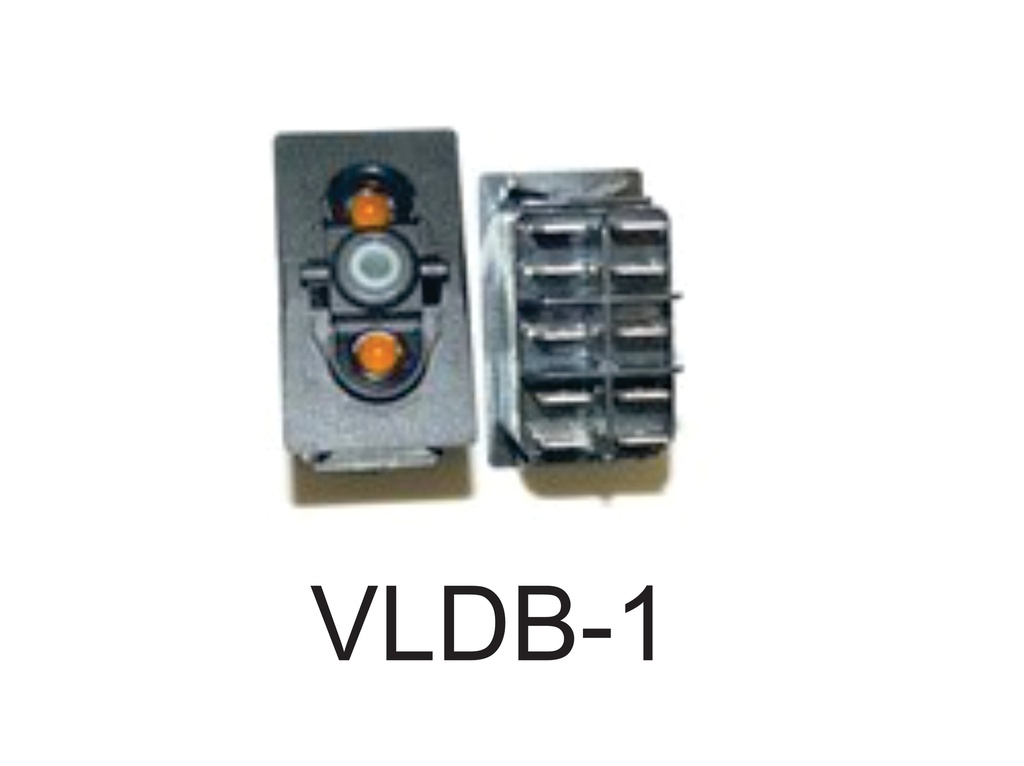

VLDB-1 Carling (ON)/OFF/(ON) double pole momentary rocker switch, amber lamps in position #1&2.
SUR-000009-1791788
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
VLDB-1 (ON)/OFF/(ON) DPDT W/ DOUBLE INDEPENDENT AMBER LAMPS
Carling Contura V-Series Rocker Switch Body
This is a Switch Body Only. Actuators/Covers are sold separately.
Specifications:
- FP Marine SKU:ELC-009088
- Series: Contura V
- Function: Momentary (ON)/OFF/(ON) DPDT
- Lamp: Double Independent Amber position 1 (top), Independent Amber position 2 (bottom)
- *OEM Part #(s): VLDB-1
- *Sea Ray Part #(s): # 1767253
- *Substitution(s):
* Part #(s) may vary among boat models/years & are for search/reference only.
Carlingswitch (ON)/OFF/(ON) double pole V series Contura rocker switch body.
-
This is a Switch Body Only. Actuators are sold separately.
-
(ON)/OFF/(ON) configuration, double pole double throw. momentary-on/off/momentary-on
- Two Amber LED lamps. Both the lamp in position #1, and the lamp in #2 position are independent.
- An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position.
- 10 terminal; The bottom right and top right terminals are the grounds for the lamps. The bottom left and top left terminals provide the power for the independent lamps. The middle two terminals on the switch are power "in". The other two pairs of terminals are power "out". The two sides of the switch are independent of each other. The switch is "off" when the actuator is in the middle position. There are dozens of ways to wire this complex switch and there are many different applications.
- At times these switches are wired differently. The important thing to remember is how the switch operates. When the bottom of the actuator is depressed, the middle two terminals make contact with the top two (switched) terminals (not the very top two that are for the independent lamp). When the top of the actuator is depressed, the middle two terminals make contact with the bottom two (switched) terminals (not the very bottom two that are for the independent lamp). As with all double pole switches, the two sides are independent of each other. So the terminals on the left side of the switch never make contact with the terminals on the right side of the switch unless you install an external jumper wire.
