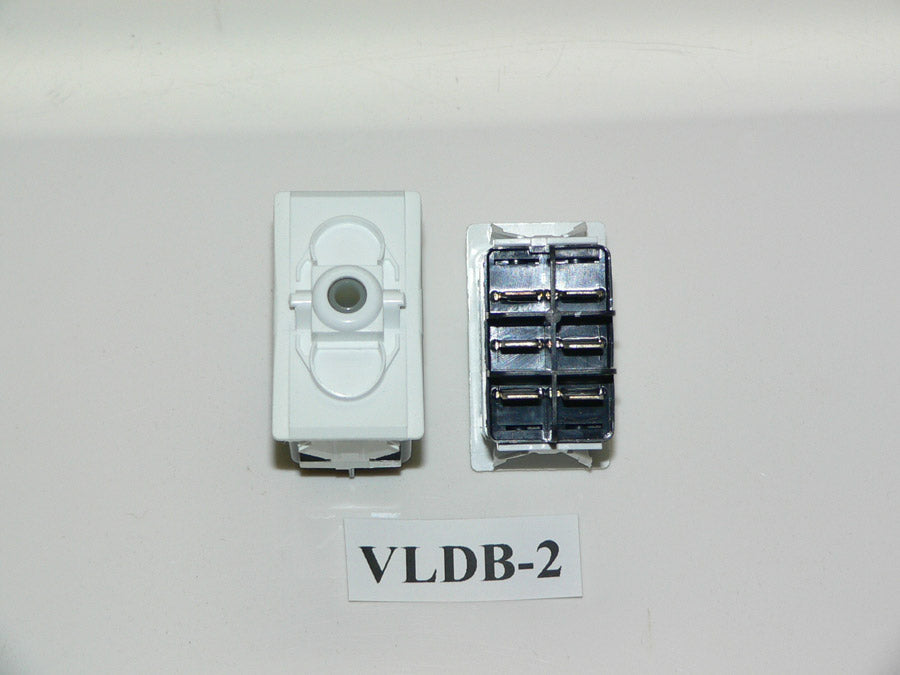

VLDB-2 Carling (ON)/OFF/(ON) double pole momentary rocker switch no lamps. White body. windshield vent, hatch lift
PNL-BW180VT-stg
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
VLDB-2 (ON)/OFF/(ON) DPDT WHITE BODY, TERMINAL GUARDS W/ NO LAMP
Specifications:
- FP Marine SKU:ELC-009087
- Series: Contura V
- Function: Momentary (ON)/OFF/(ON) DPDT
- Lamp: N/A
- *OEM Part #(s): VLDB-2
- *Sea Ray Part #(s):
- *Substitution(s): VL4A, VLDA, VLD1, VLBA,
* Part #(s) may vary among boat models/years & are for search/reference only.
-
This is a Switch Body Only. Actuators are sold separately.
-
(ON)/OFF/(ON) configuration, double pole double throw. (momentary-on)/off/(momentary-on)
- 6 terminal; The middle terminals are power "in" and the other two pairs of terminals are momentary power "out" At times these switches are wired differently. The important thing to remember is how the switch operates. When the bottom of the actuator is depressed, the middle two terminals make contact with the top two terminals. When the top of the actuator is depressed, the middle two terminals make contact with the bottom two terminals. As with all double pole switches, the two sides are independent of each other. So the terminals on the left side of the switch never make contact with the terminals on the right side of the switch unless you install an external jumper wire.
- Common for Marine, RV, automotive, and other 12V DC applications.
Product Overview
VLDB 2 Carling (ON)/OFF/(ON) double pole momentary rocker switch no lamps. White body. windshield vent, hatch lift is a trusted choice when you want a clean install and consistent switching performance. It is commonly used for indicator and control circuits. It is a pro grade marine replacement part. It is built to be durable and finished to a premium standard. If you want help confirming fitment or wiring, our service team is supportive. You will speak with easy to work with people first support with real experience.
Specifications and Details
Web Listing Details
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
VLDB-2 (ON)/OFF/(ON) DPDT WHITE BODY, TERMINAL GUARDS W/ NO LAMP
Specifications:
- FP Marine SKU:ELC-009087
- Series: Contura V
- Function: Momentary (ON)/OFF/(ON) DPDT
- Lamp: N/A
- *OEM Part #(s): VLDB-2
- *Sea Ray Part #(s):
- *Substitution(s): VL4A, VLDA, VLD1, VLBA,
* Part #(s) may vary among boat models/years & are for search/reference only.
-
This is a Switch Body Only. Actuators are sold separately.
-
(ON)/OFF/(ON) configuration, double pole double throw. (momentary-on)/off/(momentary-on)
- 6 terminal; The middle terminals are power "in" and the other two pairs of terminals are momentary power "out" At times these switches are wired differently. The important thing to remember is how the switch operates. When the bottom of the actuator is depressed, the middle two terminals make contact with the top two terminals. When the top of the actuator is depressed, the middle two terminals make contact with the bottom two terminals. As with all double pole switches, the two sides are independent of each other. So the terminals on the left side of the switch never make contact with the terminals on the right side of the switch unless you install an external jumper wire.
- Common for Marine, RV, automotive, and other 12V DC applications.
Fitment and Ordering Support
Customers use VLDB 2 Carling (ON)/OFF/(ON) double pole momentary rocker switch no lamps. White body. windshield vent, hatch lift for indicator and control circuits in many marine setups. It is typically selected when you need a dependable replacement that performs well in marine conditions and delivers a premium result. Before ordering, confirm the switch function and terminals, then compare photos and specifications to what is installed now. If anything is unclear, our service team is helpful. You will reach friendly real people with real hands on expertise who can help confirm the right part.
