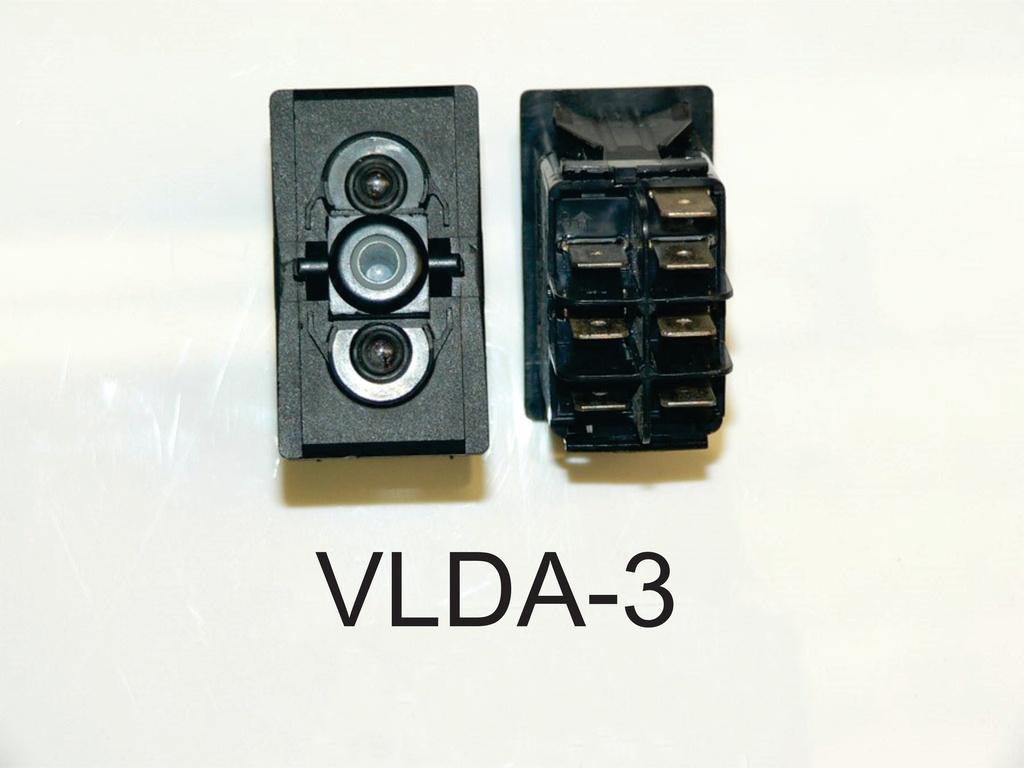

VLDA-3 Carling (ON)/OFF/(ON) double pole momentary rocker switch, clear lamps in position #1 & 2
PNL-BW180VT-stg
Specifications:
- FP Marine SKU: ELC-009085
- Series: Contura V
- Function: Momentary (ON)/OFF/(ON) DPDT
- Lamp: Double 12V Dependent Clear position 1 (top), position 2 (bottom)
- *OEM Part #(s): VLDA-3
- *Sea Ray Part #(s):
- *Substitution(s):
* Part #(s) may vary among boat models/years & are for search/reference only.
-
This is a Switch Body Only. Actuators are sold separately.
-
(ON)/OFF/(ON) configuration, double pole double throw. momentary-on/off/momentary-on
- 12V clear dependent lamps in the #1&2 (top&bottom) positions. "dependent" lamps get their power internally when the actuator moves to the "on" position.

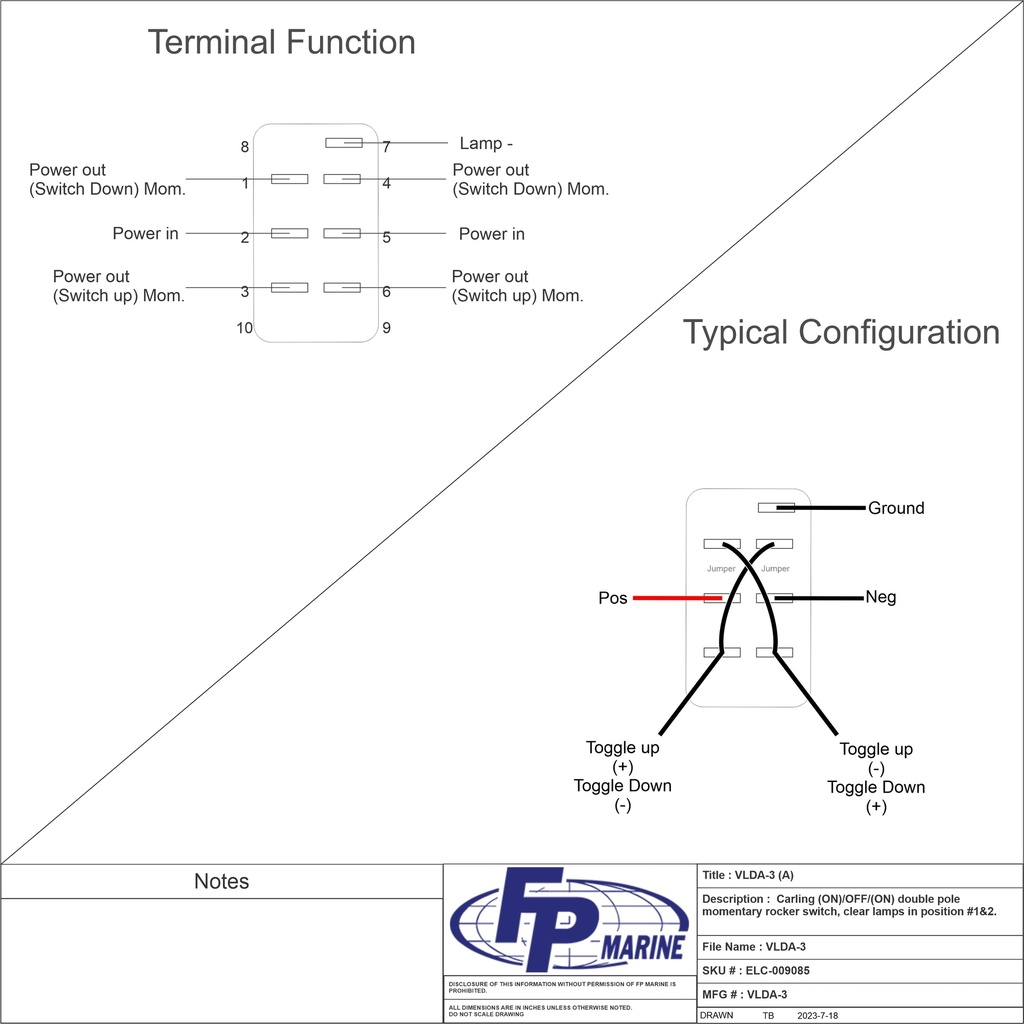

- 7 terminal; Top right terminal is the ground for the lamps, The middle two terminals are power "in" and the other two pairs of terminals are power "out". The switch is "off" when the actuator is in the middle position. The appropriate lamp will illuminate when the actuator is depressed up or down. The lights are wired to terminals 1 and 3

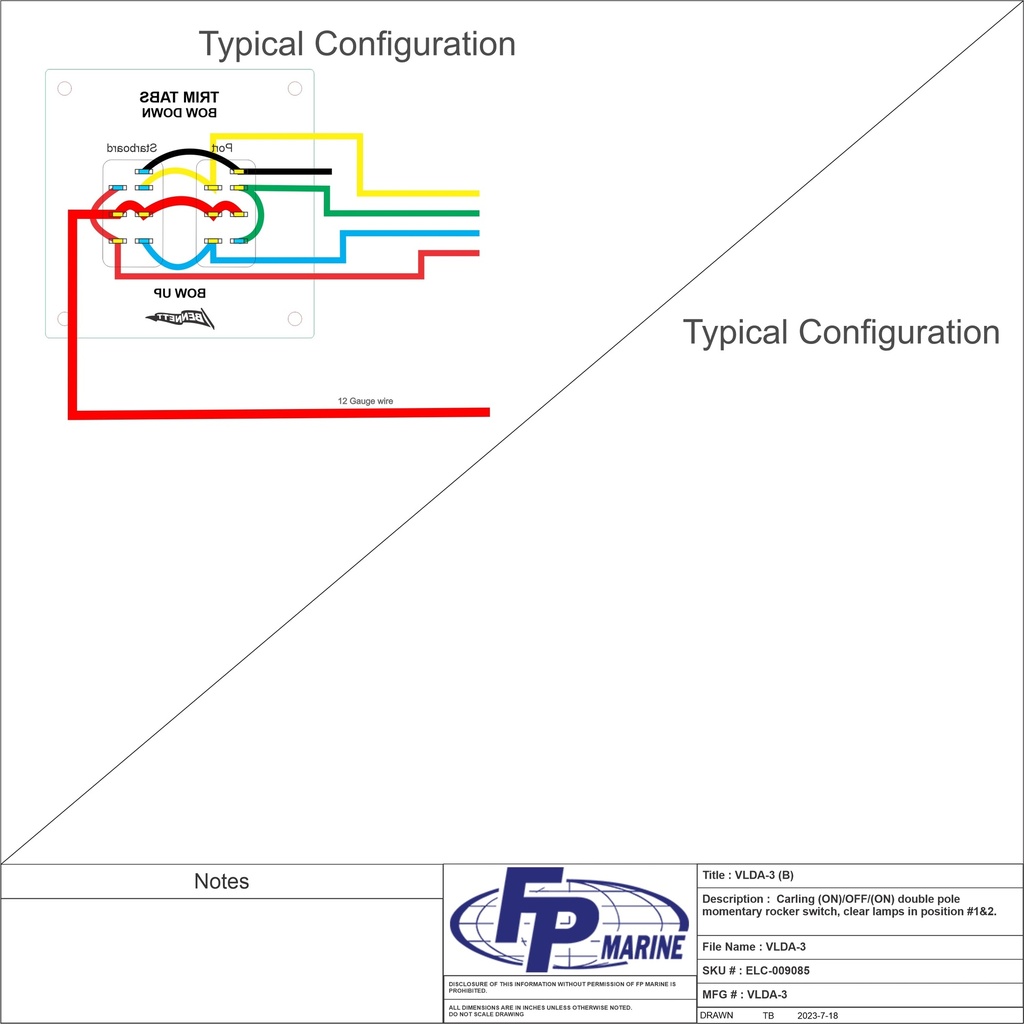

- At times these switches are wired differently. The important thing to remember is how the switch operates. When the bottom of the actuator is depressed, the middle two terminals make contact with the top two (active) terminals that are side by side (ignore the very top terminal for the light, for the moment) . When the top of the actuator is depressed, the middle two terminals make contact with the bottom two terminals. As with all double pole switches, the two sides are independent of each other. So the terminals on the left side of the switch never make contact with the terminals on the right side of the switch unless you install an external jumper wire.
- Common for Marine, RV, automotive, and other 12V DC applications.
- Part# VLDA-3
Product Overview
VLDA 3 Carling (ON)/OFF/(ON) double pole momentary rocker switch, clear lamps in position #1 & 2 is a practical pick for service work when you want control you can count on. It is commonly used for indicator and control circuits. It is a professional marine replacement part. It is built to be built to last and finished to a high quality standard. If you want help confirming fitment or wiring, our support team is supportive. You will speak with friendly people first support with real know how.
Specifications and Details
Web Listing Details
Specifications:
- FP Marine SKU: ELC-009085
- Series: Contura V
- Function: Momentary (ON)/OFF/(ON) DPDT
- Lamp: Double 12V Dependent Clear position 1 (top), position 2 (bottom)
- *OEM Part #(s): VLDA-3
- *Sea Ray Part #(s):
- *Substitution(s):
* Part #(s) may vary among boat models/years & are for search/reference only.
-
This is a Switch Body Only. Actuators are sold separately.
-
(ON)/OFF/(ON) configuration, double pole double throw. momentary-on/off/momentary-on
- 12V clear dependent lamps in the #1&2 (top&bottom) positions. "dependent" lamps get their power internally when the actuator moves to the "on" position.
- 7 terminal; Top right terminal is the ground for the lamps, The middle two terminals are power "in" and the other two pairs of terminals are power "out". The switch is "off" when the actuator is in the middle position. The appropriate lamp will illuminate when the actuator is depressed up or down. The lights are wired to terminals 1 and 3
- At times these switches are wired differently. The important thing to remember is how the switch operates. When the bottom of the actuator is depressed, the middle two terminals make contact with the top two (active) terminals that are side by side (ignore the very top terminal for the light, for the moment) . When the top of the actuator is depressed, the middle two terminals make contact with the bottom two terminals. As with all double pole switches, the two sides are independent of each other. So the terminals on the left side of the switch never make contact with the terminals on the right side of the switch unless you install an external jumper wire.
- Common for Marine, RV, automotive, and other 12V DC applications.
- Part# VLDA-3
Fitment and Ordering Support
In marine electrical service work, VLDA 3 Carling (ON)/OFF/(ON) double pole momentary rocker switch, clear lamps in position #1 & 2 supports indicator and control circuits. It is typically selected when you need a trusted replacement that performs well in marine conditions and delivers a quality result. Before ordering, confirm the switch function and terminals, then compare photos and specifications to what is installed now. If anything is unclear, our service team is supportive. You will reach friendly real people with real experience who can help confirm the right part.
