VLDA-2 Carling (ON)/OFF/(ON) double pole momentary rocker switch, independent Green LED Lamp in #1 Position
SUR-000009-1791788
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
VLDA-2 (ON)/OFF/(ON) DPDT W/ SINGLE 12V INDEPENDENT GREEN LAMP
Carling Contura V-Series Rocker Switch Body
This is a Switch Body Only. Actuators/Covers are sold separately.
Specifications:
- FP Marine SKU:ELC-009084
- Series: Contura V
- Function: Momentary (ON)/OFF/(ON) DPDT
- Lamp: Single 12V Independent Green position 1 (top),
- *OEM Part #(s): VLDA-2
- *Sea Ray Part #(s):
- *Substitution(s):
* Part #(s) may vary among boat models/years & are for search/reference only.

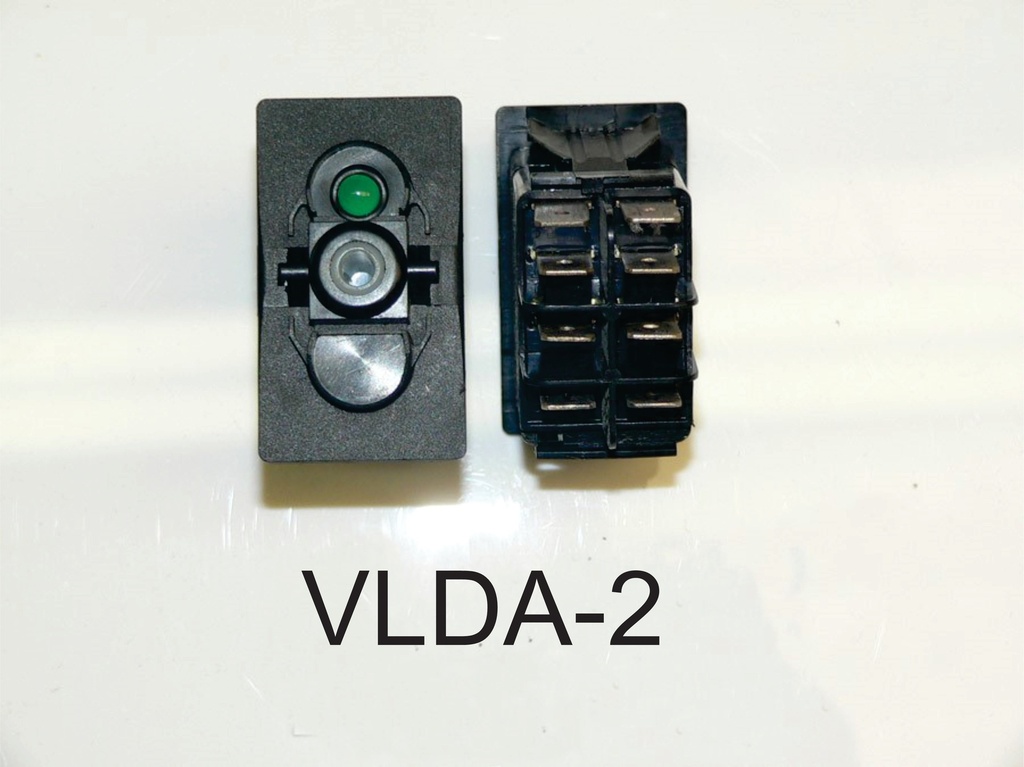

Carlingswitch (ON)/OFF/(ON) double pole V series Contura rocker switch body.
-
This is a Switch Body Only. Actuators are sold separately.
-
(ON)/OFF/(ON) configuration, double pole double throw. momentary-on/off/momentary-on
- 12V green independent LED lamp in the #1 (top) position. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position.
- 8 terminal; Top two terminals are for the lamp, the upper right is the ground and the upper left is the power. The middle two terminals are power "in" and the other two pairs of terminals are power "out". The switch is "off" when the actuator is in the middle position.
- At times these switches are wired differently. The important thing to remember is how the switch operates. When the bottom of the actuator is depressed, the middle two terminals make contact with the top two (active) terminals that are side by side (ignore the very top 2 terminals for the light, for the moment) . When the top of the actuator is depressed, the middle two terminals make contact with the bottom two terminals. As with all double pole switches, the two sides are independent of each other. So the terminals on the left side of the switch never make contact with the terminals on the right side of the switch unless you install an external jumper wire.
- Common for Marine, RV, automotive, and other 12V DC applications.
- Part# VLDA-2 SR part# 1260231 or 1733928 - Main Battery Solenoids. At times we may substitute a VLD1 marked switch depending upon availability. The VLD1 does not have barriers between the terminals.
