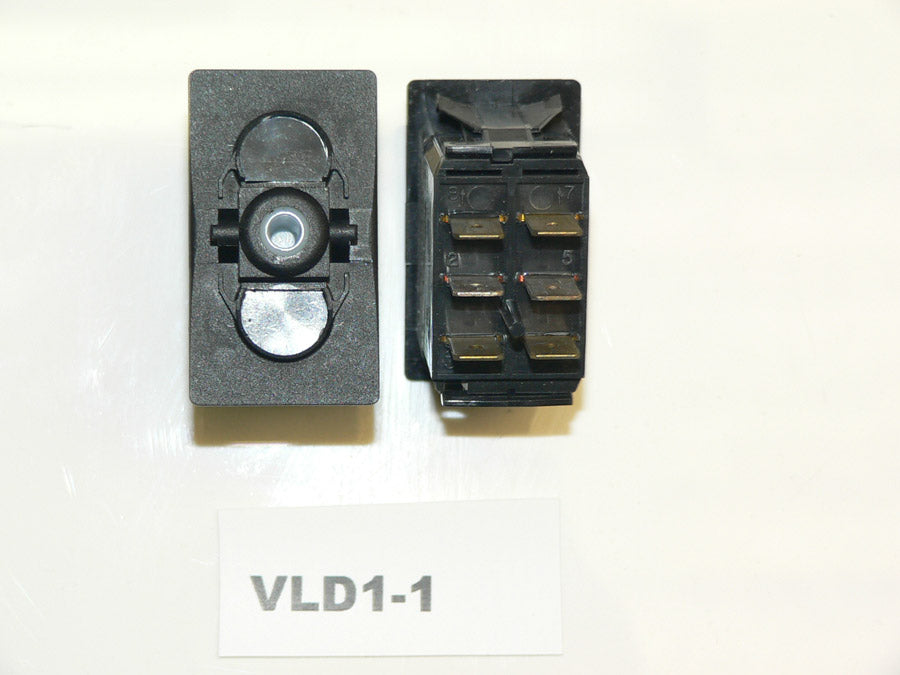

VLD1-1 Carling (ON)/OFF/(ON) Double Pole Momentary Rocker Switch no lamps. Windshield Vent, Hatch Lift, Trim Tabs
PNL-BW180VT-stg
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
VLD1-1 (ON)/OFF/(ON) DPDT W/ NO LAMP
Specifications:
- FP Marine SKU: ELC-009083
- Series: Contura V
- Function: Momentary (ON)/OFF/(ON) DPDT
- Lamp: N/A
- *OEM Part #(s): VLD1-1
- *Sea Ray Part #(s):
- *Substitution(s):
* Part #(s) may vary among boat models/years & are for search/reference only.
-
This is a Switch Body Only. Actuators are sold separately.
-
(ON)/OFF/(ON) configuration, double pole double throw. (momentary-on)/off/(momentary-on)
no lamps
- 6 terminal; Terminals #2 and #5 are power in and the other two pairs of Terminals #3,#6 and #1,#4 are momentary power out. Terminals #3 and #6 are power out when the actuator is in the up position. Terminals #1 and #4 are power out when the actuator is in the down position.
- At times these switches are wired differently. The important thing to remember is how the switch operates. When the bottom of the actuator is depressed, the middle two terminals make contact with the top two terminals. When the top of the actuator is depressed, the middle two terminals make contact with the bottom two terminals. As with all double pole switches, the two sides are independent of each other. So the terminals on the left side of the switch never make contact with the terminals on the right side of the switch unless you install an external jumper wire.
- Common for Marine, RV, automotive, and other 12V DC applications.
- Part# VLD1-1 Sea Ray part# 757369 773879 709493 windshield vent, hatch lift, trim tabs, old part#'s 0757369, 0773879, 0709493
- Also replaces the old gray body switch SR part# 720086
