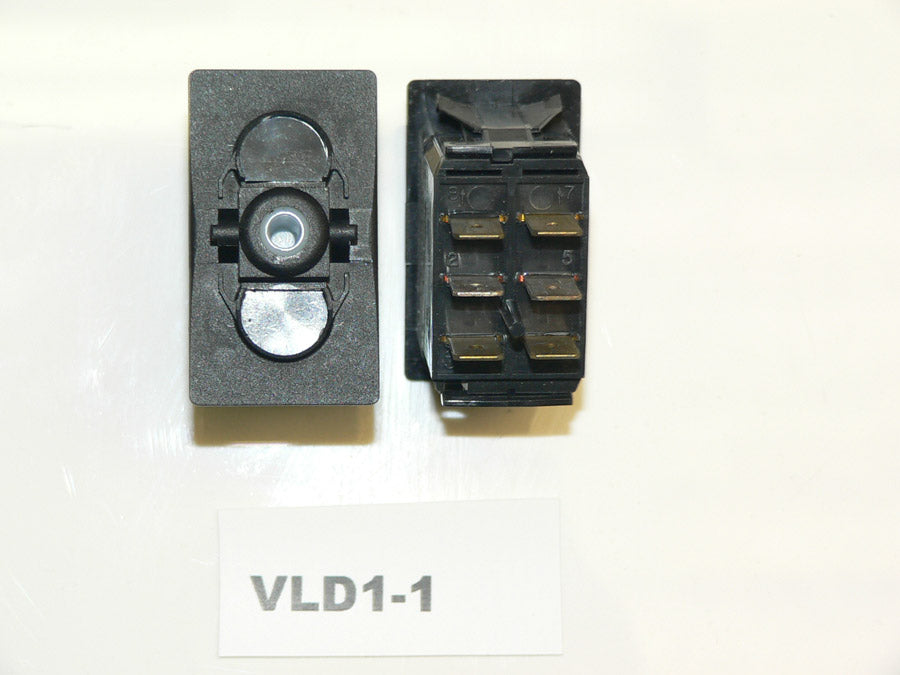

VLD1-1 Carling (ON)/OFF/(ON) Double Pole Momentary Rocker Switch no lamps. VLD1S00B Windshield Vent, Hatch Lift, Trim Tabs

ELC-008681-ASSY-B

VLD1-1 (ON)/OFF/(ON) DPDT W/ NO LAMP

Carling Contura V-Series Rocker Switch Body

This is a Switch Body Only. Actuators/Covers are sold separately.

Specifications:

FP Marine SKU: ELC-009083
Series: Contura V
Function: Momentary (ON)/OFF/(ON) DPDT
Momentary ON - OFF - Momentary ON
Double Pole
Double Throw
6 Terminals .25" spade
Lamp: N/A
*OEM Part #(s): VLD1S00B
*Sea Ray Part #(s): 757369 773879 709493 windshield vent, hatch lift, trim tabs, old part#'s 0757369, 0773879, 0709493 720086
*Substitution(s):

* Part #(s) may vary among boat models/years & are for search/reference only.

DETAILED DESCRIPTION

This is a Switch Body Only. Actuators are sold separately.
(ON)/OFF/(ON) configuration, double pole double throw. (momentary-on)/off/(momentary-on)
6 terminal; Terminals #2 and #5 are power in and the other two pairs of Terminals #3,#6 and #1,#4 are momentary power out. Terminals #3 and #6 are power out when the actuator is in the up position. Terminals #1 and #4 are power out when the actuator is in the down position.
Please see the wiring diagram included in the product photos.
At times these switches are wired differently. The important thing to remember is how the switch operates. When the bottom of the actuator is depressed, the middle two terminals make contact with the top two terminals. When the top of the actuator is depressed, the middle two terminals make contact with the bottom two terminals. As with all double pole switches, the two sides are independent of each other. So the terminals on the left side of the switch never make contact with the terminals on the right side of the switch unless you install an external jumper wire.
Common for Marine, RV, automotive, and other 12V DC applications.
Part# VLD1-1 Sea Ray part# 757369 773879 709493 windshield vent, hatch lift, trim tabs, old part#'s 0757369, 0773879, 0709493
Also replaces the old gray body switch SR part# 720086

This combination does not exist.

Internal Reference: ELC-009083
