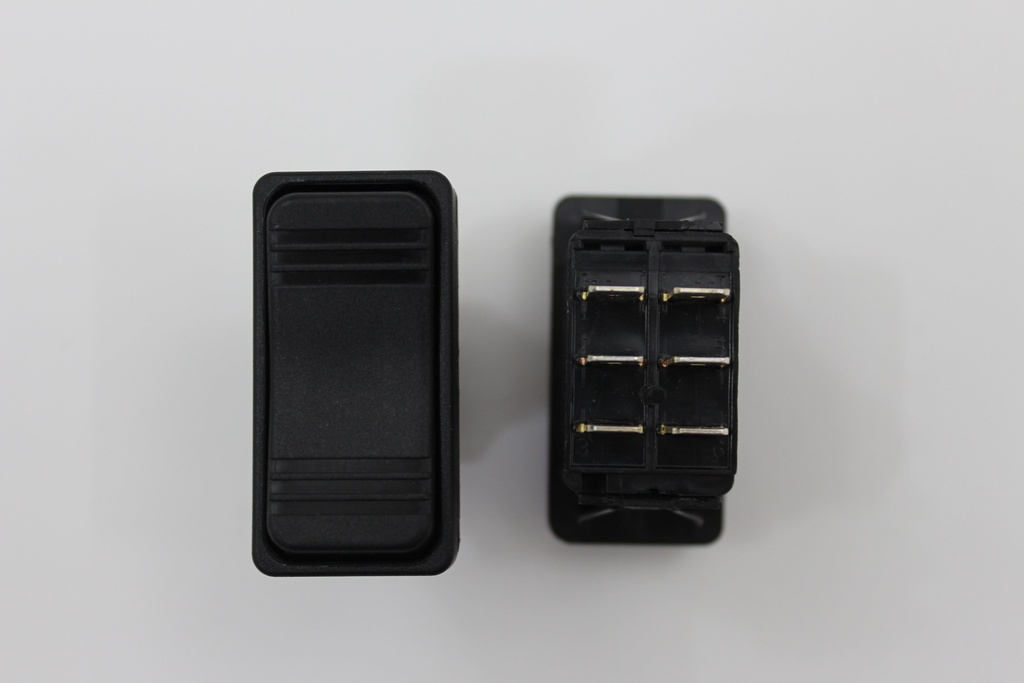

VLD1-2 Carling (ON)/OFF/(ON) double pole momentary rocker switch with raised bracket Contura X no lamps.

Web Listing Details

Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's

VLD1-2 (ON)/OFF/(ON) DPDT W/ NO LAMP

Specifications:

• FP Marine SKU: ELC-009082
• Series: Contura V

• Function:Latching (ON)/OFF/(ON) DPDT

• Lamp: N/A

• *OEM Part #(s): VLD1-2
• *Sea Ray Part #(s): # 1973654
• *Substitution(s):

* Part #(s) may vary among boat models/years & are for search/reference only.

• This Switch Body does include a built in Actuator

• (ON)/OFF/(ON) configuration, double pole double throw. momentary-on/off/momentary-on

• no lamps

• Raised Bracket with Contura X actuator prevents accidental actuation.

• 6 terminal; Terminals #2 and #5 are power in and the other two pairs of Terminals #3,#6 and #1,#4 are momentary power out. Terminals #3 and #6 are momentary power out when the actuator is in the down position. Terminals #1 and #4 are momentary power out when the actuator is in the up position. and the Switch is Off when in the middle Position.


• At times these switches are wired differently. The important thing to remember is how the switch operates. When the bottom of the actuator is depressed, the middle two terminals make contact with the top two terminals. When the top of the actuator is depressed, the middle two terminals make contact with the bottom two terminals. As with all double pole switches, the two sides are independent of each other. So the terminals on the left side of the switch never make contact with the terminals on the right side of the switch unless you install an external jumper wire.

• Common for Marine, RV, automotive, and other 12V DC applications.

• Part# VLD1-2 or substitute VLDAS001-6ZZ-000
