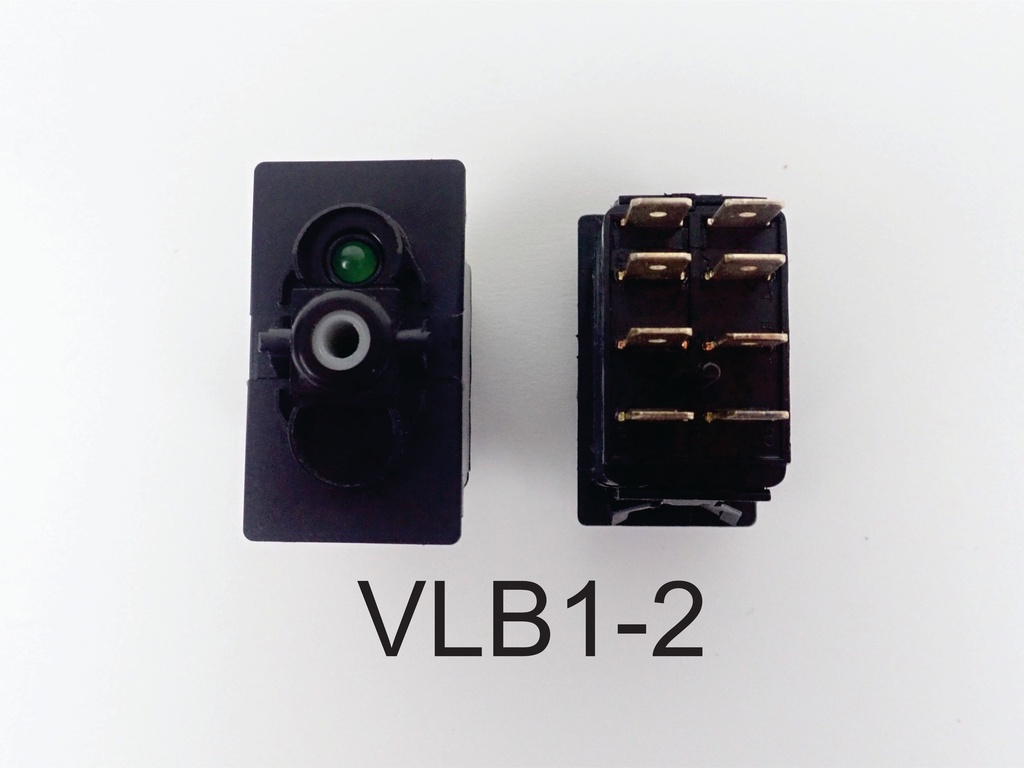

VLB1-2 Carling (ON)/OFF/(ON) double pole momentary rocker switch, Independent Green 24V lamp in pos #1
PNL-BW180VT-stg
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
VLB1-2 (ON)/OFF/(ON) DPDT W/ SINGLE 24V INDEPENDENT GREEN LAMP
Specifications:
- FP Marine SKU: ELC-009079
- Series: Contura V
- Function: Momentary (ON)/OFF/(ON) DPDT
- Lamp: Single 24V Independent Green position 1 (top),
- *OEM Part #(s): VLB1-2
- *Sea Ray Part #(s): # 1260272
- *Substitution(s):
* Part #(s) may vary among boat models/years & are for search/reference only.
-
This is a Switch Body Only. Actuators are sold separately.
-
(ON)/OFF/(ON) configuration, double pole double throw. momentary-on/off/momentary-on
- 24V green LED independent lamp in the 1 top position. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard dependent lamps that get their power internally when the actuator moves to the on position.

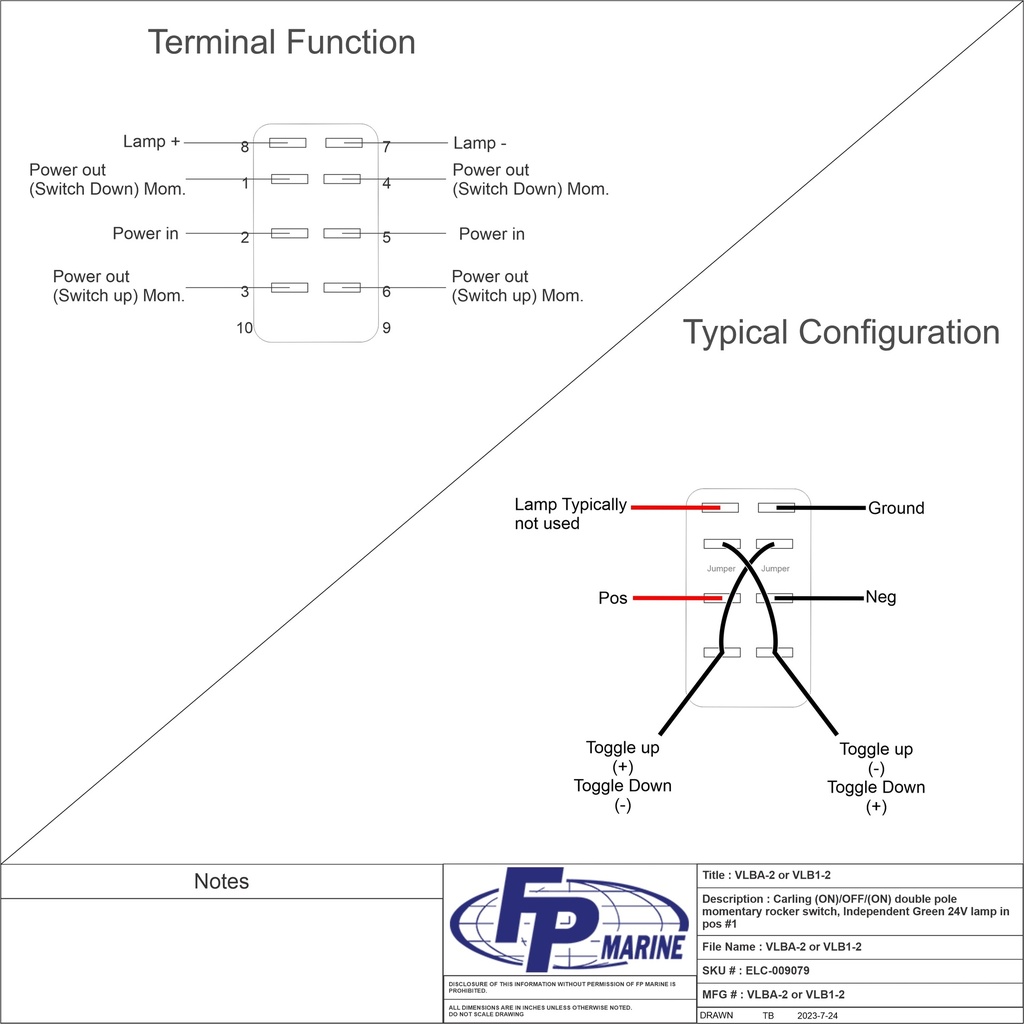

- 8 terminal; Terminals #7 and #8 are for the lamp, Terminal #7 is ground and Terminal #8 is the power. Terminals #2 and #5 are power in and the other two pairs of terminals #3,#6 and #1,#4 are power out. The switch is off when the actuator is in the middle position. Terminals #3 and #6 are momentary power out when the actuator is in the up position. Terminals #1 and #4 are momentary power out when the actuator is in the down position
- At times these switches are wired differently. The important thing to remember is how the switch operates. When the bottom of the actuator is depressed, the middle two terminals make contact with the top two (active) terminals that are side by side (ignore the very top 2 terminals for the light, for the moment) . When the top of the actuator is depressed, the middle two terminals make contact with the bottom two terminals. As with all double pole switches, the two sides are independent of each other. So the terminals on the left side of the switch never make contact with the terminals on the right side of the switch unless you install an external jumper wire.
- Common for Marine, RV, automotive, and other 12V DC applications.
- Part# VLB1-2 Sea Ray part - This switch is Functionally the same as a VLBA-2 switch the Difference is that the VLBA-2 Switch has Plastic Barriers separating the Terminals
Product Overview
VLB1 2 Carling (ON)/OFF/(ON) double pole momentary rocker switch, Independent Green 24V lamp in pos #1 is a reliable choice when you want a clean install and consistent switching performance. It is commonly used for indicator and control circuits. This is a updated option for customers refreshing an older setup. It is a expert marine replacement part. It is built to be built to last and finished to a high quality standard. If you want help confirming fitment or wiring, our service team is helpful. You will speak with personable real people with real experience.
Specifications and Details
Web Listing Details
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
VLB1-2 (ON)/OFF/(ON) DPDT W/ SINGLE 24V INDEPENDENT GREEN LAMP
Specifications:
- FP Marine SKU: ELC-009079
- Series: Contura V
- Function: Momentary (ON)/OFF/(ON) DPDT
- Lamp: Single 24V Independent Green position 1 (top),
- *OEM Part #(s): VLB1-2
- *Sea Ray Part #(s): # 1260272
- *Substitution(s):
* Part #(s) may vary among boat models/years & are for search/reference only.
-
This is a Switch Body Only. Actuators are sold separately.
-
(ON)/OFF/(ON) configuration, double pole double throw. momentary-on/off/momentary-on
- 24V green LED independent lamp in the 1 top position. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard dependent lamps that get their power internally when the actuator moves to the on position.
- 8 terminal; Terminals #7 and #8 are for the lamp, Terminal #7 is ground and Terminal #8 is the power. Terminals #2 and #5 are power in and the other two pairs of terminals #3,#6 and #1,#4 are power out. The switch is off when the actuator is in the middle position. Terminals #3 and #6 are momentary power out when the actuator is in the up position. Terminals #1 and #4 are momentary power out when the actuator is in the down position
- At times these switches are wired differently. The important thing to remember is how the switch operates. When the bottom of the actuator is depressed, the middle two terminals make contact with the top two (active) terminals that are side by side (ignore the very top 2 terminals for the light, for the moment) . When the top of the actuator is depressed, the middle two terminals make contact with the bottom two terminals. As with all double pole switches, the two sides are independent of each other. So the terminals on the left side of the switch never make contact with the terminals on the right side of the switch unless you install an external jumper wire.
- Common for Marine, RV, automotive, and other 12V DC applications.
- Part# VLB1-2 Sea Ray part - This switch is Functionally the same as a VLBA-2 switch the Difference is that the VLBA-2 Switch has Plastic Barriers separating the Terminals
Fitment and Ordering Support
In marine electrical service work, VLB1 2 Carling (ON)/OFF/(ON) double pole momentary rocker switch, Independent Green 24V lamp in pos #1 supports indicator and control circuits. It is typically selected when you need a dependable replacement that performs well in marine conditions and delivers a high quality result. Before ordering, confirm the switch function and terminals, then compare photos and specifications to what is installed now. If anything is unclear, our support team is responsive. You will reach personable real people with real experience who can help confirm the right part.
