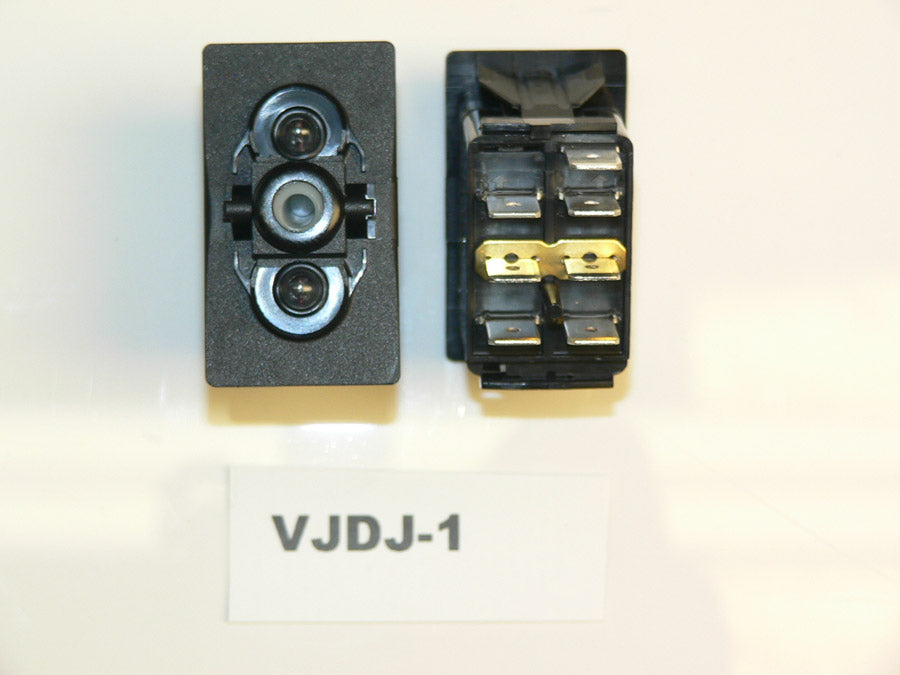

VJDJ-1 Carling ON/OFF/ON double pole rocker switch with jumper and two lamps
PNL-BW180VT-stg
- Carling Part# VJDJD66B-00000-000
This is a Switch Body Only. Actuators are sold separately. - ON/OFF/ON configuration, double pole double throw
- Two lamps
- 7 terminal; The top right terminal is the ground for the lamps. The middle terminals are power "in" and they have an external jumper installed so only one power wire will be required to power both sides of the switch. The other two pairs of terminals are power "out". The switch is "off" when the actuator is in the middle position. At times these switches are wired differently. The important thing to remember is how the switch operates. When the bottom of the actuator is depressed, the middle two terminals make contact with the top two terminals. When the top of the actuator is depressed, the middle two terminals make contact with the bottom two terminals. As with all double pole switches, the two sides are independent of each other. So the terminals on the left side of the switch never make contact with the terminals on the right side of the switch unless you install an external jumper, which in this case is supplied for the middle terminals only.
- Common for Marine, RV, automotive, and other 12V DC applications.
- Commonly used for navigation lights
For instructional videos, please visit our YouTube channel:
www.youtube.com/fpmarine
Product Overview
VJDJ 1 Carling ON/OFF/ON double pole rocker switch with jumper and two lamps is a trusted choice when you want a clean install and consistent switching performance. It is commonly used for indicator and control circuits. This is a updated option for customers refreshing an older setup. It is a pro grade marine replacement part. It is built to be built to last and finished to a high quality standard. If you want help confirming fitment or wiring, our support team is supportive. You will speak with easy to work with real people with real know how.
Specifications and Details
Web Listing Details
- Carling Part# VJDJD66B-00000-000
This is a Switch Body Only. Actuators are sold separately. - ON/OFF/ON configuration, double pole double throw
- Two lamps
- 7 terminal; The top right terminal is the ground for the lamps. The middle terminals are power "in" and they have an external jumper installed so only one power wire will be required to power both sides of the switch. The other two pairs of terminals are power "out". The switch is "off" when the actuator is in the middle position. At times these switches are wired differently. The important thing to remember is how the switch operates. When the bottom of the actuator is depressed, the middle two terminals make contact with the top two terminals. When the top of the actuator is depressed, the middle two terminals make contact with the bottom two terminals. As with all double pole switches, the two sides are independent of each other. So the terminals on the left side of the switch never make contact with the terminals on the right side of the switch unless you install an external jumper, which in this case is supplied for the middle terminals only.
- Common for Marine, RV, automotive, and other 12V DC applications.
- Commonly used for navigation lights
For instructional videos, please visit our YouTube channel:
www.youtube.com/fpmarine
Fitment and Ordering Support
VJDJ 1 Carling ON/OFF/ON double pole rocker switch with jumper and two lamps is commonly used for indicator and control circuits. It is typically selected when you need a dependable replacement that performs well in marine conditions and delivers a quality result. Before ordering, confirm the switch function and terminals, then compare photos and specifications to what is installed now. If anything is unclear, our service team is supportive. You will reach easy to work with human support with real hands on expertise who can help confirm the right part.
