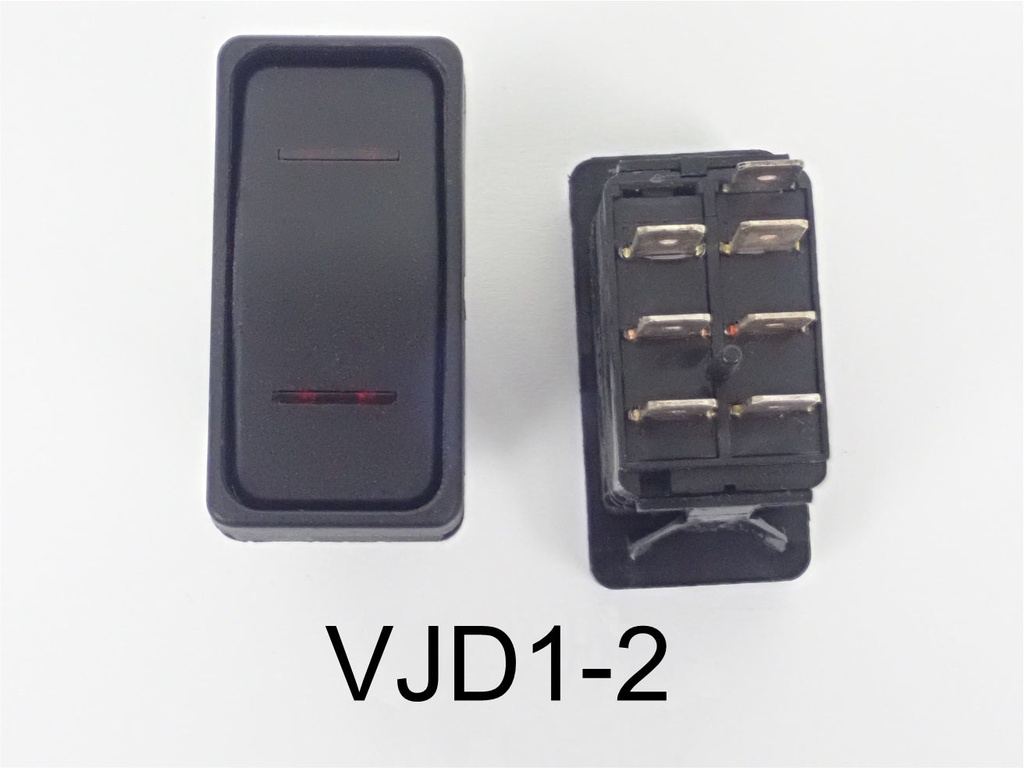

VJD1-2 Carling ON/OFF/ON double pole rocker switch with Raised Bracket and two lamps
PNL-BW180VT-stg
-
Carling Part # VJD1D661-6PP00-000
This switch is a raised bracket style with Contura X actuator to prevent accidental actuation of the switch -
ON/OFF/ON configuration, double pole double throw
- Two lamps, actuator included with two red lenses.
- 7 terminal; The top right terminal is the ground for the lamps. The middle terminals are power "in" The other two pairs of terminals are power "out". The switch is "off" when the actuator is in the middle position. At times these switches are wired differently. The important thing to remember is how the switch operates. When the bottom of the actuator is depressed, the middle two terminals make contact with the top two terminals. When the top of the actuator is depressed, the middle two terminals make contact with the bottom two terminals. As with all double pole switches, the two sides are independent of each other. So the terminals on the left side of the switch never make contact with the terminals on the right side of the switch unless you install an external jumper wire.
- Common for Marine, RV, automotive, and other 12V DC applications.
- Part# VJD1-2 Commonly used for navigation lights
Product Overview
If you are replacing a worn switch, VJD1 2 Carling ON/OFF/ON double pole rocker switch with Raised Bracket and two lamps is a dependable option that helps you finish the job without extra hassle. It is commonly used for indicator and control circuits. It is a expert marine replacement part. It is built to be durable and finished to a high quality standard. If you want help confirming fitment or wiring, our customer service is responsive. You will speak with friendly real people with real hands on expertise.
Specifications and Details
Web Listing Details
-
Carling Part # VJD1D661-6PP00-000
This switch is a raised bracket style with Contura X actuator to prevent accidental actuation of the switch -
ON/OFF/ON configuration, double pole double throw
- Two lamps, actuator included with two red lenses.
- 7 terminal; The top right terminal is the ground for the lamps. The middle terminals are power "in" The other two pairs of terminals are power "out". The switch is "off" when the actuator is in the middle position. At times these switches are wired differently. The important thing to remember is how the switch operates. When the bottom of the actuator is depressed, the middle two terminals make contact with the top two terminals. When the top of the actuator is depressed, the middle two terminals make contact with the bottom two terminals. As with all double pole switches, the two sides are independent of each other. So the terminals on the left side of the switch never make contact with the terminals on the right side of the switch unless you install an external jumper wire.
- Common for Marine, RV, automotive, and other 12V DC applications.
- Part# VJD1-2 Commonly used for navigation lights
Fitment and Ordering Support
Customers use VJD1 2 Carling ON/OFF/ON double pole rocker switch with Raised Bracket and two lamps for indicator and control circuits in many marine setups. It is typically selected when you need a dependable replacement that performs well in marine conditions and delivers a premium result. Before ordering, confirm the switch function and terminals, then compare photos and specifications to what is installed now. If anything is unclear, our support team is supportive. You will reach easy to work with people first support with real know how who can help confirm the right part.
Internal Reference:
ELC-009071
