VHB2-1 Carling rocker switch On/On/On with 24V amber lamps
PNL-BW180VT-stg
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's

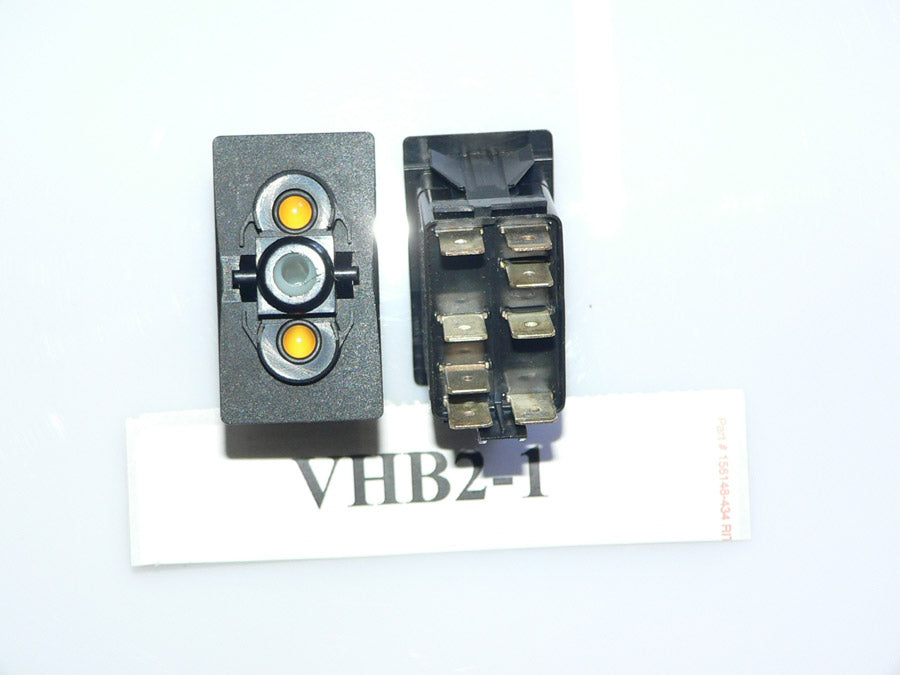

VHB2-1 ON/ON/ON DPST W/ DOUBLE 24V INDEPENDENT AMBER LAMPS
Specifications:
- FP Marine SKU:ELC-009070
- Series: Contura V
- Function:Latching ON/ON/ON DPST
- Lamp: Double 24V Independent Amber position 1 (top), Independent Amber position 2 (bottom)
- *OEM Part #(s): VHB2-1
- *Sea Ray Part #(s):
- *Substitution(s):
* Part #(s) may vary among boat models/years & are for search/reference only.
-
This is a Switch Body Only. Actuators are sold separately.
-

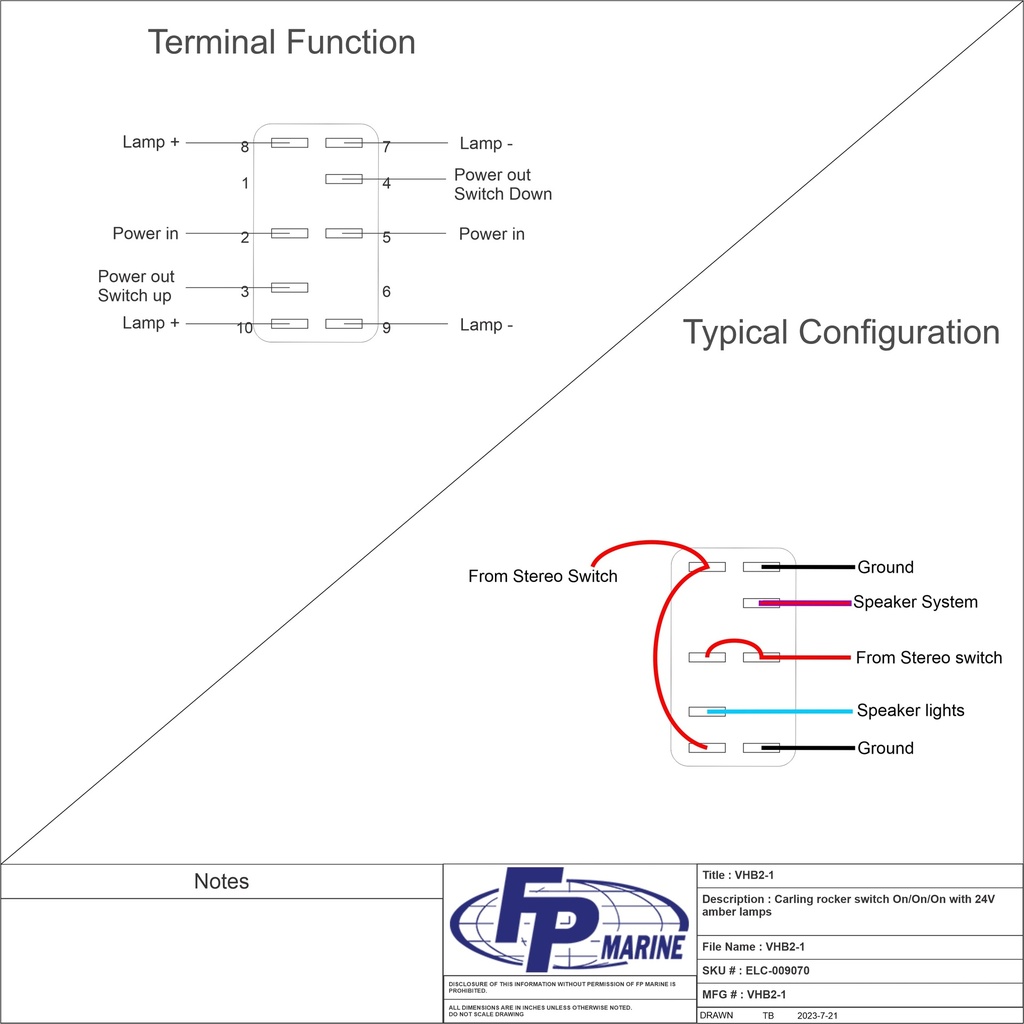

ON/ON/ON configuration. Terminals connected at each actuator position: 2&3 / 2&3, 4&5 / 4&5
- 24V Amber Independent LED lamps. Lamp in 1 position top is wired to terminal #7 Ground and #8 power. Lamp in 2 position bottom is wired to terminal #9 Ground and #10 Power.
- Independent lamps are illuminated independently of actuator position. Independent lamps have both a negative terminal and a positive terminal that must be wired externally to illuminate. If you want an independent lamp to illuminate when the actuator is in a particular position, you have to run a jumper wire from a terminal activated by the actuator position (like #3 or #4) to a power terminal for one of the lamps (like #8 or #10) ....watch the videos!!
Product Overview
If you are replacing a worn switch, VHB2 1 Carling rocker switch On/On/On with 24V amber lamps is a reliable option that helps you finish the job without extra hassle. It is commonly used for indicator and control circuits. This is a updated option for customers refreshing an older setup. It is a expert marine replacement part. It is built to be built to last and finished to a high quality standard. If you want help confirming fitment or wiring, our support team is supportive. You will speak with personable human support with real know how.
Specifications and Details
Web Listing Details
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
VHB2-1 ON/ON/ON DPST W/ DOUBLE 24V INDEPENDENT AMBER LAMPS
Specifications:
- FP Marine SKU:ELC-009070
- Series: Contura V
- Function:Latching ON/ON/ON DPST
- Lamp: Double 24V Independent Amber position 1 (top), Independent Amber position 2 (bottom)
- *OEM Part #(s): VHB2-1
- *Sea Ray Part #(s):
- *Substitution(s):
* Part #(s) may vary among boat models/years & are for search/reference only.
-
This is a Switch Body Only. Actuators are sold separately.
-
ON/ON/ON configuration. Terminals connected at each actuator position: 2&3 / 2&3, 4&5 / 4&5
- 24V Amber Independent LED lamps. Lamp in 1 position top is wired to terminal #7 Ground and #8 power. Lamp in 2 position bottom is wired to terminal #9 Ground and #10 Power.
- Independent lamps are illuminated independently of actuator position. Independent lamps have both a negative terminal and a positive terminal that must be wired externally to illuminate. If you want an independent lamp to illuminate when the actuator is in a particular position, you have to run a jumper wire from a terminal activated by the actuator position (like #3 or #4) to a power terminal for one of the lamps (like #8 or #10) ....watch the videos!!
Fitment and Ordering Support
In marine electrical service work, VHB2 1 Carling rocker switch On/On/On with 24V amber lamps supports indicator and control circuits. It is typically selected when you need a reliable replacement that performs well in marine conditions and delivers a quality result. Before ordering, confirm the switch function and terminals, then compare photos and specifications to what is installed now. If anything is unclear, our support team is supportive. You will reach personable human support with real experience who can help confirm the right part.
Internal Reference:
ELC-009070
