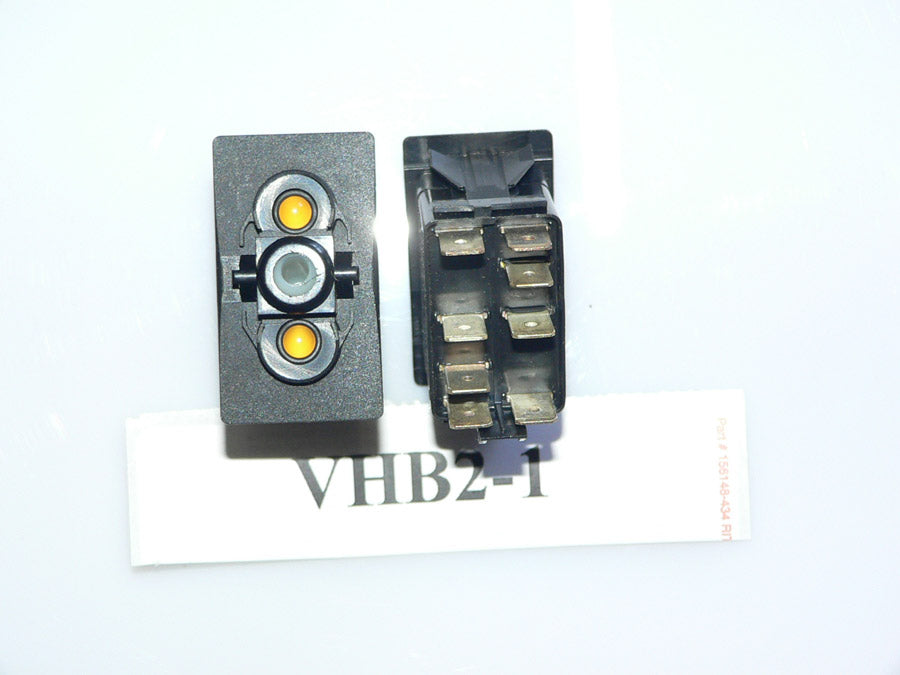

VHB2-1 Carling rocker switch On/On/On with 24V amber lamps

Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's

VHB2-1 ON/ON/ON DPST W/ DOUBLE 24V INDEPENDENT AMBER LAMPS

Specifications:

• FP Marine SKU:ELC-009070
• Series: Contura V

• Function:Latching ON/ON/ON DPST

• Lamp: Double 24V Independent Amber position 1 (top), Independent Amber position 2 (bottom)

• *OEM Part #(s): VHB2-1
• *Sea Ray Part #(s):
• *Substitution(s):

* Part #(s) may vary among boat models/years & are for search/reference only.

• This is a Switch Body Only. Actuators are sold separately.

• ON/ON/ON configuration. Terminals connected at each actuator position: 2&3 / 2&3, 4&5 / 4&5

• 24V Amber Independent LED lamps. Lamp in 1 position top is wired to terminal #7 Ground and #8 power. Lamp in 2 position bottom is wired to terminal #9 Ground and #10 Power.

• Independent lamps are illuminated independently of actuator position. Independent lamps have both a negative terminal and a positive terminal that must be wired externally to illuminate. If you want an independent lamp to illuminate when the actuator is in a particular position, you have to run a jumper wire from a terminal activated by the actuator position (like #3 or #4) to a power terminal for one of the lamps (like #8 or #10) ....watch the videos!!
